DENOMINAZIONE MODEL
SERIE CA
VERSIONS
CA70/33
CA70/34
CA70/45
CA120/33
CA120/35
CA120/55
CA200/33
CA200/35
CA200/55
ca-caN-en_a_mo

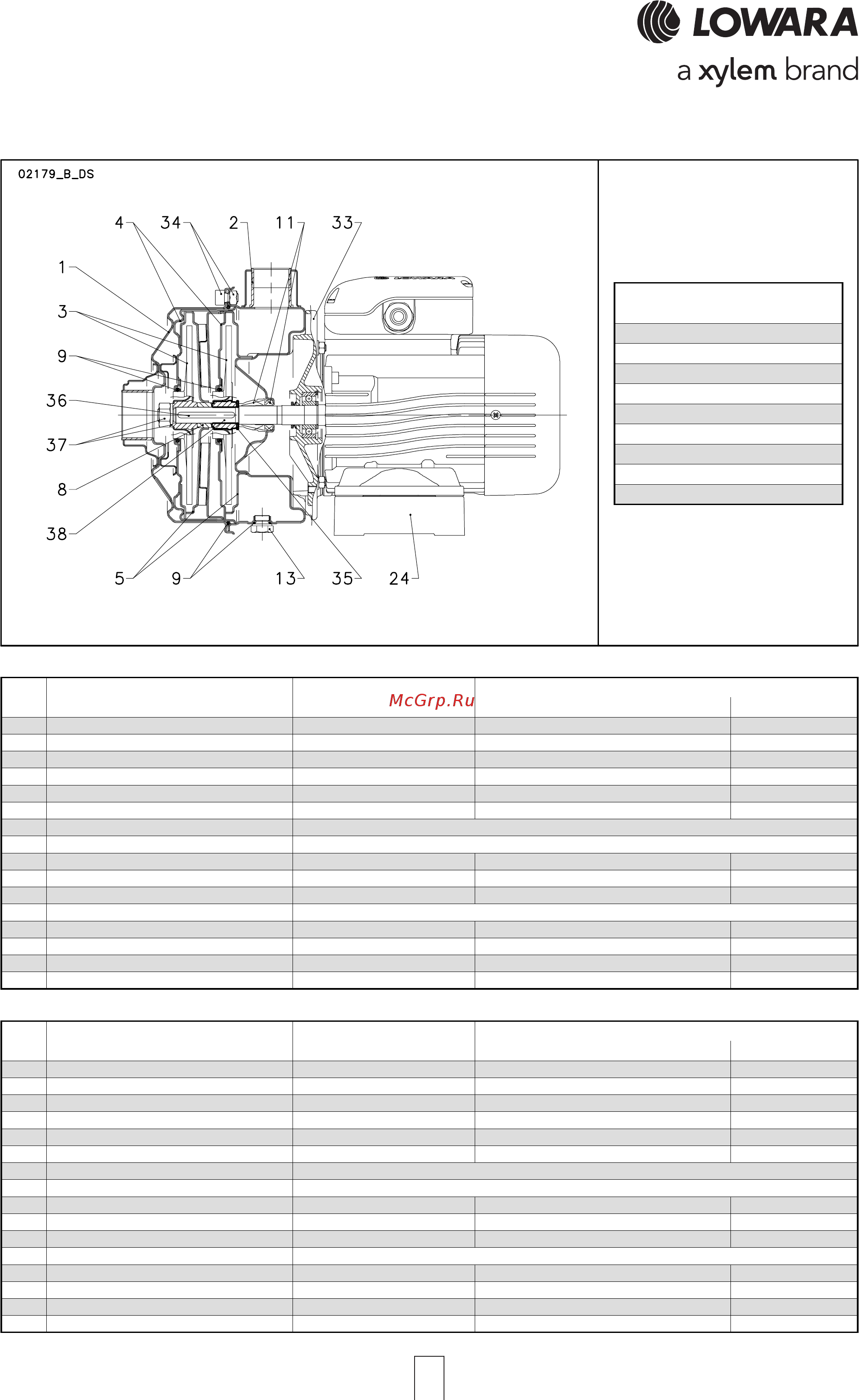

MATERIALI CA70-CA120-CA200
REF. PART MATERIAL
N. EUROPE USA
1 Suction flange Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
2 Pump bod
y
Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
3 Impelle
r
Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
4 Diffuser cove
r
Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
5 Diffuser cove
r
Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
8 Impeller space
r
Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
9 Elastomers
11 Mechanical seal
13 Fill/drain plugs Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
24 Mounting pedestal Aluminium EN 1706-AC-AlSi11Cu2 (Fe) (AC46100) -
33 Adapter Aluminium EN 1706-AC-AlSi11Cu2 (Fe) (AC46100) -
34 Pump body fastening nuts and bolts
35 Impeller shoulder washe
r
Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
36 Ke
y
Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
37 Impeller lock nut and washe
r
Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
38 Shaft extension Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
ca-ca-en_b_tm
Zinc-plated steel
REFERENCE STANDARDS
NBR (standard version)
Ceramic / Carbon / NBR (standard version)
MATERIALI CA70N-CA120N-CA200N
REF. PART MATERIAL
N. EUROPE USA
1 Suction flange Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
2 Pump bod
y
Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
3 Impelle
r
Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
4 Diffuser cove
r
Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
5 Diffuser Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
8 Impeller space
r
Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
9 Elastomers
11 Mechanical seal
13 Fill/drain plugs Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
24 Mounting pedestal Aluminium EN 1706-AC-AlSi11Cu2 (Fe) (AC46100) -
33 Adapter Aluminium EN 1706-AC-AlSi11Cu2 (Fe) (AC46100) -
34 Pump body fastening nuts and bolts
35 Impeller shoulder washe
r
Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
36 Ke
y
Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
37 Impeller lock nut and washe
r
Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
38 Shaft extension Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
ca-caN-en_a_tm
Zinc-plated steel
REFERENCE STANDARDS
EPDM (standard version)
Ceramic / Carbon / EPDM (standard version)
CA SERIES TCA SERIES T
CA SERIES TCA SERIES T
CA SERIES T
ABLE OF MAABLE OF MA
ABLE OF MAABLE OF MA
ABLE OF MA
TERIALSTERIALS
TERIALSTERIALS
TERIALS
CA(N) SERIES TCA(N) SERIES T
CA(N) SERIES TCA(N) SERIES T
CA(N) SERIES T
ABLE OF MAABLE OF MA
ABLE OF MAABLE OF MA
ABLE OF MA
TERIALSTERIALS
TERIALSTERIALS
TERIALS
