7
CEA - CEA(N) SERIESCEA - CEA(N) SERIES
CEA - CEA(N) SERIESCEA - CEA(N) SERIES
CEA - CEA(N) SERIES
LIST OF MODELS AND TLIST OF MODELS AND T
LIST OF MODELS AND TLIST OF MODELS AND T
LIST OF MODELS AND T
ABLE OF MAABLE OF MA
ABLE OF MAABLE OF MA
ABLE OF MA
TERIALSTERIALS
TERIALSTERIALS
TERIALS
DENOMINAZIONE MODEL
SERIE CEA
VERSIONS
CEA70/3
CEA70/5
CEA80/5
CEA120/3
CEA120/5
CEA210/2
CEA210/3
CEA210/4
CEA210/5
CEA370/1
CEA370/2
CEA370/3
CEA370/5
cea-ceaN-en_a_mo

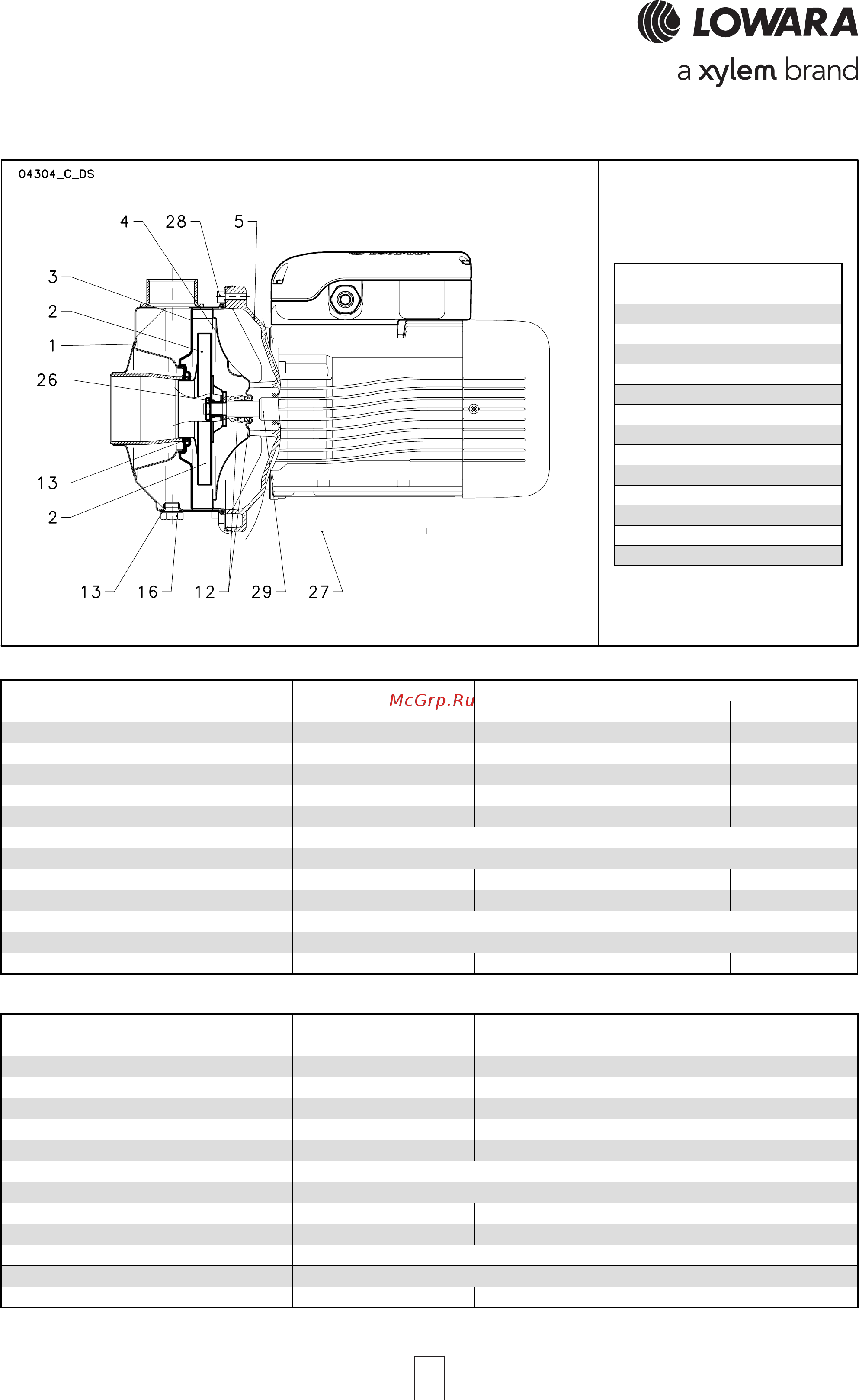

MATERIALI CEA70-CEA80-CEA120-CEA210-CEA370
REF. PART MATERIAL
N. EUROPE USA
1 Pump body Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
2 Impeller Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
3 Diffuser Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
4 Seal housing Stainless steel EN 10088-1-X5CrNi18-10 (1.4301) AISI 304
5 Adapter Aluminium EN 1706-AC-AlSi11Cu2 (Fe) (AC46100) -
12 Mechanical seal
13 Elastomers
16 Fill/drain plugs Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
26 Impeller lock nut Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
27 Mounting pedestal
28 Pump body fastening nuts and bolts
29 Shaft extension Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
cea-cea-en_b_tm
REFERENCE STANDARDS
NBR (standard version)
Ceramic / Carbon / NBR (standard version)
Zinc-plated steel
Painted steel
MATERIALI CEA70N-CEA80N-CEA120N-CEA210N-CEA370N
REF. PART MATERIAL
N. EUROPE USA
1 Pump body Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
2 Impeller Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
3 Diffuser Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
4 Seal housing Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
5 Adapter Aluminium EN 1706-AC-AlSi11Cu2 (Fe) (AC46100) -
12 Mechanical seal
13 Elastomers
16 Fill/drain plugs Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
26 Impeller lock nut Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
27 Mounting pedestal
28 Pump body fastening nuts and bolts
29 Shaft extension Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
cea-ceaN-en_a_tm
REFERENCE STANDARDS
EPDM
Ceramic / Carbon /EPDM
Zinc-plated
Painted steel
CEA SERIES TCEA SERIES T
CEA SERIES TCEA SERIES T
CEA SERIES T
ABLE OF MAABLE OF MA
ABLE OF MAABLE OF MA
ABLE OF MA
TERIALSTERIALS
TERIALSTERIALS
TERIALS
CEA(N) SERIES TCEA(N) SERIES T
CEA(N) SERIES TCEA(N) SERIES T
CEA(N) SERIES T
ABLE OF MAABLE OF MA
ABLE OF MAABLE OF MA
ABLE OF MA
TERIALSTERIALS
TERIALSTERIALS
TERIALS
