WATER REQUIREMENTS FOR COMMUNITY BUILDINGS
For seaside resorts, the flow rate must be increased by at least 20%.
1= Offices (N. of people)
2= Department stores (N. of people)
3= Nursing homes (N. of beds)
4= Hotels, residences (N. of beds)
The requirements of buildings intended for specific uses, such as offices, residential units, hotels, de-
partment stores, nursing homes and so on, are different from those of condominiums, and both their
global daily water consumption and the maximum contemporaneity flow rate are usually greater. The diagram

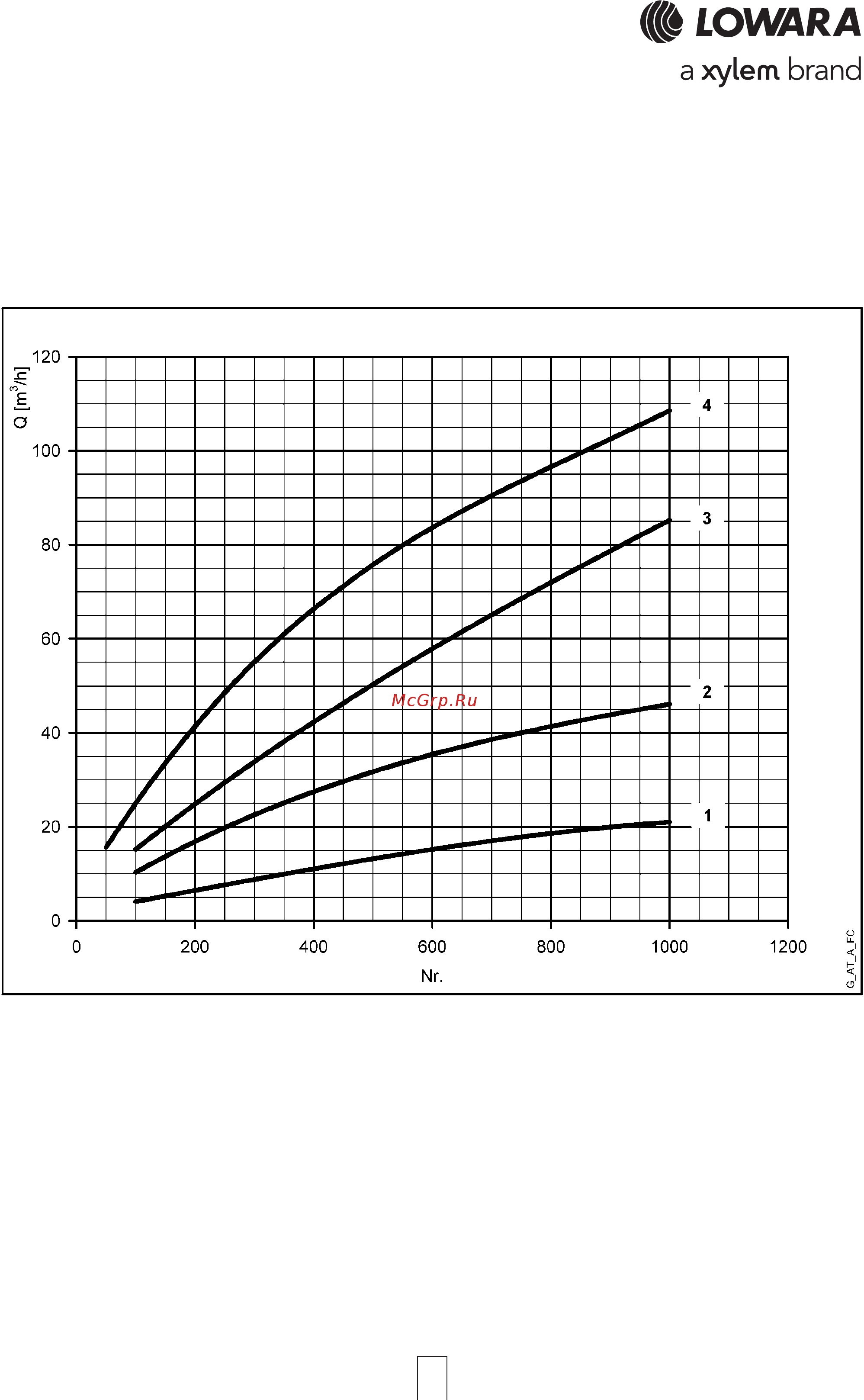

of water requirements for community buildings shows the maximum contemporaneity flow rate of
some types of communities, for guidance.
These requirements must be determined case by case with the utmost accuracy, using analytical calculation meth-
ods, according to particular needs and local provisions.
