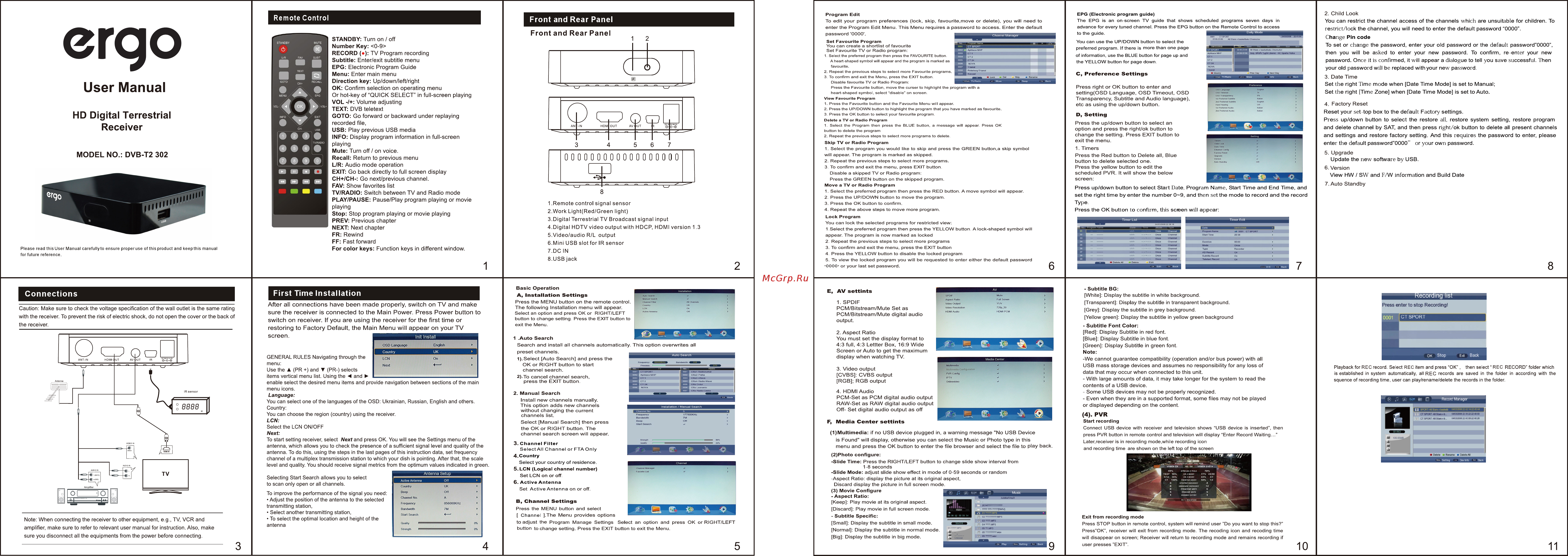

ergo User Manual HD Digital Terrestrial Receiver MODEL NO DVB T2 302 Please read this User Manual carefullyto ensure properuse of this product and keepthis manual for future reference Connections Caution Make sure to check the voltage specification of the wall outlet is the same rating with the receiver To prevent the risk of electric shock do not open the cover or the back of the receiver Remote Control Front and Rear Panel STANDBY Turn on I off Number Key 0 9 RECORD TV Program recording Subtitle Enter exit subtitle menu EPG Electronic Program Guide Menu Enter main menu Direction key Up down left right OK Confirm selection on operating menu Or hot key of QUICK SELECT in full screen playing VOL Volume adjusting TEXT DVB teletext GOTO Go forward or backward under replaying recorded file USB Play previous USB media INFO Display program information in full screen playing Mute Turn off on voice Recall Return to previous menu L R Audio mode operation EXIT Go back directly to full screen display CH CH Go next previous channel FAV Show favorites list TV RADIO Switch between TV and Radio mode PLAY PAUSE Pause Play program playing or movie playing Stop Stop program playing or movie playing PREV Previous chapter NEXT Next chapter FR Rewind FF Fast forward For color keys Function keys in different window After all connections have been made properly switch oh TV and make sure the receiver is connected to the Main Power Press Power button to switch on receiver If you are using the receiver for the first time or restoring to Factory Default the Main Menu will appear on your TV screen GENERAL RULES Navigating through the menu Use the PR and PR selects items vertical menu list Using the and enable select the desired menu items and provide navigation between sections of the main menu icons Language You can select one of the languages of the OSD Ukrainian Russian English and others Country You can choose the region country using the receiver LCN Select the LCN ON OFF Next To start setting receiver select Next and press OK You will see the Settings menu of the antenna which allows you to check the presence of a sufficient signal level and quality of the antenna To do this using the steps in the last pages of this instruction data set frequency channel of a multiplex transmission station to which your dish is pointing After that the scale level and quality You should receive signal metrics from the optimum values indicated in green Selecting Start Search allows you to select to scan only open or all channels 1 Remote control signal sensor 3 Digital Terrestrial TV Broadcast signal input 4 Digital HDTV video output with HDCP HDMI version 1 3 5 Video audio R L output 6 Mini USB slot for IR sensor 7 DC IN 2 Basic Operation F Media Center settints l Multimedia if no USB device plugged in a warning message No USB Device is Found will display otherwise you can select the Music or Photo type in this menu and press the OK button to enter the file browser and select the file to play back Select All Channel or FTAOnly that shows scheduled programs seven days 2 Child Look You can restrict the channel access of the channels which are unsuitable for children To in restrict lock the channel you will need to enter the default password 0000 Change Pin code To set or change the password enter your old password or the default password 0000 then you will be asked to enter your new password To confirm re enter your new of information use the BLUE button for page up and password Once it is confirmed it will appear a dialogue to tell you save successful Then your old password will be replaced with your new password the YELLOW button for page down C Preference Settings 3 Date Time Set the right Time mode when Date Time Mode is set to Manual Press right or OK button to enter and setting OSD Language OSD Timeout OSD Transparency Subtitle and Audio language etc as using the up down button Set the right Time Zone when Date Time Mode is set to Auto 4 Factory Reset Reset your set top box to the default Factory settings D Setting Press up down button to select the restore all restore system setting restore program Press the up down button to select an option and press the right ok button to change the setting Press EXIT button to and delete channel by SAT and then press right ok button to delete all present channels and settings and restore factory setting And this requires the password to enter please enter the default password 0000 or your own password exit the menu 1 Timers Press the Red button to Delete all Blue button to delete selected one Press the yellow button to edit the scheduled PVR It will show the below screen 5 Upgrade Update the new software by USB 6 Version View HW I SW and F W information and Build Date Press up down button to select Start Date Program Name Start Time and End Time and set the right time by enter the number 0 9 and then set the mode to record and the record Type Press the OK button to confirm this screen will appear Subtitle BG White Display the subtitle in white background Recording Iis1 Transparent Display the subtitle in transparent background Grey Display the subtitle in grey background Yellow green Display the subtitle in yellow green background Press enter to stop Recording Subtitle Font Color Red Display Subtitle in red font Blue Display Subtitle in blue font Green Display Subtitle in green font Note We cannot guarantee compatibility operation and or bus power with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit With large amounts of data it may take longer for the system to read the contents of a USB device Some USB devices may not be properly recognized Even when they are in a supported format some files may not be played or displayed depending on the content Playback for REC record Select REC item and press OK then select REC RECORD folder which is established in system automatically all REC records are saved in the folder in according with the squence of recording time user can play rename delete the records in the folder 4 PVR Start recording Connect USB device with receiver and television shows USB device is inserted then press PVR button in remote control and television will display Enter Record Waiting Later receiver is in recording mode while recording icon and recording time are shown on the left top of the screen 2 Photo configure Slide Time Press the RIGHT LEFT button to change slide show interval from 1 8 seconds Slide Mode adjust slide show effect in mode of 0 59 seconds or random Aspect Ratio display the picture at its original aspect Discard display the picture in full screen mode 3 Movie Configure Aspect Ratio Keep Play movie at its original aspect Discard Play movie in full screen mode 4 Country Select your country of residence 5 LCN Logical channel number Set LCN on or off 6 Active Antenna B Channel Settings Press the MENU button and select Channel The Menu provides options Subtitle Specific Small Display the subtitle in small mode Normal Display the subtitle in normal mode Big Display the subtitle in big mode to adjust the Program Manage Settings Select an option and press OK or RIGHT LEFT button to change setting Press the EXIT button to exit the Menu 5 7 Auto Standby Lock Program You can lock the selected programs for restricted view 1 Select the preferred program then press the YELLOW button A lock shaped symbol will appear The program is now marked as locked 2 Repeat the previous steps to select more programs 3 To confirm and exit the menu press the EXIT button 4 Press the YELLOW button to disable the locked program 5 To view the locked program you will be requested to enter either the default password 0000 or your last set password 4 HDMI Audio PCM Set as PCM digital audio output RAW Set as RAW digital audio output Off Set digital audio output as off 3 Channel Filter guide You can use the UP DOWN button to select the preferred program If there is more than one page 3 Video output CVBS CVBS output RGB RGB output 2 Manual Search Install new channels manually This option adds new channels without changing the current channels list Select Manual Search then press the OK or RIGHT button The channel search screen will appear TV Set Favourite Program You can create a shortlist of favourite Set Favourite TV or Radio program 2 Aspect Ratio You must set the display format to 4 3 full 4 3 Lettter Box 16 9 Wide Screen or Auto to get the maximum display when watching TV 1 Auto Search Search and install all channels automatically This option overwrites all preset channels 1 Select Auto Search and press the OK or RIGHT button to start channel search 2 To cancel channel search press the EXIT button on screen advance for every tuned channel Press the EPG button on the Remote Control to access 1 SPDIF PCM Bitstream Mute Set as PCM Bitstream Mute digital audio output Select an option and press OK or RIGHT LEFT button to change setting Press the EXIT button to exit the Menu an to the guide E AV settints A Installation Settings Press the MENU button on the remote control The following Installation menu will appear is password 0000 Skip TV or Radio Program 1 Select the program you would like to skip and press the GREEN button a skip symbol will appear The program is marked as skipped 2 Repeat the previous steps to select more programs 3 To confirm and exit the menu press EXIT button Disable a skipped TV or Radio program Press the GREEN button on the skipped program Move a TV or Radio Program 1 Select the preferred program then press the RED button A move symbol will appear 2 Press the UP DOWN button to move the program 3 Press the OK button to confirm 4 Repeat the above steps to move more program 2 Work Light Red Green light EPG enter the Program Edit Menu This Menu requires a password to access Enter the default Delete a TV or Radio Program 1 Select the Program then press the BLUE button a message will appear Press OK button to delete the program 2 Repeat the previous steps to select more programs to delete Set Active Antenna on or off To improve the performance of the signal you need Adjust the position of the antenna to the selected transmitting station Select another transmitting station To select the optimal location and height of the antenna EPG Electronic program guide The 1 Select the preferred program then press the FAVOURITE button A heart shaped symbol will appear and the program is marked as favourite 2 Repeat the previous steps to select more Favourite programs 3 To confirm and exit the Menu press the EXIT button Disable favourite TV or Radio Program Press the Favourite button move the curser to highlight the program with a heart shaped symbol select disable on screen View Favourite Program 1 Press the Favourite button and the Favourite Menu will appear 2 Press the UP DOWN button to highlight the program that you have marked as favourite 3 Press the OK button to select your favourite program 8 USB jack First Time Installation Program Edit To edit your program preferences lock skip favourite move or delete you will need to Exit from recording mode Press STOP button in remote control system will remind user Do you want to stop this Press OK receiver will exit from recording mode The recoding icon and recoding time will disappear on screen Receiver will return to recording mode and remains recording if user presses EXIT 10
