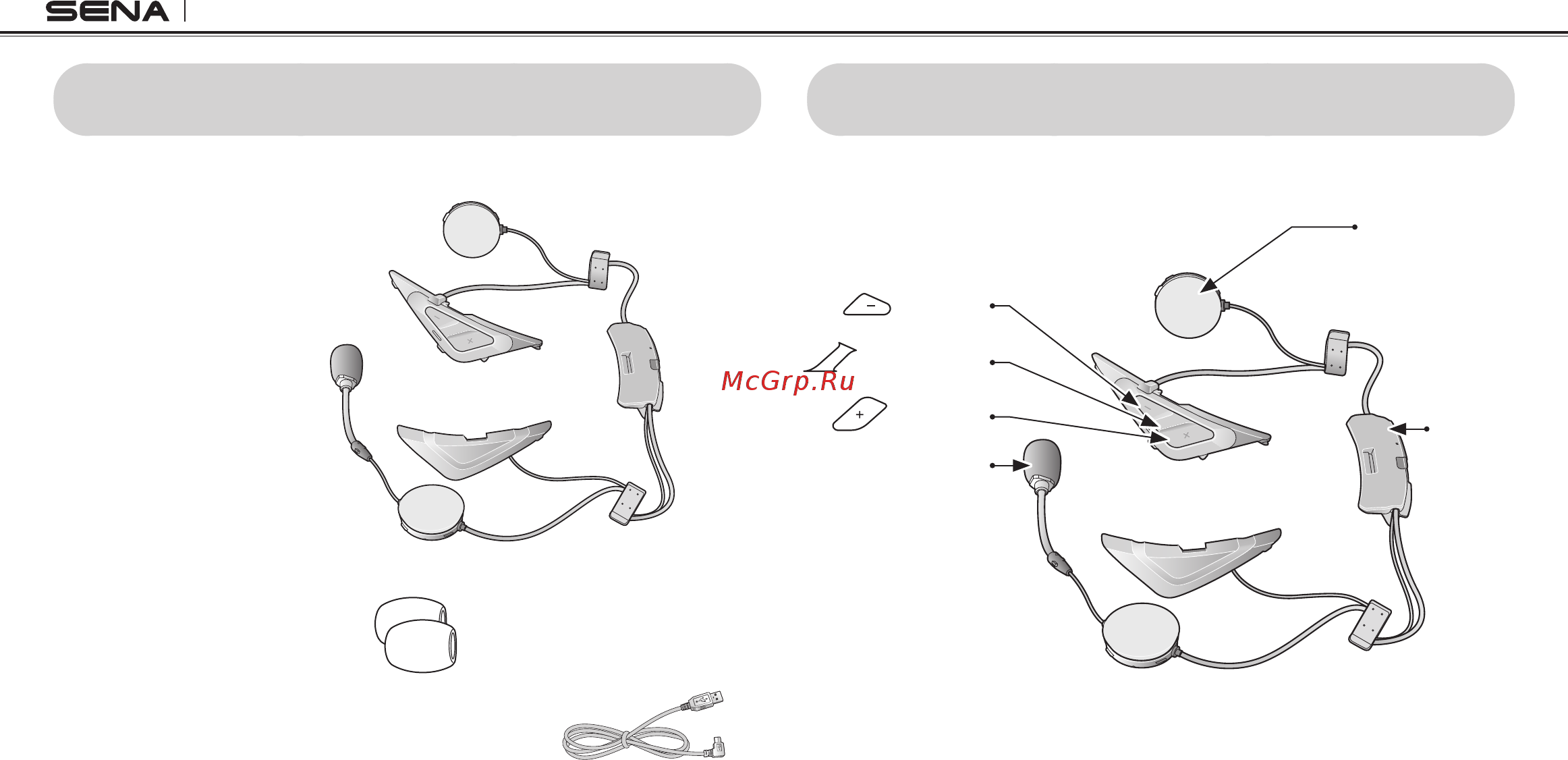

2 PACKAGE CONTENTS

•HeadsetMainUnit 

•MicrophoneSponges(2) 

•USBPower&DataCable(MicroUSBType) 

3 INSTALLING THE SRL ON YOUR HELMET

To securely install the SRL on the helmet, please follow this procedure.

(-) Button

Speaker

Bluetooth

Module

Center Button

(+) Button

Microphone

Содержание

User s guide 1
Www sena com 1
Contents 3
English 3
Fm radio 22 3
Getting started 3
Gps navigation 21 3
Group intercom 33 3
Installing the srl on your helmet 3
Intercom pairing 26 3
Introduction 3
Mobile phone call making and answering 17 3
Package contents 3
Pairing the srl with bluetooth devices 11 3
Pairing with selective profile a2dp stereo or handsfree 16 3
Sena sr10 two way radio adapter 21 3
Stereo music 19 3
Three way conference phone call with intercom participant 32 3
Two way multi way intercom 28 3
Voice command 25 3
Additional intercom settings 37 4
Certification and safety approvals 47 4
Configuration setting 40 4
Fault reset 45 4
Firmware upgrade 45 4
Function priority 39 4
Operation quick reference 46 4
Product warranty and disclaimer 51 4
Remote control 38 4
Reset to factory default settings 44 4
Safety information 49 4
Sidetone 40 4
Universal intercom 33 4
Voice prompt 39 4
Introduction 5
Headsetmainunit 6
Installing the srl on your helmet 6
Microphonesponges 2 6
Package contents 6
To securely install the srl on the helmet please follow this procedure 6
Usbpower datacable microusbtype 6
Button operation 9
Getting started 9
Lower the face cover completely 9
Reattach the internal paddings beginning with the rear and click the snap fasteners 9
Charging 10
Checking the battery level 10
Led indicator 10
Low battery warning 10
Powering on and off 10
Voice prompt indicator 10
Pairing the srl with bluetooth devices 11
Sena device manager 11
Sena smartphone app 11
Software 11
Volume adjustment 11
Gps pairing 14
Gps pairing as mobile phone 14
If a gps is not only used for turn by turn voice instructions but also is your preferred bluetooth stereo music source you can pair the gps to the srl by following the simple procedures in section 5 mobile phone pairing however since some gps systems support mobile phone bridging over bluetooth you can pair the mobile phone to the gps to use your mobile phone when you do this the srl thinks the gps is a mobile phone so you can no longer pair your mobile phone to the srl directly please refer to the user s guide of your gps for details 14
The pairing diagram for gps pairing is shown in the figure below 14
If you have an mp3 stereo music phone such as a smartphone sometimes you may need to selectively use the srl for a2dp stereo music only or for mobile phone handsfree only these instructions are for advanced users who want to pair the srl to their smartphones only with one selective profile a2dp for stereo music or hfp for phone calls 16
If you have previously paired a mobile phone to the srl you must clear the previous paring list on both devices the mobile phone and srl to clear the pairing list on srl please do a factory reset or follow the pairing list clearing procedure described in this manual to clear the pairing list on the mobile phone please refer to the mobile phone manual for most smartphones delete the sena srl from the list of bluetooth devices in the settings menu 16
Pairing with selective profile a2dp stereo or handsfree 16
Parallel connection of sr10 and mobile phone by bluetooth second mobile phone pairing 16
Mobile phone call making and answering 17
By bluetooth wireless stereo 19
Stereo music 19
To adjust the volume tap the button or the button 2 to play or pause music press and hold the center button for 1 second until you hear double beeps 3 to track forward or track back press and hold the button or the button for 1 second 19
Vox phone default enable 19
As described in section 5 you can use a two way radio and the srl bluetooth intercom simultaneously by using the sena sr10 a bluetooth two way radio adapter along with the srl incoming audio from the two way radio will not interrupt an intercom conversation but is heard in background this is useful when you have an intercom conversation with a passenger on the back seat and use a two way radio for group communication with other motorcycle riders 21
Gps navigation 21
If you pair a bluetooth gps to the srl as described in section 5 bluetooth gps navigation pairing you can hear the voice instruction of the gps while having an intercom conversation the gps voice instruction does not interrupt intercom conversations 21
Intercom and gps voice instruction 21
Sena sr10 two way radio adapter 21
Double tap the button to search up the radio stations or the button to search down radio stations 22
Fm radio 22
Fm radio on off 22
Preset stations 22
Seek and save 22
Seek is the function that searches for station to station frequencies to use the seek function please follow the procedure below 22
To turn on the fm radio press and hold the button for 1 second until you hear mid toned double beeps you will then hear a voice prompt saying fm on in order to turn off the fm radio press and hold the button for 1 second until you hear a voice prompt saying fm off when you power it off the srl will remember the last station frequency when you power it on and turn on the fm radio the last station frequency will be playing 22
You can listen to preset stations while listening to the fm radio press the center button for 1 second to go upward to your next saved preset station 22
Fm station guide default enable 24
Rds af setting default disable 24
Region selection 24
Temporary preset 24
With the temporary preset function you may temporarily preset stations automatically without changing the existing preset stations tap the button three times to automatically scan for 10 temporary preset stations the temporary preset stations will be cleared when the system is powered off 24
You can enable or disable fm station guide through the sena device manager or the sena smartphone app when fm station guide is enabled fm station frequencies are given by voice prompts as you select preset stations when fm station guide is disabled the voice prompts on fm station frequencies will not be given as you select preset stations 24
You can enable or disable rds af setting through the sena device manager or the sena smartphone app rds af allows a receiver to re tune to the second frequency location when the first signal becomes too weak with rds af enabled on the receiver a radio station with more than one frequency can be used 24
You can select the proper fm frequency region from the device manager with the region setting you may optimize the seek function to avoid unnecessary frequency ranges 24
The voice command of the srl allows you to operate certain operations by simply using your voice you can control the srl completely handsfree using the voice recognition the voice command function works only with english commands 25
There are two ways to enter the voice command mode the simplest way is to tap the center button and the button simultaneously another way is to say hello sena during stand by mode 2 speak a voice command from the table below 25
Voice command 25
Voice command procedure 25
Intercom pairing 26
Two way multi way intercom 28
Now you a and two srl intercom friends b c are having a three way intercom 29
Start an intercom conversation with one of the two friends in your intercom group for example you a may start an intercom conversation with the intercom friend b or intercom friend b may start an intercom call with you a 29
The second intercom friend c may join the intercom by making an intercom call to you a you a may also connect the second intercom friend c 29
You a need to be paired with two other friends b c for three way intercom 29
End multi way intercom 31
For example if you have a three way intercom set up the new participant d can be added to either b the head or c the tail if d were added to c then d becomes the new tail of the chain if d were added to b then d becomes the new head in this way an intercom chain can hold up to a total of eight people 31
Please note that each participant s intercom friends are the ones adjacent to each other 31
Press the center button for 5 seconds until you hear double beeps to terminate multi way intercom it terminates the intercom connections between you a and all participants in the chain 2 single tap or double tap the center button to disconnect intercom connection between one of the two intercom friends a single tap will disconnect the intercom connection between you a and b rest of the connection of the chain will be preserved likewise double tap will disconnect the intercom connection between you a and c while preserving rest of the connections 31
You can completely get out of the multi way intercom or just disconnect a part of the chain 31
Double tap 32
Three way conference phone call with intercom participant 32
You can have a three way conference phone call by adding an intercom friend to the mobile phone conversation while having a mobile phone call make an intercom call to one of the intercom friends by tapping the center button to form a three way conference call with the person on the mobile phone line to disconnect the intercom first and go back to your private mobile phone call terminate the intercom by tapping the center button to end the mobile phone call first and maintain the intercom conversation press the center button for 2 seconds or wait for the person on the mobile phone line to end the call 32
Group intercom 33
Universal intercom 33
Four way universal intercom 35
Four way universal intercom case 1 35
Now you a non sena bluetooth headset b and the other srl c are having a three way intercom 35
The other srl c may join the intercom by making an intercom call to you a 35
Two srl headsets a and c and two non sena bluetooth headsets b and d 35
You a may start an intercom conversation with the non sena bluetooth headset b 35
You may disconnect three way universal intercom using the same way as you do in normal three way intercom please refer to section 14 end three way intercom 35
You may have a couple of other four way universal intercom configurations 1 your headset a a non sena bluetooth headset b another srl c and a non sena bluetooth headset d 2 your headset a a non sena bluetooth headset b and two other srl headsets c and d you may make the four way universal intercom call the same way as a normal four way intercom call 35
You may make a four way universal intercom connection with a couple of different configurations 1 three srls and one non sena bluetooth headset or 2 two srls and two non sena bluetooth headsets 35
Four way universal intercom case 2 36
Now two srl headsets a c and two non sena bluetooth headsets b d are connected with the four way universal intercom 36
The non sena bluetooth headset d may join the three way intercom by making an intercom call to the srl c 36
The other srl c may join the intercom by making an intercom call to you a 36
Three srl headsets a c and d and one non sena bluetooth headset b the procedure is the same as case 1 described in section 17 36
You may disconnect a four way universal intercom using the same way as you do in a normal four way intercom please refer to section 14 end multi way intercom 36
Additional intercom settings 37
Audio multitasking default enable 37
Audio overlay volume management default disable 37
Hd intercom default enable 37
Intercom audio overlay sensitivity default 6 37
Remote control 38
Function priority 39
Voice prompt 39
Configuration setting 40
Sidetone 40
Phone pairing 41
Second mobile phone pairing 41
Delete all bluetooth pairing information 42
Gps pairing 42
Media selective pairing 42
Phone selective pairing 42
Exit voice configuration menu 43
Factory reset 43
Remote control pairing 43
Universal intercom pairing 43
Reset to factory default settings 44
To restore the srl to factory default settings press the center button for 12 seconds until you hear high toned double beeps you will hear a voice prompt saying configuration menu 2 tap the button twice and you will hear a voice prompt saying factory reset 3 within 5 seconds tap the center button to confirm reset the headset will be restored to factory setting and switched off automatically you will hear a voice prompt saying headset reset good bye 44
Fault reset 45
Firmware upgrade 45
Operation quick reference 46
Type operation button command led beep 46
1 this device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation 47
Certification and safety approvals 47
Fcc caution 47
Fcc compliance statement 47
Fcc rf exposure statement 47
1 this device may not cause interference 2 this device must accept any interference including interference that may cause undesired operation of the device 48
Bluetooth license 48
Ce declaration of conformity 48
Industry canada statement 48
Product storage and management 49
Safety information 49
Weee waste electrical and electronic equipment 49
Battery 50
Product use 50
Limited warranty 51
Product warranty and disclaimer 51
You agree that you your descendants legal proxies successors or transferees will not raise permanent volitional request for any suit claim implementation redemption or similar action from sena with regard to any occasion such as difficulty pain suffering inconvenience loss injury or death which may occur to you or a third party during the use of this product 2 you must completely understand and accept all risks including those occurring due to any careless behavior of yours or others which may occur during the use of this product 3 you are responsible for ensuring that your medical condition permits usage of the product and that you are in sufficient physical condition for using any device which can be used with it in addition you must ensure that the product does not limit your abilities and that you are able to use it safely 52
You must be an adult who can take responsibilities for using the product 5 you must read and understand the following warnings and alerts 52
Reasons for limited liabilities 53
Risk factors which may occur when you use the product may be unforeseeable therefore you must take full responsibility for any damage or loss caused by all risk factors which may occur when using the product 53
Warranty exclusions 53
When you use the product use good judgment never use it under the influence of alcohol 53
You must read and completely understand all terms and conditions of legal rights and warnings that are involved in using the product in addition usage of the product constitutes acceptance of all terms and conditions regarding waiver of rights 53
In the event the product is damaged because it has been left unattended or has undergone any other accident 54
In the event the product is damaged because the user does not follow the content of the product manual 54
In the event the product is damaged because the user has disassembled repaired or modified it in such way as is not explained in the product manual 54
In the event the product is damaged because the user has used any parts or software which are not provided by the manufacturer 54
In the event the product is damaged by a third party 54
In the event the product is damaged due to acts of god including fire flood earthquake storm hurricane or other natural disaster 54
In the event the product is misused or used for purposes other than its intended purposes 54
In the event the surface of the product is damaged by use 54
Liabilities disclaimer 54
Limitation of liability 54
Free of charge service 55
Warranty service 55
