Инструкция по эксплуатации Страница: 8

SENA SRL Инструкция по эксплуатации онлайн [8/56] 495196

SRL

6. Detach the snap fasteners of the internal paddings and remove

the paddings from the helmet.

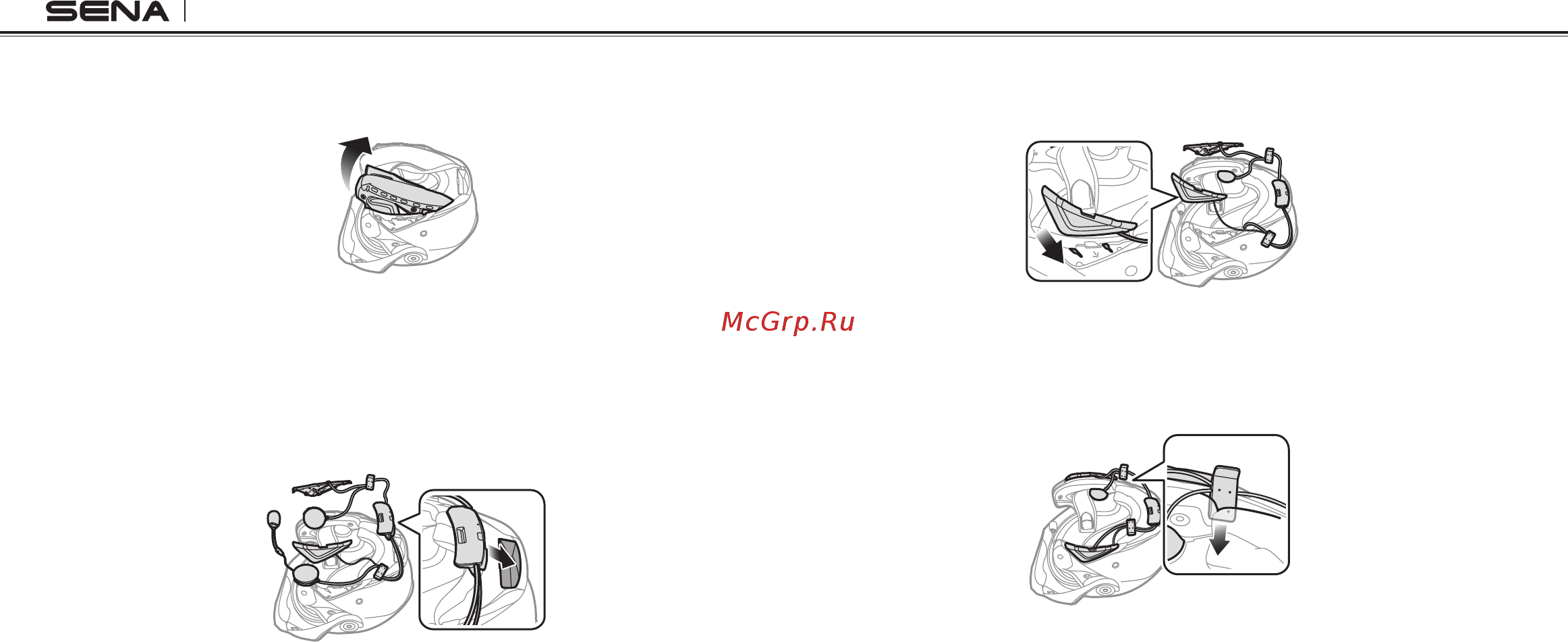

3.2 Installing the headset

1. Facing the USB port on the Bluetooth module toward the rear of

the helmet, push the module into the corresponding slot until you

hear a click.

2. Insert the helmet speakers and the microphone into the grooves

in the inner shell of the helmet.

3. Slide the antenna into the corresponding place. Make sure that

the grooves under the antenna t the corresponding grooves.

4. Repeat the process on the other side to install the button module.

5. Slide the left and right clips into their corresponding sides

between the external shell and the inner shell.
