SMH10R
12
The voice prompt for each menu item is as follows:
(1) Phone pairing
(2) Multipoint pairing
(3) Phone selective pairing
(4) Media selective pairing
(5) Speed dial
(6) VOX phone
(7) VOX intercom
(8) VOX sensitivity
(9) Voice prompt
(10) Sidetone
(11) Noise control
(12) Delete all pairings
(13) Factory reset
(14) Exit conguration

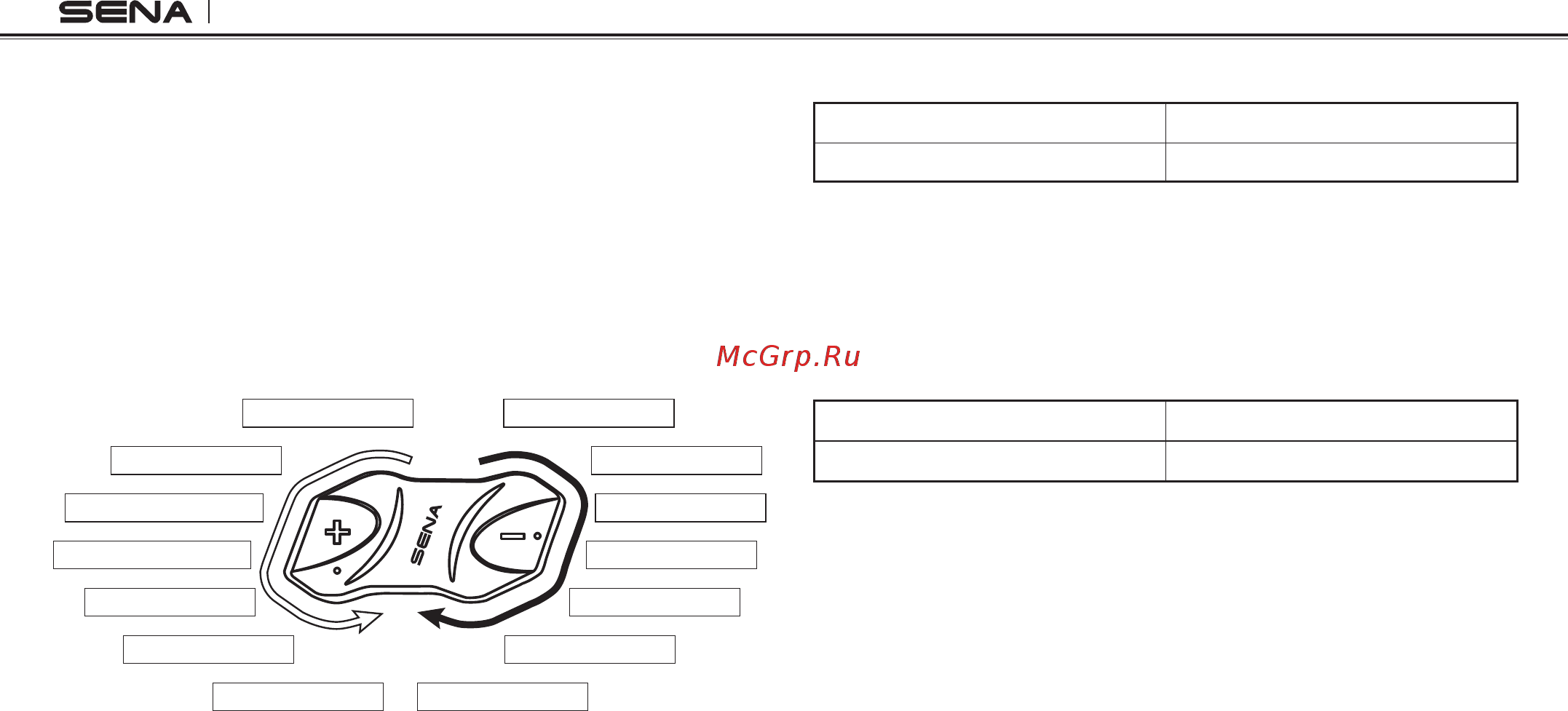

Phone pairing
Exit configuration
Multipoint pairing Factory reset
Phone selective pairing
Delete all pairings
Media selective pairing
Noise control
Speed dial Sidetone
VOX phone Voice prompt
VOX sensitivityVOX intercom
6.1 Mobile Phone Pairing
Voice Prompt “Phone pairing”
Factory Default N/A
To go into mobile phone pairing mode, tap the (+) Button or the (-)
Button until you hear the voice prompt, “Phone pairing”. Please
refer to section 7.1 for details on mobile phone pairing. If you tap
the (+) or the (-) Button, you can exit from the phone pairing mode.
6.2 Multipoint Pairing
Voice Prompt
“Multipoint pairing”
Factory Default N/A
To go into multipoint pairing mode, tap the (+) Button or the (-)
Button until you hear the voice prompt, “Multipoint pairing”. Please
refer to section 7.2 for details on multipoint pairing. If you tap the
(+) or the (-) Button, you can exit from the multipoint pairing mode.
