4. POWERING ON/OFF AND CHARGING
4.1 Powering On
Press the Center Button and the (+) Button at the same time for
1 second to power on. The blue LED turns on and you will hear
ascending beeps and “Hello”.
4.2 Powering Off
Tap the Center Button and the (+) Button simultaneously (you don’t
need to press and hold in order for the system to power off). The
red LED turns on for about 2 seconds until it turns off completely
and you will hear “Goodbye” and descending beeps.
4.3 Charging
The charging LED beside the charging port turns red while
charging, and turns to blue when the headset is fully charged. It
takes about 2.5 hours to be completely charged. You can use the
SMH10R while it is charging.
In the case of the wired microphone, attach the hook and loop
fastener for the wired microphone to the inside of the chin guard
for full-face helmets. Place the wired microphone on the hook
and loop fastener and attach the microphone connector to the 2
pin connector of the main unit cable.

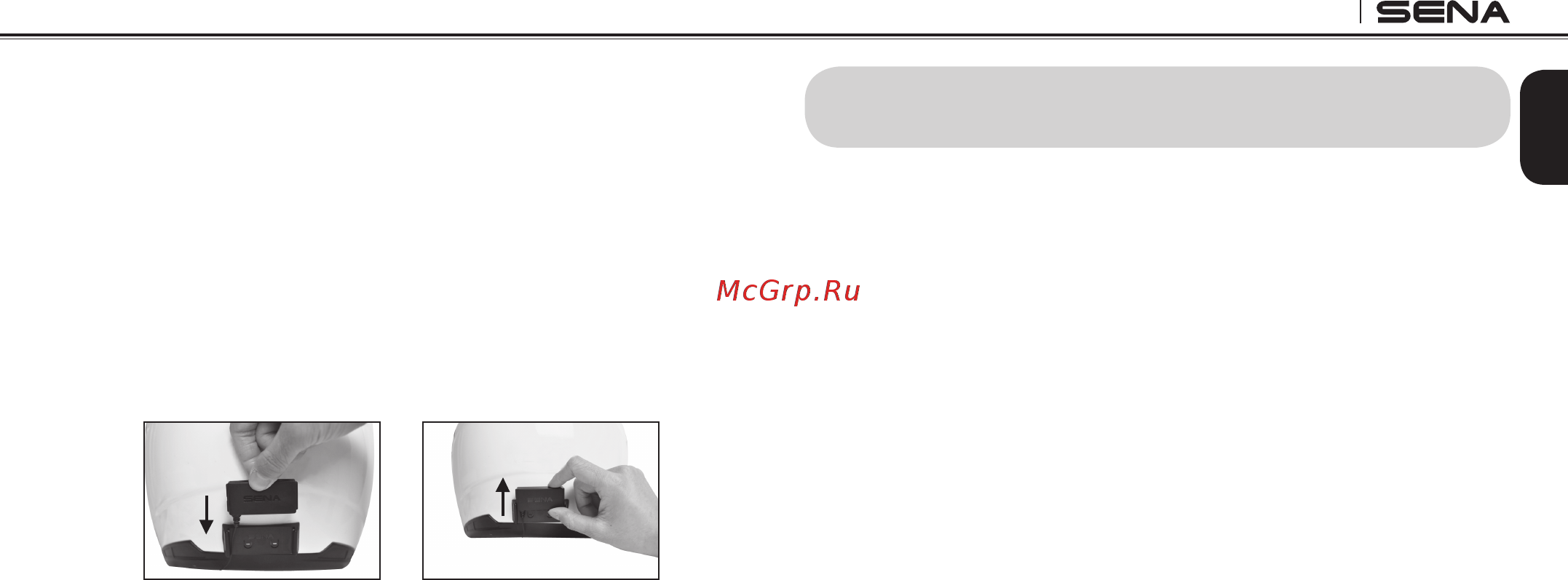

8. Attach the double sided tape to the battery pack holder in the
same manner as the main unit. Insert the battery pack down
in the battery pack holder until you feel the click that signals
a secure attachment. Attach the battery connector to the 2 pin
connector of the main unit cable. To get rid of the battery pack
from the battery pack holder, push the battery pack upward.
