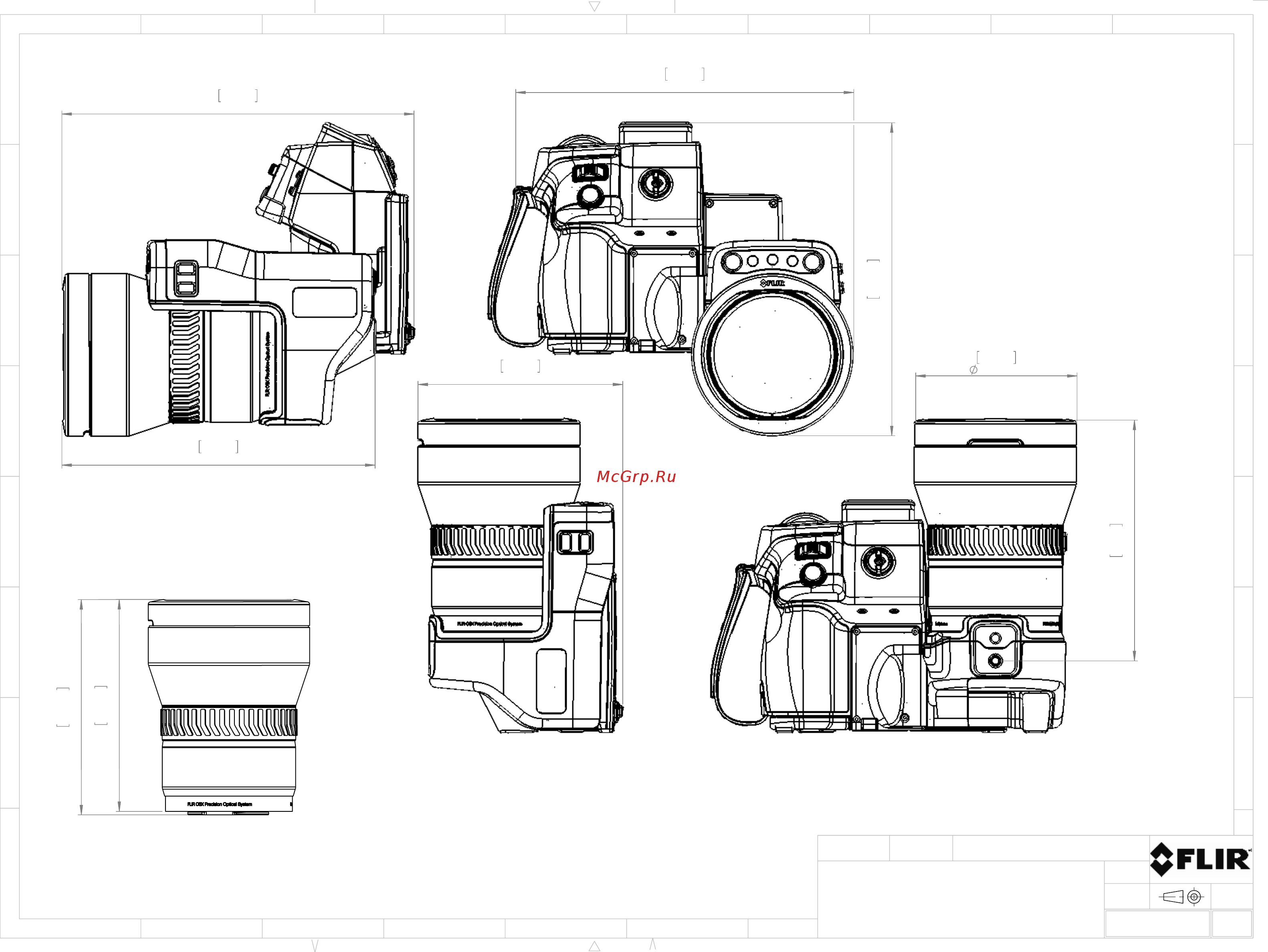

FLIR T10xx f=83.4mm (12°) [3/3] Mechanical drawings

FLIR T10xx f=83.4mm (12°) [3/3] Www tulon ru
8,63in
219,2mm
7,67in
194,9mm
8,29in
210,4mm
7,67in
194,9mm
5,02in
127,4mm
3,96in
100,5mm
5,9in
149,9mm
5,28in
134,1mm
5,19in
131,9mm
IR-LENS 12° (f=83,4mm)
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
2(7)
T128849
Basic dimensions FLIR T10xx
JOTA
2015-09-17
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Size
D
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-
