ROTARY 500 H Servo

MEASUREMENT FOUNDATION

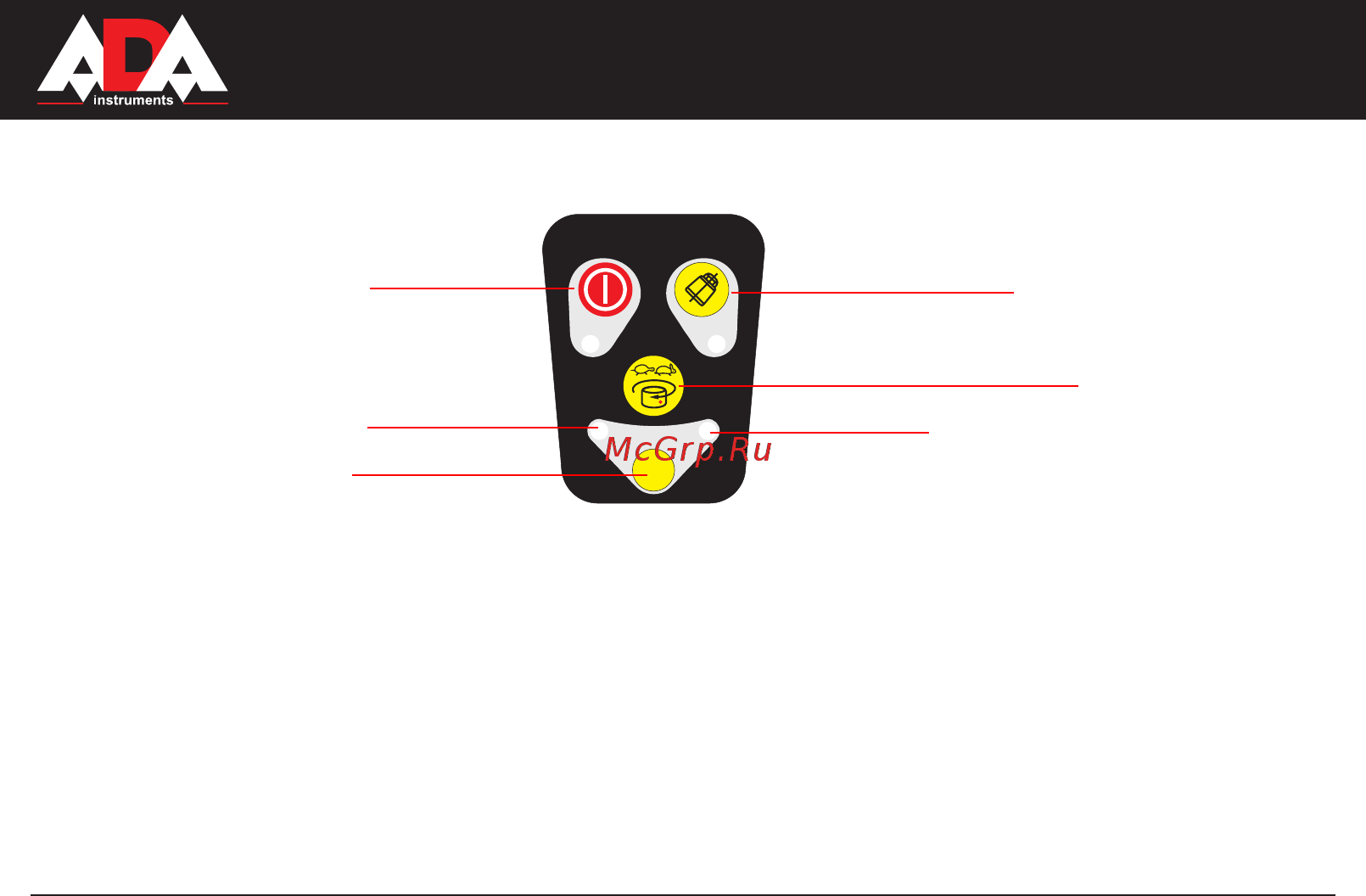

2.2 Control Panel

2.2 Operation

1. Switch ON/OFF: Set up the instrument as shown on the previous page. Press the red button on the bottom

left hand side of the panel. The instrument will Auto level and start spinning giving a Horizontal beam.

2. Spinning Control: To change the speed of the rotating beam press the [Hare/Tortoise Button]. Speeds of

120rpm, 300rpm and 600rpm can be obtained.

3. Automatic drift system/Tilt: Warns the user for a misaligned device. When the instrument is in this mode,

the LED below Tilt button will in fast winking to alert user that the position of the instrument has changed.

4. Receiving window: After laser start rotating, it can be operated by remote control, including set slope, start

automatic drift, calibrate the accuracy, etc.

5. X-axis indicator: In manual mode, When it lights, the slope on X-axis can be manually adjusted.

Switch On/Off

X-axis indicator

Receiving window

Automatic drift system

Rotational speed adjustment

Y-axis indicator
