6. Y-axis indicator: In manual mode, When it lights, the slope on Y-axis can be manually adjusted.

7. Leveling indication :Press the Key Switch ON/OFF to bring automatic leveling into function, meanwhile,

the laser beam begins to wink slowly. After get leveled automatically, the head will rotate at an initial speed

of 600r.p.m.

If the instrument is placed improperly, or the slope of instrument exceeds the range from -5°to +5°, when the

laser beam is winking eetly. The instrument should be reset.

Notices: Instrument will close automatically after ve minutes alarm.

3. Getting set up.

3.1 Charging the Battery

The AA Rechargeable batteries and AA Alkaline batteries are both available for this instrument. Please no-

tice they can not be mixed used. The procedure of installment should as below:

1. Take down the cover of battery compartment after loosing the knob.

2. Put the batteries into the compartment according to the right electrode.

3. Put the cover suitably back to compartment and then tighten the knob.

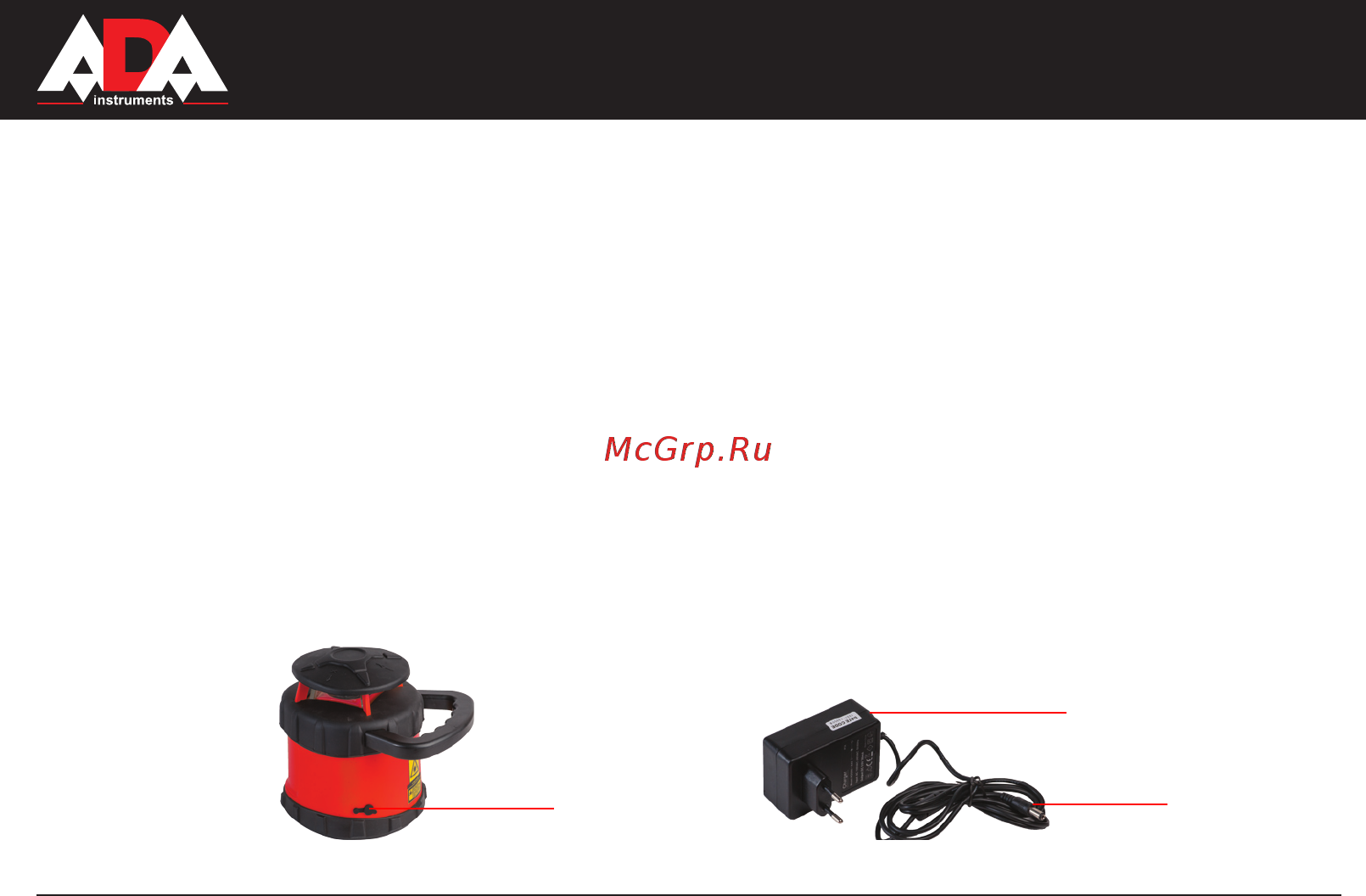

Socket

Plug

Charger
