Crown molding stopper

Optional accessory

Crown molding stoppers allow easier cuts of crown

molding without tilting the saw blade. Install them on the

turnbaseasshowninthegures.

At right 45° miter angle

►Fig.48: 1. Crown molding stopper L 2. Crown mold-

ing stopper R 3. Turn base 4. Guide fence

At left 45° miter angle

►Fig.49: 1. Crown molding stopper L 2. Crown mold-

ing stopper R 3. Turn base 4. Guide fence

Position crown molding with its WALL CONTACT EDGE

against the guide fence and its CEILING CONTACT

EDGE against the crown molding stoppers as shown in

thegure.Adjustthecrownmoldingstoppersaccording

to the size of the crown molding. Tighten the screws to

secure the crown molding stoppers. Refer to the table

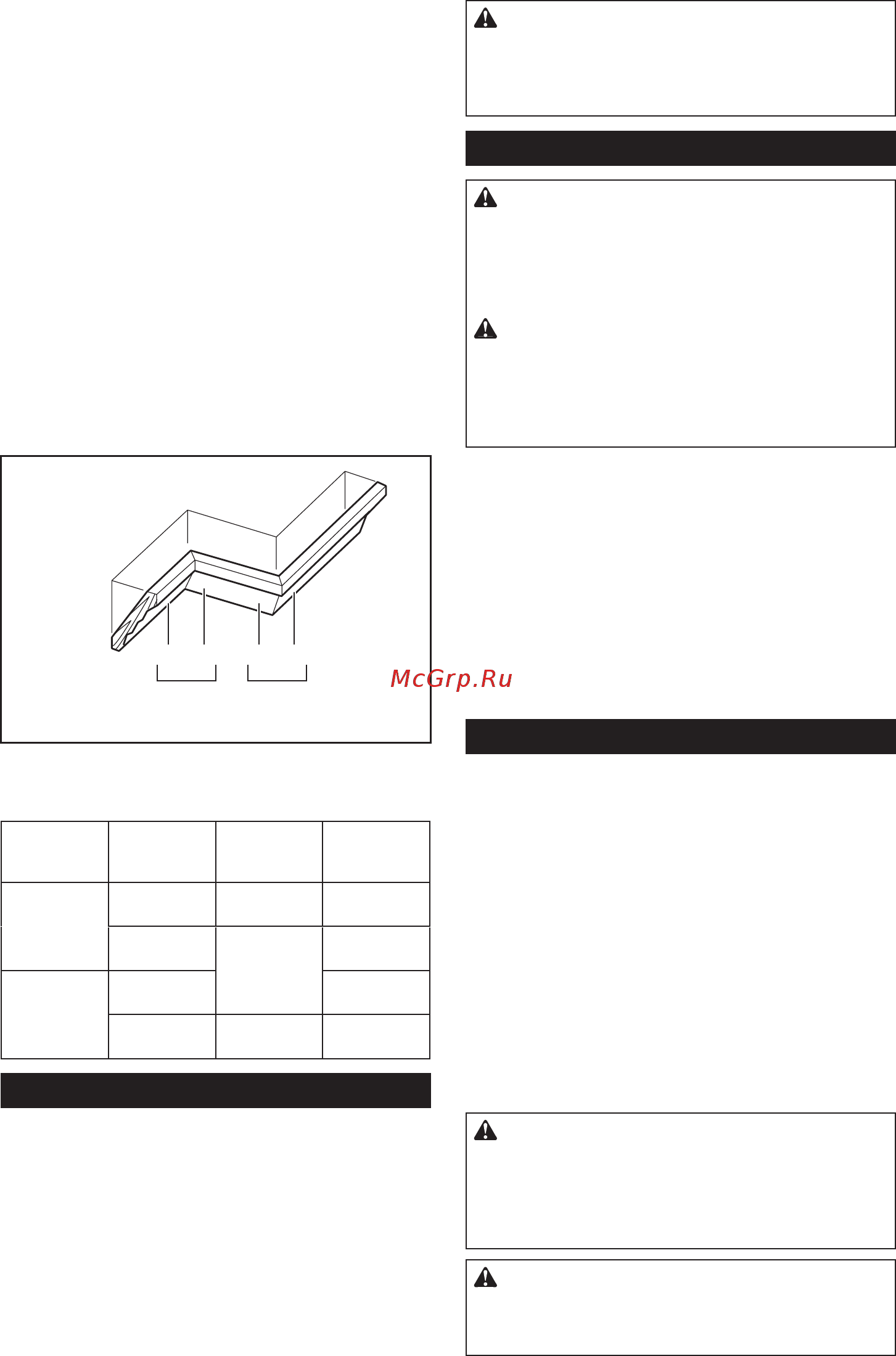

►Fig.50: 1. Guide fence 2. Crown molding stopper

(a) (b) (c) (d)

1. Inside corner 2. Outside corner

Table (C)

– Molding

position in

the gure

Miter angle Finished

piece

For inside

corner

(a) Right 45° Save the right

side of blade

(b) Left 45° Save the left

side of blade

For outside

corner

side of blade

(d) Right 45° Save the left

side of blade

Cutting aluminum extrusion

►Fig.51: 1. Vise 2. Spacer block 3. Guide fence

4. Aluminum extrusion 5. Spacer block

When securing aluminum extrusions, use spacer blocks

orpiecesofscrapasshownintheguretoprevent

deformation of the aluminum. Use a cutting lubricant

when cutting the aluminum extrusion to prevent build-up

of the aluminum material on the blade.

WARNING: Never attempt to cut thick or

round aluminum extrusions. Thick or round alumi-

numextrusionscanbedifculttosecureandthework

may loosen during the cutting operation which may

resultinlossofcontrolandseriouspersonalinjury.

Groove cutting

WARNING: Do not attempt to perform this

type of cut by using a wider type blade or dado

blade. Attempting to make a groove cut with a wider

blade or dado blade could lead to unexpected cutting

results and kickback which may result in serious

personalinjury.

WARNING: Be sure to return the stopper arm

to the original position when performing other

than groove cutting. Attempting to make cuts with

the stopper arm in the incorrect position could lead to

unexpected cutting results and kickback which may

resultinseriouspersonalinjury.

For a dado type cut, perform as follows:

1. Adjustthelowerlimitpositionofthebladeusing

theadjustingscrewandthestopperarmtolimitthecut-

ting depth of the blade. Refer to "Stopper arm" section

described on previously.

2. Afteradjustingthelowerlimitpositionoftheblade,

cut parallel grooves across the width of the workpiece

using a slide (push) cut.

►Fig.52: 1. Cut grooves with blade

3. Remove the workpiece material between the

grooves with a chisel.

Carrying tool

Before carrying, make sure to unplug and all movable

parts of the miter saw are secured. Always check the

following:

• The tool is unplugged.

• The carriage is at 0° bevel angle position and

secured.

• The carriage is lowered and locked.

• The carriage is fully slid to the guide fence and

locked.

• The turn base is at the full right miter angle posi-

tion and secured.

• The holders are stored and secured.

Carry the tool by holding both sides of the tool base as

showninthegure.

►Fig.53

WARNING: Stopper pin for carriage elevation

is for carrying and storage purposes only and not

for any cutting operations. The use of the stopper

pin for cutting operations may cause unexpected

movement of the saw blade resulting in kickback and

seriouspersonalinjury.

CAUTION: Always secure all moving portions

before carrying the tool. If portions of the tool move

or slide while being carried, loss of control or balance

mayoccurandresultinpersonalinjury.
