ENGLISH en

To ensure optimum extraction, use connection

sleeve 6.30796 and a vacuum with automatic filter

cleaning.

We recommend using an antistatic suction hose

Ø 35 mm.

Prior to any conversion work: pull the mains

plug out of the socket. The machine must be

switched off and the spindle at a standstill.

7.1 Attaching the diamond cutting disc

1. Press in the spindle locking button (10) and turn

the spindle (13) until the spindle locking button

engages noticeably.

2. Fit the support flange (14) (scope of delivery of

the angle grinder) on the spindle. The flange

should not turn on the locked spindle when

properly attached.

3. Place the 2 spacer discs (15) onto the support

flange (14) .

4. Put the diamond cutting disc (16) on the spacer

disc (15). Make sure the direction of rotation

is correct. The direction of rotation is indicated

by arrows on the diamond cutting disc and

extraction guard (direction of rotation arrow

(12)).

5. Ensure that the two-hole adjusting nut (17) and

the spindle (13) of the angle grinder match:

lettering on the two-hole adjusting nut and

thread details on the identification plate of the

angle grinder must match (M14 or 5/8”).

6. Screw on two-hole adjustment nut (17).

7. Push spindle locking button (10) and keep

pressed.

8. Firmly tighten the two-hole adjustment nut (17)

using a two-hole spanner (18).

9. Check for secure connection.

10.Turn the diamond cutting disc (16) by hand - it

must not touch the extraction guard (2) or grind

on it.

8.1 Switching on and off

Always guide the machine with both hands.

Switch on first, then guide the accessory

towards the workpiece.

Avoid inadvertent starts: always switch the

tool off when the plug is removed from the

mains socket or if there has been a power cut.

Avoid the machine swirling up or taking in dust

and chips. After switching off the machine,

only place it down when the motor has come to a

standstill.

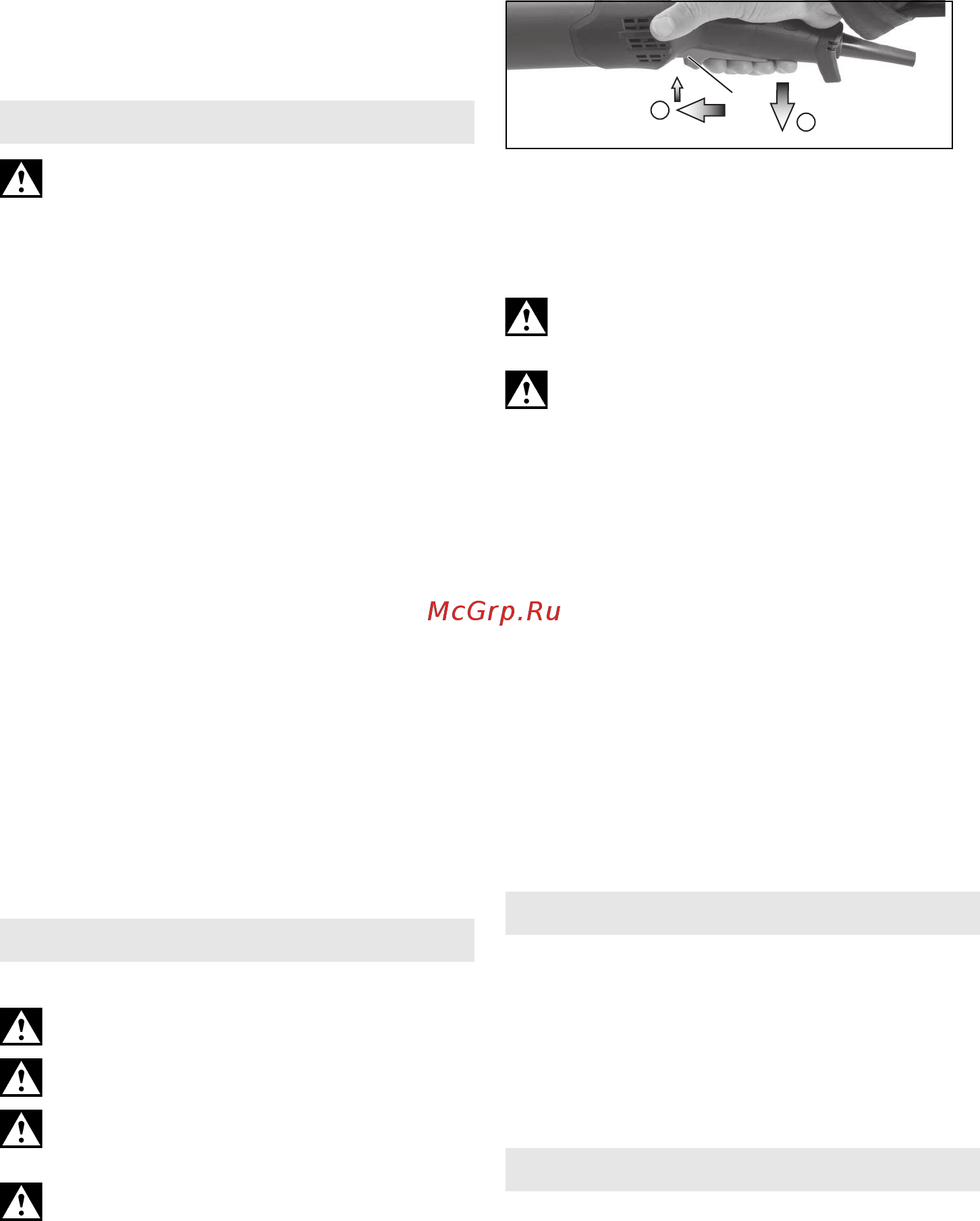

Torque activation (with dead man's lever)

Switching on: Slide the trigger switch (5) forwards

and then push the trigger switch (5)

upwards.

Switching off: Release the trigger switch (5).

8.2 Working

Always hold and guide the tool by the main

handle (4) of the angle grinder and side handle

(8), using both hands.

Pull machine only in direction of arrow (3)

(See page 2, Fig. C.)

1. Position the guard with the wheels (11) on the

workpiece without the diamond cutting disc (16)

touching the workpiece.

2. Switch on machine and wait until the full speed

has been reached.

3. Slowly and carefully pivot the machine down

around the wheel axle: The diamond cutting disc

(16) will penetrate the workpiece.

4. Pull machine only in direction of the arrow (3)

(work in reverse rotation). Otherwise the

machine may kick back from the cut in an out of

control manner. Guide the machine evenly at a

speed suitable for the material being processed.

For optimum extraction, ensure that the wheels

(11) are in contact with the workpiece.

5. Once the cut is complete, switch off the tool and

hold it steady until the diamond cutting disc

comes to a stop. Never attempt to remove the

cutting disc from the cut while the wheel is

in motion otherwise kickback may occur.

6. Put machine aside.

Prior to each use, check if there are parts

missing, worn, broken, torn or damaged. Do not

use a defective or incomplete guard.

Significantly reduced work progress and increased

feed force are signs for blunt diamond cut-off

wheels. Sharpen blunt diamond cut-off wheels by

carrying out short cuts into abrasive materials such

as sand-lime brick.

Particles may become deposited inside the power

tool during operation. This impairs the cooling of the

power tool. Conductive build-up can impair the

protective insulation of the power tool and create an

electrical hazard.

The power tool should be cleaned regularly, often

and thoroughly through all front and rear air vents

using a vacuum cleaner or by blowing in dry air.

Prior to this operation, separate the power tool from

the power source and wear protective glasses and

7. Attaching the accessory

8. Use

9. Maintenance

10. Cleaning
