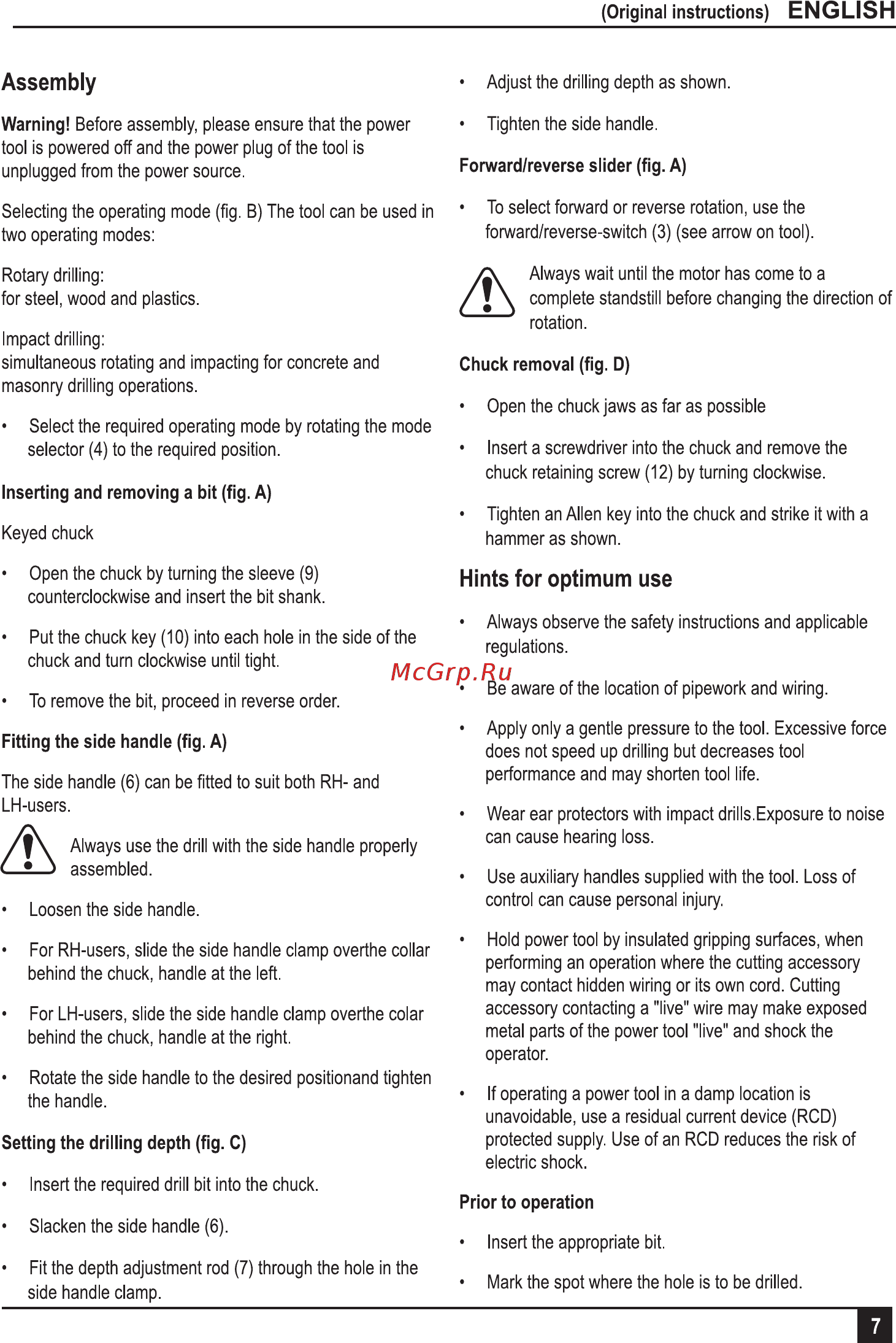

Original instructions ENGLISH Assembly Adjust the drilling depth as shown Warning Before assembly please ensure that the power tool is powered off and the power plug of the tool is unplugged from the power source Tighten the side handle Selecting the operating mode fig B The tool can be used in two operating modes To select forward or reverse rotation use the Rotary drilling for steel wood and plastics Impact drilling simultaneous rotating and impacting for concrete and masonry drilling operations Forward reverse slider fig A forward reverse switch 3 see arrow on tool yj Always wait until the motor has come to a J complete standstill before changing the direction of rotation Chuck removal fig D Open the chuck jaws as far as possible Select the required operating mode by rotating the mode selector 4 to the required position Insert a screwdriver into the chuck and remove the chuck retaining screw 12 by turning clockwise Inserting and removing a bit fig A Tighten an Allen key into the chuck and strike it with a Keyed chuck Open the chuck by turning the sleeve 9 counterclockwise and insert the bit shank hammer as shown Hints for optimum use Always observe the safety instructions and applicable Put the chuck key 10 into each hole in the side of the chuck and turn clockwise until tight To remove the bit proceed in reverse order Fitting the side handle fig A The side handle 6 can be fitted to suit both RH and LH users Always use the drill with the side handle properly assembled Loosen the side handle For RH users slide the side handle clamp overthe collar behind the chuck handle at the left For LH users slide the side handle clamp overthe colar behind the chuck handle at the right Rotate the side handle to the desired positionand tighten the handle Setting the drilling depth fig C regulations Be aware of the location of pipework and wiring Apply only a gentle pressure to the tool Excessive force does not speed up drilling but decreases tool performance and may shorten tool life Wear ear protectors with impact drills Exposure to noise can cause hearing loss Use auxiliary handles supplied with the tool Loss of control can cause personal injury Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord Cutting accessory contacting a live wire may make exposed metal parts of the power tool live and shock the operator If operating a power tool in a damp location is unavoidable use a residual current device RCD protected supply Use of an RCD reduces the risk of electric shock Insert the required drill bit into the chuck Prior to operation Slacken the side handle 6 Insert the appropriate bit Fit the depth adjustment rod 7 through the hole in the side handle clamp Mark the spot where the hole is to be drilled
