Hyundai H-MW1325 [3/22] Turntable installation

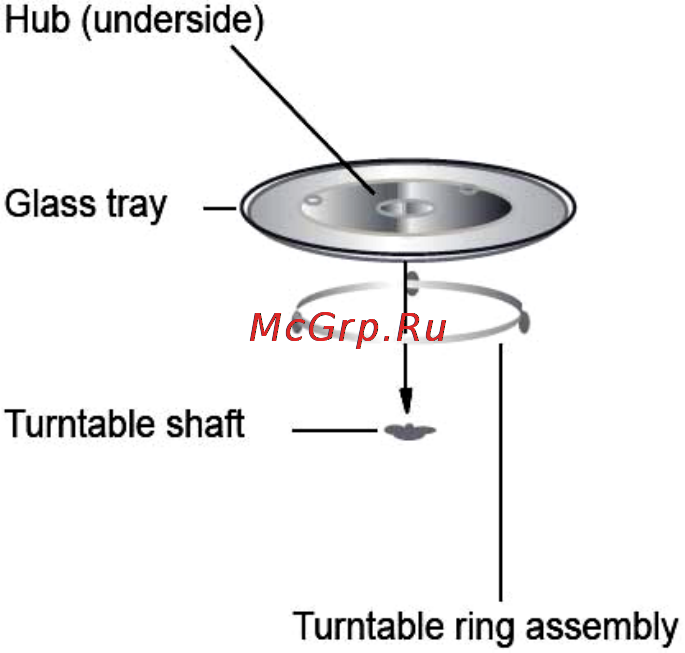

Turntable installation

• Never place the glass tray upside down. The glass tray should never be restricted.

• Both glass tray and turntable ring assembly must always be used during cooking.

• All food and containers of food are always placed on the glass tray for cooking.

• If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken

door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provides enough open space for the intake and/or outlet vents. A minimum clearance of 3.0 inches (7.5 cm) is required between

the oven and any adjacent walls. One side must be open.

• Leave a minimum clearance of 12 inches (30 cm) above the oven.

• Do not remove the legs from the bottom of the oven.

• Blocking the intake and/or outlet openings can damage the oven.

• All food and containers of food should always be placed on the glass tray for cooking.

2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency are the same as the voltage and frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged

and the warranty would be void. The accessible surface may be hot during operation.
