At this point the sensor of the device should be taken away from all

objects on 30cm and press the button ZERO/SET again. The device will

make the autotuning and goes to the measuring mode, see the picture 4.

Using auto zero mode you set up the humidity sensor readings to the

zero. To avoid deviation the auto zero mode should be used periodically

(time range 10-15 minutes).

4.3 Measuring mode

After choosing the material by button and the material group

by button ; put the sensor plate on the testing surface. To obtain

• Heavy concrete (2400kg/m3) from 0,1 to 10 %

• Light concrete (2200kg/m3) from 0,1 to 20 %

• Concrete blinding coat(1800-2000kg/m3) from 0,1 to 35 %

2.1.2 Wood (420-700kg/m3) from 2 to 65%

2.2 Accuracy within Limits, %

2.2.1 Construction materials:

2.2.2 Wood:

2.7 Dimensions 110 x 43 x 25 mm;

2.8 Weight 75g.

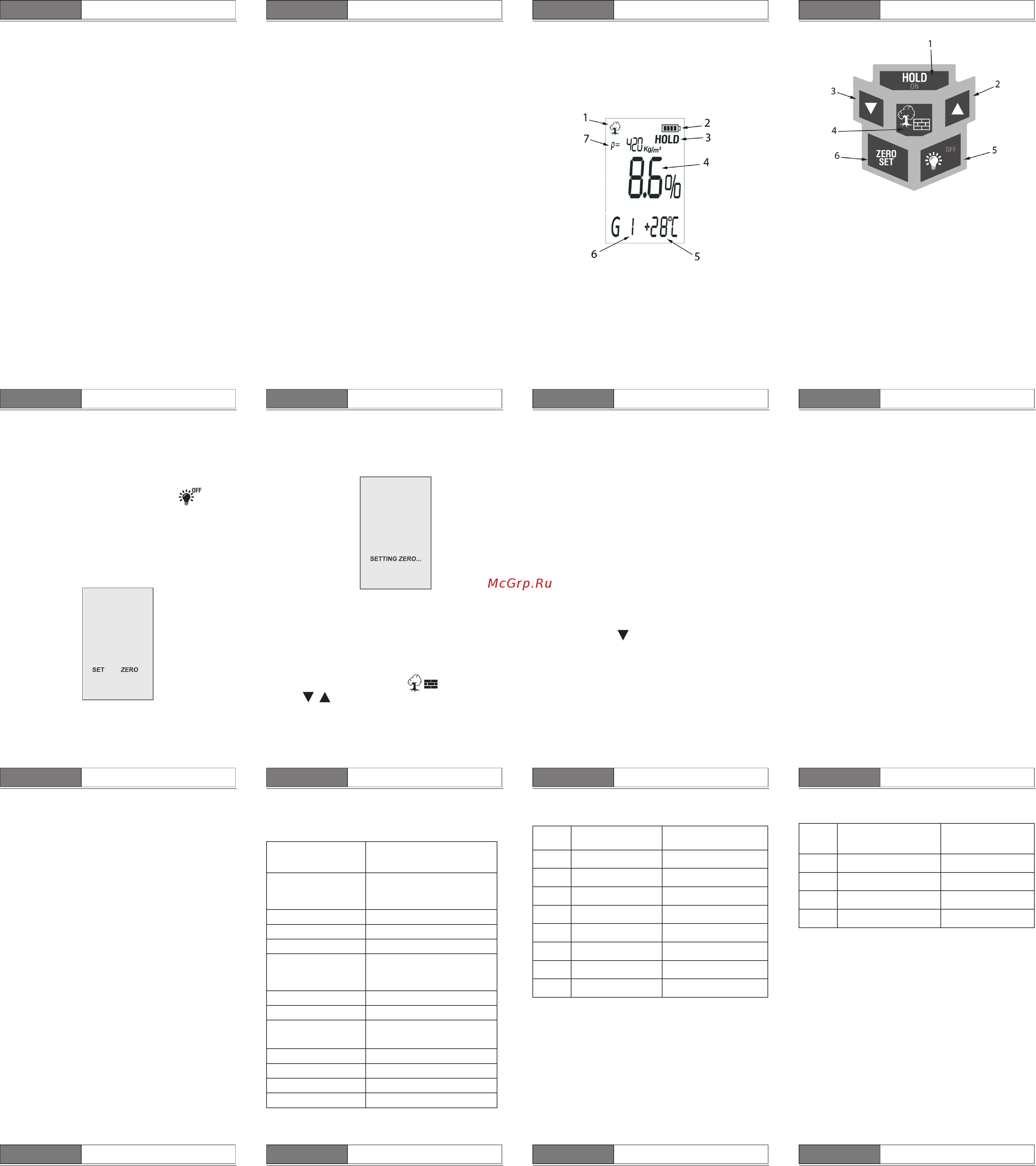

2.9 The device constructed as an electronic unit with the

the keyboard that consists of 6 buttons (see Picture 2), humidity

sensor located under the back panel of the device. Batteries

located into the battery compartment in the back low part of the

device.

4 OPERATION

4.1 Turn on/off the device

Turn the device on with short press on the button HOLD/ON. If

there are no information on display appeared or the battery status

indicator shows low battery voltage, change the power supply.

To turn the device off press and hold the button until the

devise turn off.

The device will turn off automatically after 1 minute if you do not

press any button.

4.2 Auto zero mode

Moisture measurement results can be obtained for:

• Wood – arithmetic mean of more than three times

measurement

• Сoncrete - arithmetic mean of more than five times

measurement;

The measuring depth is 15-20mm which depends on moisture

and density of the measuring material (the device equipped with

calibration setting on this depth). If the thickness of the chosen

material is less than 15mm, the measurement should be carried

out with holding device with material on the air, so that the sensor

5.1 Preventive measures and checking should be periodically

done by users.

5.2 Keep the device clean and protected from any bumps, dust and

dampness; wipe it with a clean and soft cloth.

5.3 After using remove all the dirt, thus etc., from the device.

5.4 If the battery status indicator shows low battery voltage, turn

off the device and change the power supply.

5.5 To optimize the battery discharge time, turn on the device

before measuring and turn it off after using.

5.6 If during operation the device does not respond to the

batteries back and check if the device works again.

5.8 Repair must be carried out by authorized after-sales service

centers.

5.9 Warning

In case of long-term non-use, remove the power supply from the

battery compartment in order to avoid the damage of the device

by leaked fluid.

The device is a highly technical product and should not be repaired

by its users, that is why we do not supply users with a complete

technical documentation of the device.

The producer warrants that «Hydro-Tec CONDTROL» corresponds

to the instrument spec sheet. The warranty is 24 months from the

date of sale.

The warranty does not extend on damages from blows or

falls, misuse, unauthorized repair, and also on batteries and

accessories.

If the moisture meter doesn’t function properly during the

warranty term due to defects in either materials or workmanship

«CONDTROL Ltd»

30, Tagilskaya str., Chelyabinsk 454084, Russia

Tel/Fax: +7 351 211 02 00 (multiline)

Application 1

1.Technical Specifications Hydro-Tec CONDTROL.

concrete: 10 mm

Density range wood: 420 – 700 kg/m

3

Measuring range wood: 2.0 – 65.0 %

concrete: 0 - 35.0 %

Temperature range -10

0

C

Operating temperature 0

0

C to +40

0

C

Power supply 2 pcs. 1.5 V AAA Alkaline
