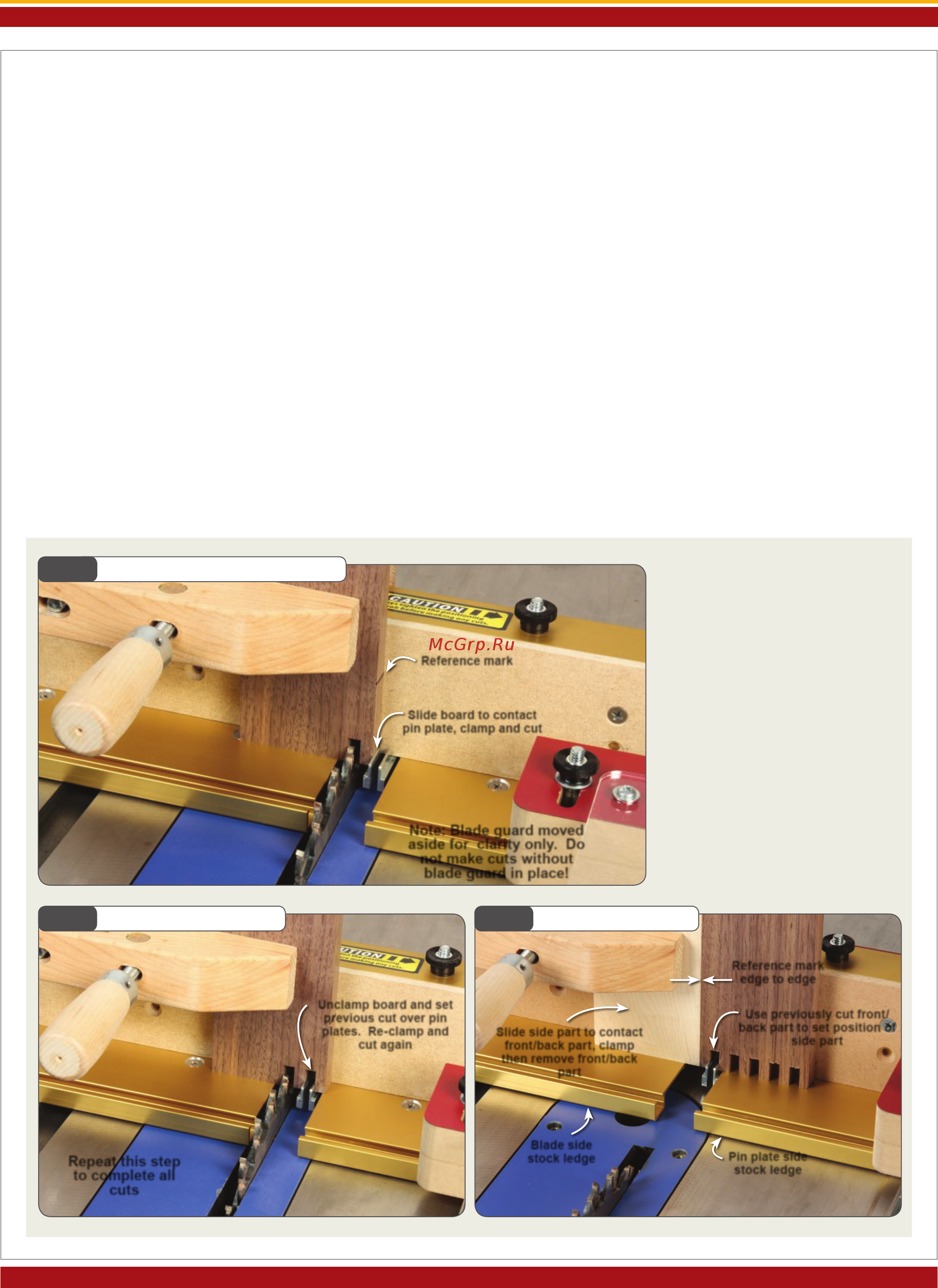

INCRA IBOX OWNER’S MANUAL
Manufactured by Taylor Design Group, Inc. P.O. Box 810262 Dallas, TX 75381 W W W . I N C R A . C O M
GO…
NOTE: In the photos below, we have moved the blade guard aside after each cut for
clarity. DO NOT MAKE ANY CUTS WITHOUT FIRST POSITIONING AND SECURING
THE BLADE GUARDS!
Fig. 22
First Cut - Front/Back Parts
Note: Blade guard moved
aside for clarity only. Do
not make cuts without
blade guard in place!
Fig. 24
Setup - Side Parts
Slide side part to contact
front/back part, clamp
then remove front/back
part
Reference mark
Slide board to contact
pin plate, clamp and cut
Blade side
stock ledge
Pin plate side
stock ledge
1. First Cut - Front/Back Parts
If your box-making stock is a different thickness than
the test cut stock you’ll want to reset the blade guard
as described in Step 5 on page 9, otherwise, place one
of the boards on the blade side stock ledge between
the fence and the blade guard and advance the marked
edge up to contact the pin plates. Clamp the board
with your wooden handscrew and make the cut, Fig. 22.
2. Step, Cut and Repeat - Front/Back Parts
Slide the IBOX clear of the cutter then unclamp and
move the board to set the groove previously cut over
the pin plates. Re-clamp and cut again, Fig. 23. Repeat
this step until you have completed the cuts across
the width of your board. Repeat steps 1-2 on the
remaining ends of the first 2 boards.
3. Set Up - Side Parts
After cutting the final end of the first 2 boards, take
one of them and set it on the pin plate side stock
ledge with the marked edge facing the pin plates and
advance it to set the first groove over the pin plates.
Take one of the remaining 2 (uncut) boards and stand
it on the blade side stock ledge and advance
the marked edge to contact the marked edge on
the first board. Clamp the board with your wooden
handscrew, Fig. 24.
Fig. 23
Step, Cut and Repeat
Unclamp board and set
previous cut over pin
plates. Re-clamp and
cut again
Reference mark
edge to edge
Use previously cut front/
back part to set position of
side part
Repeat this step
to complete all
cuts
Page 10
