INCRA IBOX OWNER’S MANUAL

4. First Cut - Side Parts

Remove the previously cut board from the pin plate

side stock ledge and set aside. Make the cut, Fig. 25.

5. Second Cut - Side Parts

Slide the IBOX clear of the cutter then unclamp and

advance the board on the blade side stock ledge to

contact the pin plates, clamp in place and make the

cut, Fig. 26.

6. Step, Cut and Repeat - Side Parts

Slide the IBOX clear of the cutter then unclamp and

move the board to set the groove previously cut

over the pin plates. Re-clamp and cut again, Fig. 27.

Repeat this step until you have completed the cuts

across the width of your board. Repeat steps 3-6 on

the remaining ends of the final 2 boards.

7. Assemble

Assemble the box with all marked edges facing up,

Fig. 28.

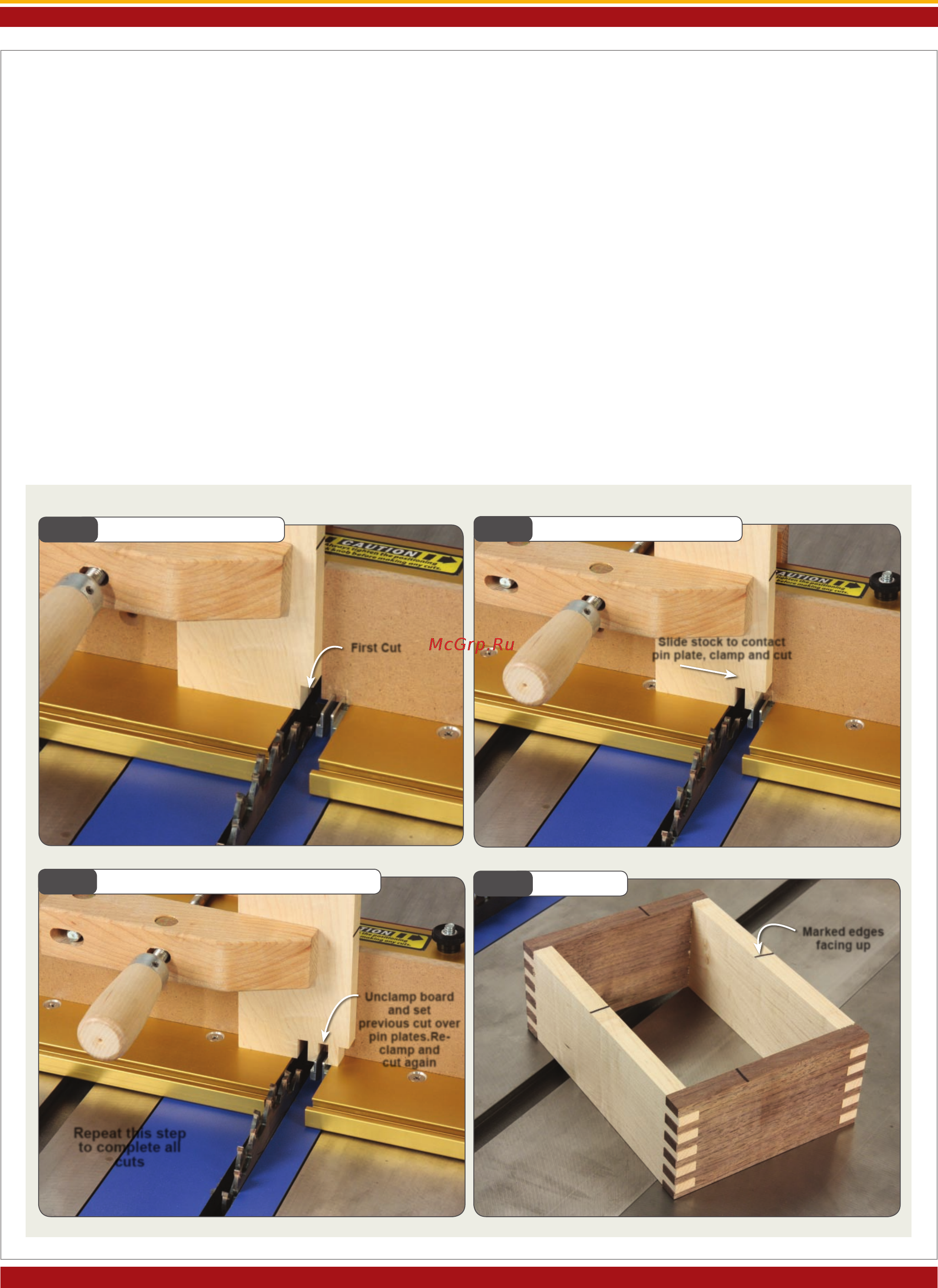

Fig. 25

First Cut - Side Parts

Fig. 27

Step, Cut and Repeat - Side Parts

Repeat this step

to complete all

cuts

First Cut

Fig. 26

Second Cut - Side Parts

Slide stock to contact

pin plate, clamp and cut

Unclamp board

and set

previous cut over

pin plates.Re-

clamp and

cut again

Page 11

Fig. 28

Assemble

Marked edges

facing up
