1. IDENTIFICATION CODE AND
NAMEPLATE FORMAT

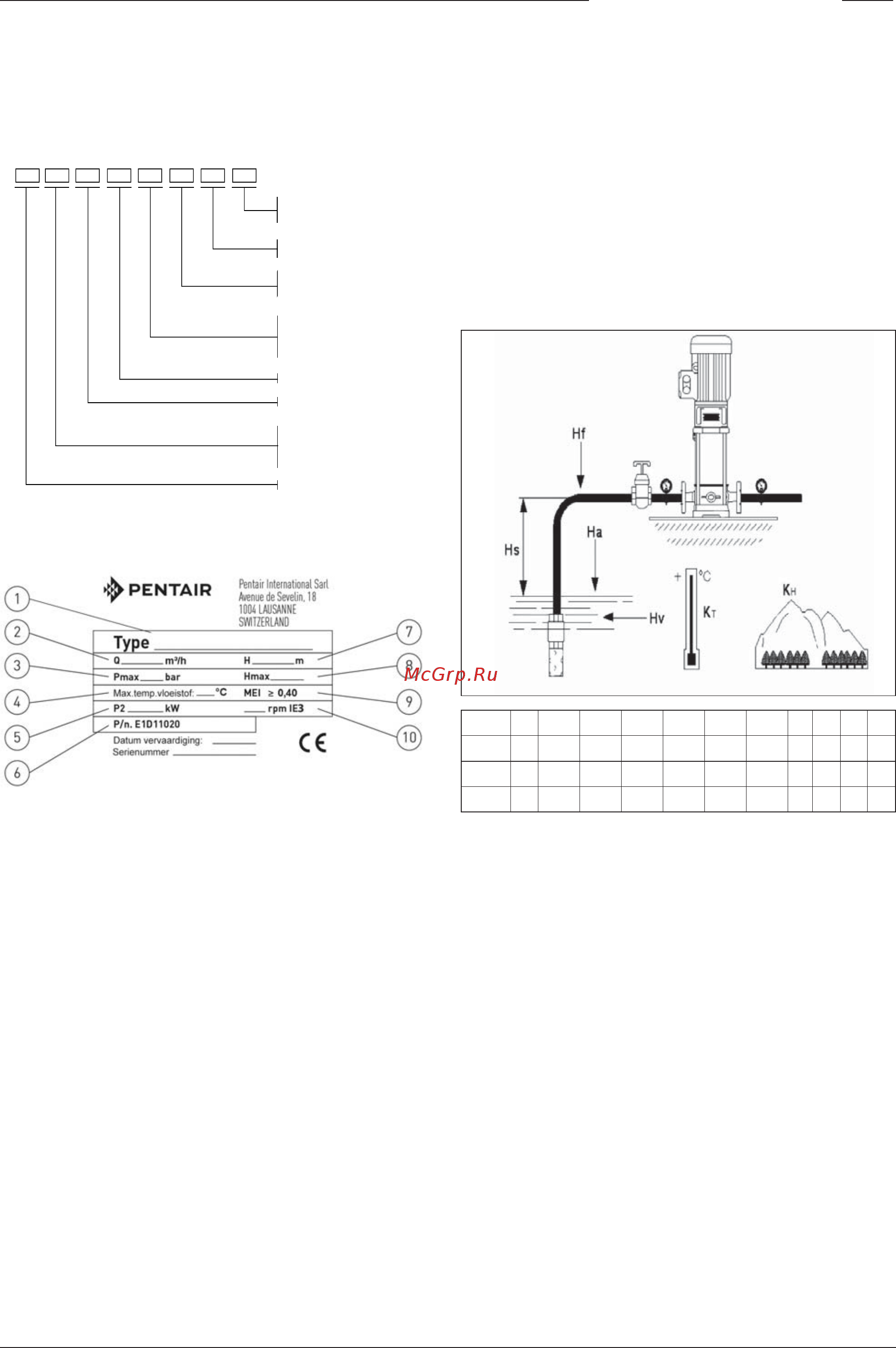

1.1 Identification Code
1.2 Nameplate format
1. Pump type - Model
2. Flow rate
3. Maximum operating pressure
4. Maximum operating liquid temperature
5. Rated power
6. Product code
7. Head range
8. Maximum head
9. Minimum efficiency index pump value
10. Operating rotating speed
2. HANDLING
Read these instructions carefully before beginning installati-
on. Lift and handle these pumps carefully. PVM/PVMI/PVMX
series are vertical multi-stage non-self priming pumps cou-
pled with standard electric motors. This manual applies to
standard version pumps and for standard applications.
3. APPLICATIONS
PVM/PVMI/PVMX series in-line pumps booster pumps are de-
signed for a wide range of applications in various industries
– for water treatment, water boosting, water supply, cooling,
cleaning, etc.
Pumped liquids
These pumps are designed for use with clean, non-viscous
and non-explosive liquids that do not contain abrasive matter.
WARNING: These pumps are not designed to be used with
abrasive, solid containing, explosive and corrosive liquids.
4. TECHNICAL DATA
T [°C] 20 30 40 50 60 70 80 90 100 110 120
K
T
[m] 0,2 0,4 0,8 1,3 2,2 3,3 5,0 7,4 11 15 22
H [m] 0  500 1000 1500 2000 2500 3000
K
H
[m] 0 0,55 1,10 1,65 2,20 2,75 3,30
4.1 Temperatures
Ambient temperature: 0°C to +50°C
WARNING: If ambient temperature is above +50 degrees C,
or if the pump is located at elevations more than 1,000 me-
ters above sea level, the motor’s output must be decreased
to compensate for less effective cooling, and may have to be
replaced with a larger motor.
Liquid temperature: -15°C to +120°C
4.2 Maximum operating pressure
See appendix
4.3 Minimum inlet pressure-NPSH
To avoid cavitation, make sure that there is a minimum pres-
sure on the suction side of the pump.
NPSH
A
: Net Positive Suction Head Available
— The net positive suction head available is a function of the
pump suction system.
NPSH
R
: Net Positive Suction Head Required
50= 50 Hz
60= 60 Hz
T = Three phase
M= Single phase
F - in line round ange
A - in line oval ange
V - VICTAULIC coupling
Number of stages
Nominal ow in m³/h
Model
Material used:
Blank = cast iron / AISI 304
I = AISI 304, X= AISI 316
PVM X
15
4F
T
IE3
50
Motor Eciency
