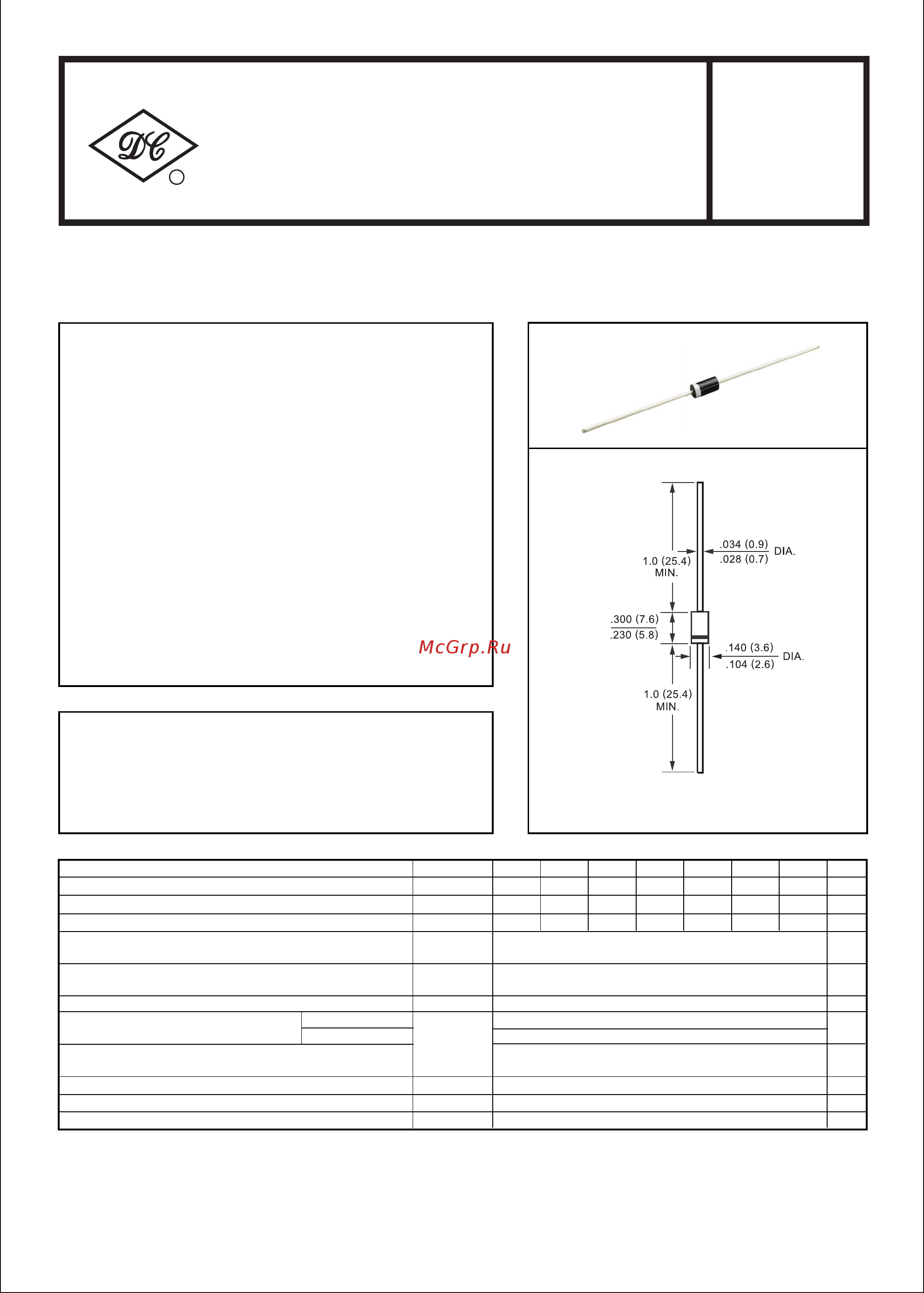

RECTIFIER SPECIALISTS
R
DC COMPONENTS CO., LTD.
TECHNICAL SPECIFICATIONS OF
SILICON RECTIFIER
VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 1.5 Amperes
FEATURES
* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Mounting position: Any
* Weight: 0.38 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
1N5391
THRU
1N5399
DO-15
Dimensions in inches and (millimeters)
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375*(9.5mm) lead length at T
L
= 70
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Operating and Storage Temperature Range
SYMBOL
V
RRM
V
DC
I
O
I
FSM
T
J
, T
STG
V
RMS
Volts
Volts
Volts
Amps1.5
50
-65 to + 175
Amps
0
C
UNITS
Typical Thermal Resistance
R θ
JA
50
0
C/W
at Rated DC Blocking Voltage
Maximum Full Load Reverse Current Average, Full Cycle
.375*(9.5mm) lead length at T
L
= 75
o
C
V
F
I
R
1.4
5.0
30 uAmps
uAmps
Maximum DC Reverse Current
Maximum Instantaneous Forward Voltage at 1.5A DC
Volts
@T
A
= 25
o
C
@T
A
= 100
o
C
5
0
0
NOTES :
Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
1N5391 1N5392 1N5393 1N5395 1N5397 1N5398 1N5399
50 100 200 400 600 800 1000
35 70 140 280 420 560 700
50 100 200 400 600 800 1000
Typical Junction Capacitance (Note) C
J
20 pF
