TECHNICAL SPECIFICATIONS
OF
SURFACE MOUNT ZENER DIODES
RECTIFIER SPECIALISTS
R
DC COMPONENTS CO., LTD.
FEATURES
* Voltage Range:2.4V to 51V
MECHANICAL DATA
* Case: Molded plastic
* Mounting position: Any
* Weight: 0.002 grams
* Ideally Suited for Automated Assembly Process
* Terminals:Solder plated, solderable per
MIL-STD-202E, Method 208 guaranteed
* Polarity: See Diagram

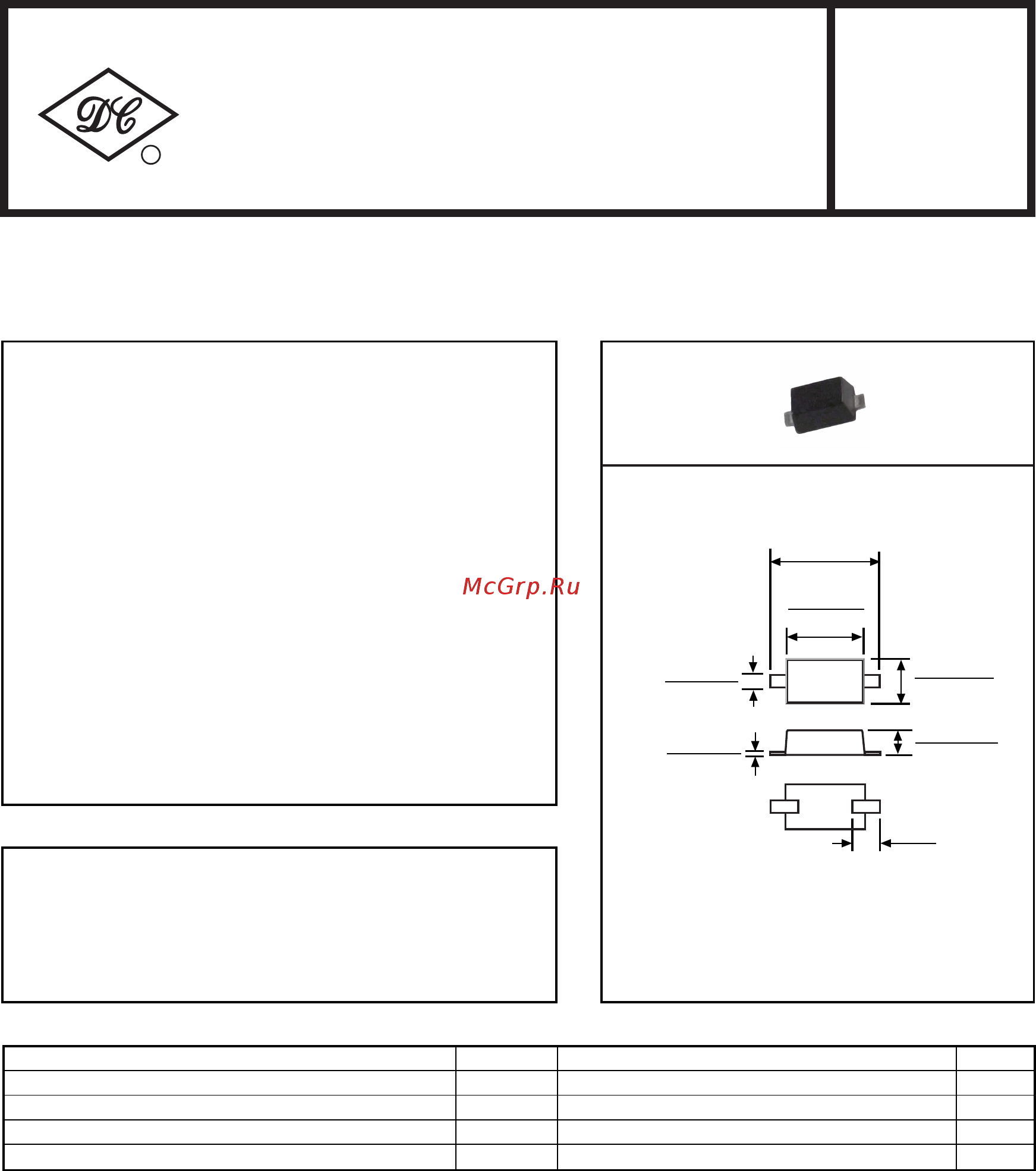

SOD-523
Dimensions in inches and (millimeters)
* 200mW Power Dissipation
SYMBOL VALUE UNITS
Zener Current see Table "Characteristics"
Maximum Power Dissipation @TA=25
o
C Ptot 200 mW
Typical Thermal Resistance RθJA 680
o
C/W
Operating and Storage Temperature TJ,Tstg -55 to +150
o
C
BZX584C2V4
THRU
BZX584C51
.051(1.3)
.043(1.1)
.067(1.7)
.059(1.5)
.012
(0.3)
.034(0.85)
.029(0.75)
MIN.
.014(0.35)
.009(0.25)
.006(0.15)
.002(0.05)
.030(0.77)
.020(0.51)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
o
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
REV-3,MAR,2017 www.dccomponents.com1
