DC COMPONENTS BZX584C20-DC [2/3] Breakdown characteristics

DC COMPONENTS BZX584C10-DC [2/3] Breakdown characteristics
changes in the power dissipation
due to the ambient temperature.
500
400
300
200
100
0
Ptot(mw)
TA(
o
C)
50 100 150 200 300
Ambient Temperature.
Power dissipation
Breakdown characteristics
BZX584-SERIES
mA
50
40
30
20
10
0
5V 10V 15V 20V 25V 30V
IZ
VZ
27
24
22
20
15
12
11
9V1
6V8
6V2
5V6
5V1
4V7
4V3
3V9
3V3
2V7
Test Current
IZ 5mA
NOTE: Standard Zener Voltage Tolerance ±5%

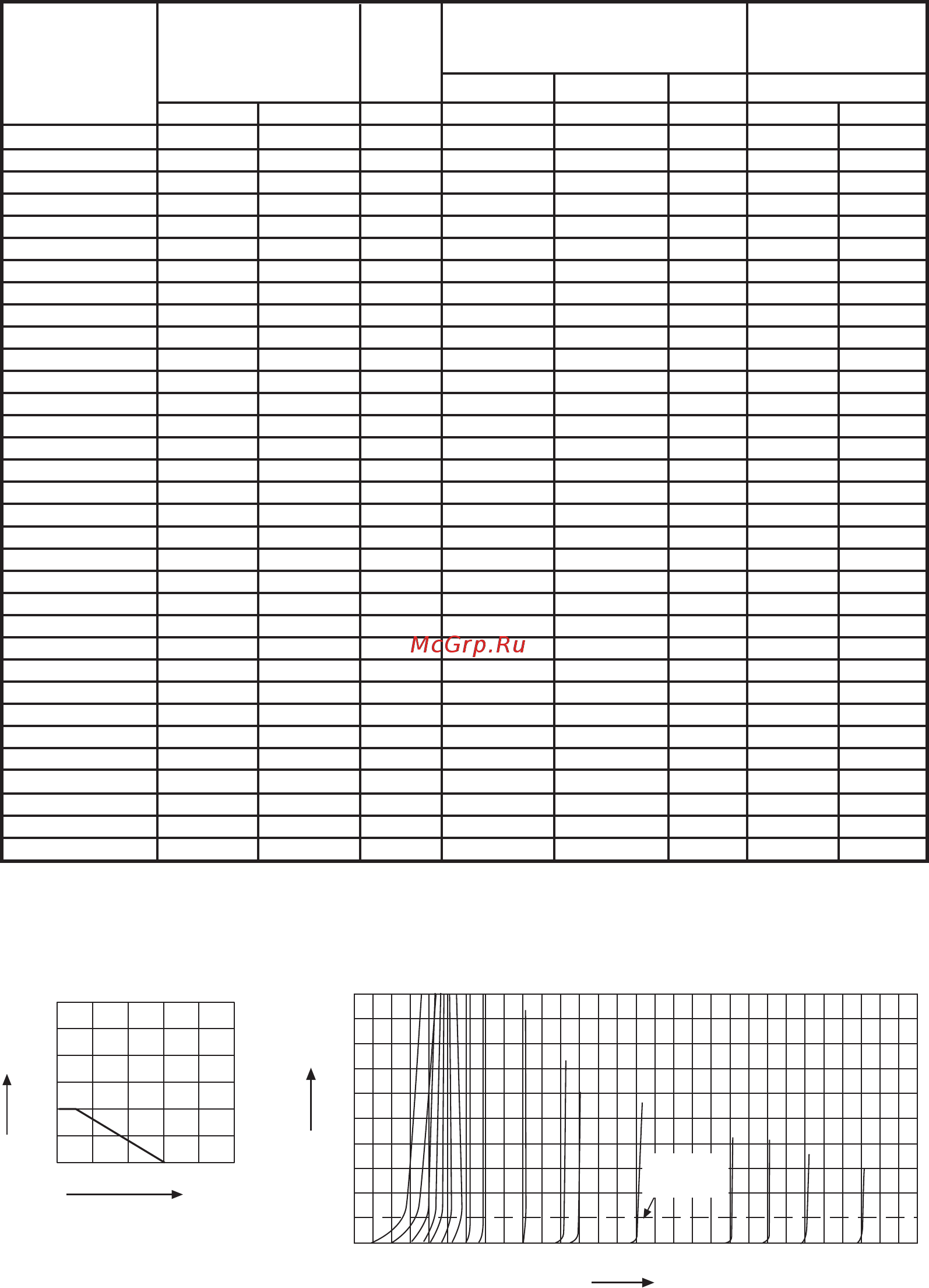

RATING AND CHARACTERISTIC CURVES (BZX584C SERIES)
Maximum Reverse
Leakage Current
I
R @
V
R
µA Volts
Maximum Zener
Impedance
Z
ZT @
I
ZT
Z
ZK @
I
ZK
I
ZK
Ohms Ohms mA
BZX584C2V4 2.2 2.6 5 100 600 1 50 1.0
BZX584C2V7 2.5 2.9 5 100 600 1 20 1.0
BZX584C3V0 2.8 3.2 5 95 600 1 10 1.0
BZX584C3V3 3.1 3.5 5 95 600 1 5 1.0
BZX584C3V6 3.4 3.8 5 90 600 1 5 1.0
BZX584C3V9 3.7 4.1 5 90 600 1 3 1.0
BZX584C4V3 4.0 4.6 5 90 600 1 3 1.0
BZX584C4V7 4.4 5.0 5 80 500 1 3 2.0
BZX584C5V1 4.8 5.4 5 60 480 1 2 2.0
BZX584C5V6 5.2 6.0 5 40 400 1 1 2.0
BZX584C6V2 5.8 6.6 5 10 150 1 3 4.0
BZX584C6V8 6.4 7.2 5 15 80 1 2 4.0
BZX584C7V5 7.0 7.9 5 15 80 1 1 5.0
BZX584C8V2 7.7 8.7 5 15 80 1 0.7 5.0
BZX584C9V1 8.5 9.6 5 15 100 1 0.5 6.0
BZX584C10 9.4 10.6 5 20 150 1 0.2 7.0
BZX584C11 10.4 11.6 5 20 150 1 0.1 8.0
BZX584C12 11.4 12.7 5 25 150 1 0.1 8.0
BZX584C13 12.4 14.1 5 30 170 1 0.1 8.0
BZX584C15 13.6 15.6 5 30 200 1 0.1 10.5
BZX584C16 15.3 17.1 5 40 200 1 0.1 11.2
BZX584C18 16.8 19.1 5 45 225 1 0.1 12.6
BZX584C20 18.8 21.2 5 55 225 1 0.1 14.0
BZX584C22 20.8 23.3 5 55 250 1 0.1 15.4
BZX584C24 22.8 25.6 5 70 250 1 0.1 16.8
BZX584C27 25.1 28.9 2 80 300 0.5 0.1 18.9
BZX584C30 28.0 32.0 2 80 300 0.5 0.1 21.0
BZX584C33 31.0 35.0 2 80 325 0.5 0.1 23.1
BZX584C36 34.0 38.0 2 90 350 0.5 0.1 25.2
BZX584C39 37.0 41.0 2 130 350 0.5 0.1 27.3
BZX584C43 40.0 46.0 2 150 375 0.5 0.1 30.1
BZX584C47 44.0 50.0 2 170 375 0.5 0.1 32.9
BZX584C51 48.0 54.0 2 180 400 0.5 0.1 35.7
Nominal
Zener
Voltage
V
Z @
I
ZT
Min Max
Zener
Test
Current
I
ZT
mA
TYPE
REV-3,MAR,2017 www.dccomponents.com2
