OLIMEX A20-MICRO-E16GS16 [20/55] Layout bottom view

OLIMEX A20-MICRO-S16 [20/55] Layout bottom view

3.2 Layout (bottom view)

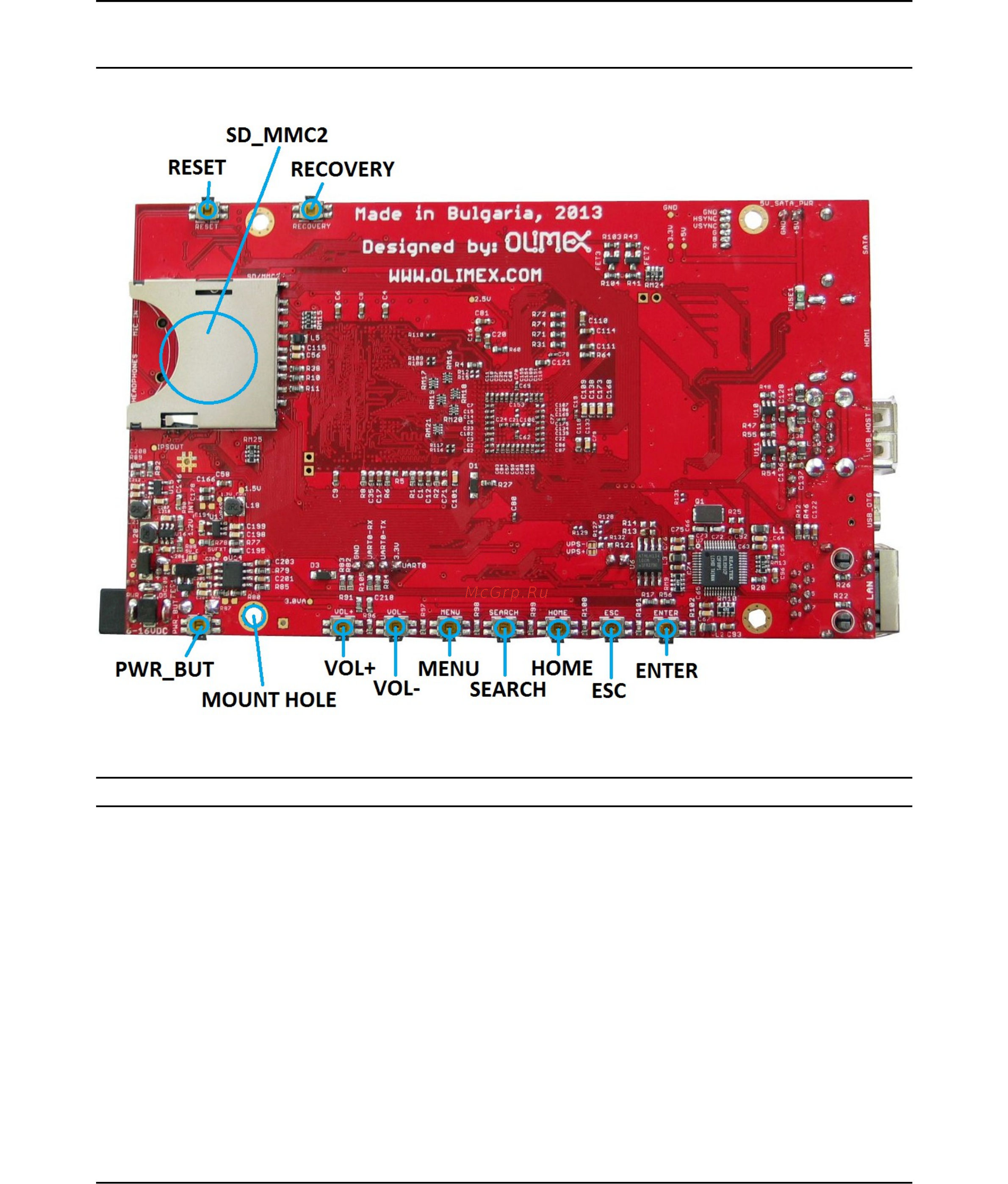

At the bottom of the board there are mainly buttons and the large SD/MMC connector.

Page 20 of 55
