OLIMEX© 2015 IMX233-OLinuXino-MAXI user's manual
CHAPTER 6: CONNECTORS AND PINOUT
6. Introduction to the chapter
In this chapter are presented the connectors that can be found on the board all together with their
pinout and notes about them. Jumpers functions are described. Notes and info on specific
peripherals are presented. Notes regarding the interfaces are given.
6.1 Debugging interfaces
If you don't have a separate monitor or display around, and you don't wish to swap cables constantly
with your personal computer using the debug interfaces provide better option for you OLinuXino
experience.

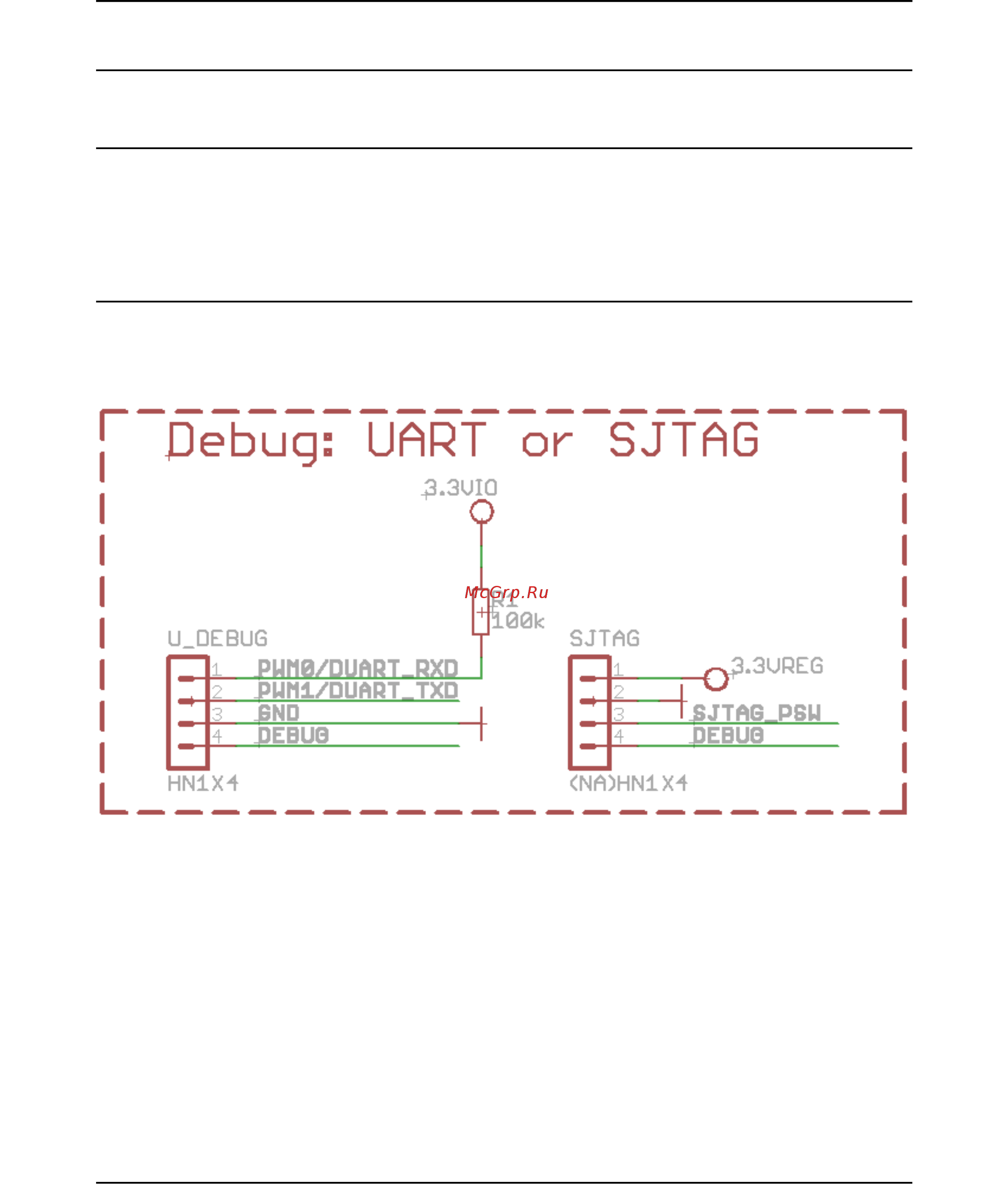

There are three debugging options available on the OLinuXino. It is preferable to use one of the
first two – UART or SJTAG but in case you want to use the classic 6-wire parallel JTAG there is an
option explained below.
