General Outline ESIE07-04
1–102 Part 1 – System Outline
3
1
1
4
5

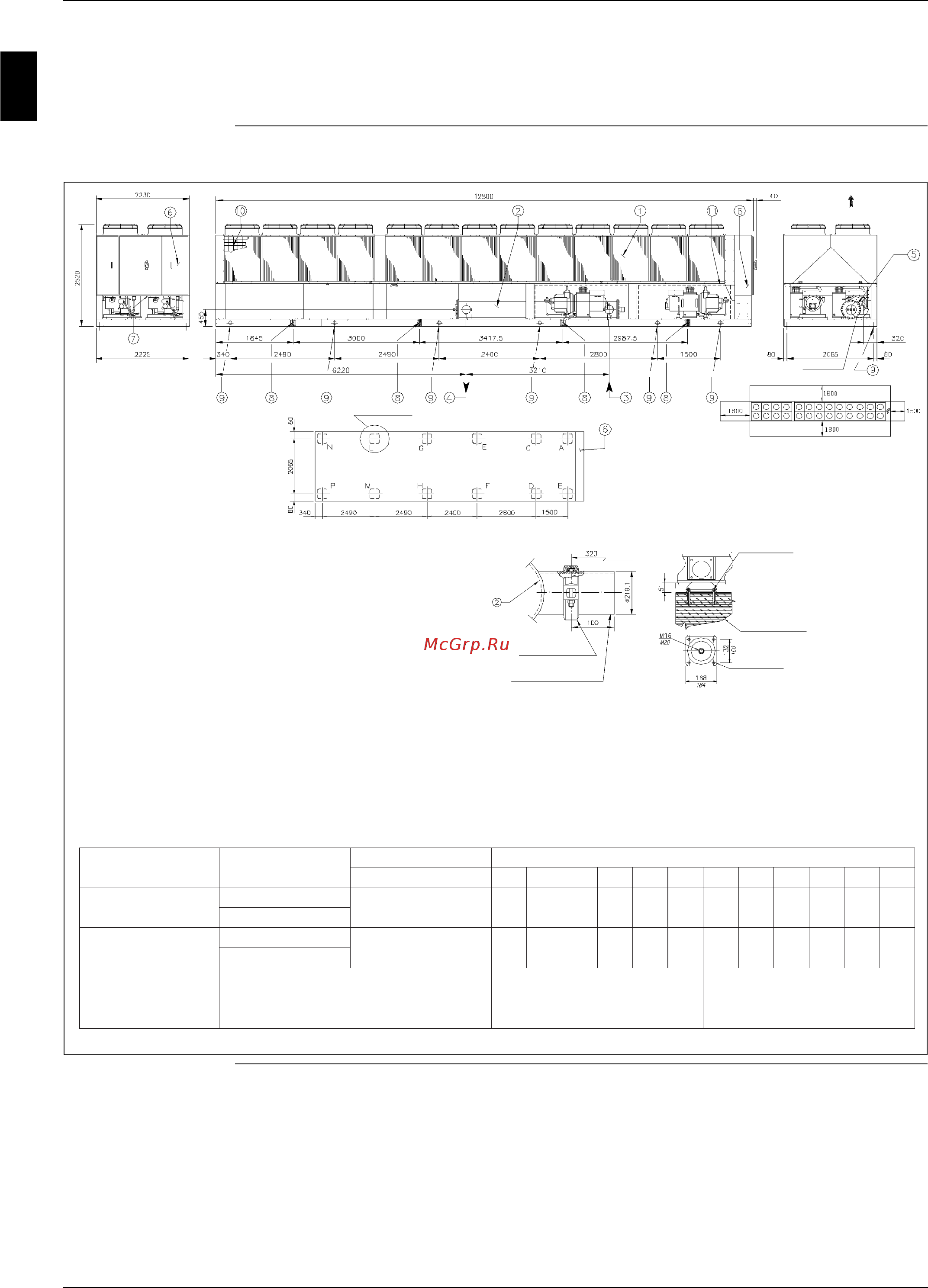

1.55 Outlook Drawing: EWADC17BJYNN/A, EWADC17BJYNN/A+OPRN and
EWADC17BJYNN/A+OPLN
The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
(Frame)
(Control box)
Air discharge
See detail B
Refer
Fan arrangements and minimum
clearance requirements
See detail A
Isolators location
Detail "A" rubber isolator
786011-h
________
786010-m
Fixing bolt (not furnished)
Detail B
''Victaulic''coupling-furnished
Connecting pipe-furnished
Concrete footing
I.D. 13 N. 4 holes
Version Condenser Type
Weight KG
Type (q/ty)
786010-m
(6 Pz.)
786011-h
(4 Pz.)
Shipping Operating A B C D E F
1140 1140 955 955 1410 141010335 10960
Isolators load KG
Aluminum
Acrylic coated
Rubber isolators
EWADC17BJYNN/A
EWADC17BJYNN/A+OPRN
EWADC17BJYNN/A
EWADC17BJYNN/A+OPRN
EWADC17BJYNN/A+OPLN
1200 1200 1035 1035
GH
780 780
780 7801450 1450
LM
555 555
555 555
NP
640 640
640 64010715 11320
Aluminum
Acrylic coated
EWADC17BJYNN/A+OPLN
