www.bk precision.com
Tel.: 714.921.9095
DC Volts
Ranges 2 V, 20 V, 200 V, 1000V
Resolution 1 mV, 10 mV, 100 mV, 1 V
A
ccuracy ±(1.2 % rdg + 1 dgts)
I
nput Impedance 10 MΩ
O
verload Protection 1000 VDC or 750 VACrms
AC Volts (50 Hz-500 Hz)
Ranges 200 V, 750 V
Resolution 100 mV, 1 V
Accuracy 200 V range: ±(2.0 % rdg + 5 dgts)
7
50 V range: ±(2.0 % rdg + 10 dgts)
Input Impedance 10 MΩ
Overload Protection 1000 VDC or 750 VACrms
DC Current
R
anges 2 mA, 20 mA, 200 mA, 10 A
R
esolution 1 uA, 10 uA, 100 uA, 10 mA
A
ccuracy 2 mA to 200 mA ranges: ±(1.5 % rdg + 1 dgts)
10 A range: ±(3.0 % rdg + 3 dgts)
Input Protection 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses
10A Input 10 A for 60 sec max. followed by 10 min cooling period
Resis tance
Ranges 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 20 MΩ
Resolution 0.1 Ω, 1.0 Ω, 10 Ω, 100 Ω, 10 kΩ,
Accuracy 200 Ω to 200 kΩ ranges: ±(1.5 % rdg + 4 dgts)
20 MΩ range: ±(3.0 % rdg + 5 dgts)
Open Circuit Voltage (typical) 0.3 VDC (3.0 VDC on 200 Ω)
Overload Protection 500 VDC/ACrms
Diode Test
Test Current 1.0 mA (typical)
Resolution 10 mV
Accuracy ±(3.0 % rdg + 3 dgts)
Open Circuit Voltage 3.0 VDC (typical)
Overload Protection 500 VDC/ACrms
Continuity
Audible Indication Less than 100 Ω
Response Time 100 ms
Overload Protection 500 VDC/ACrms
General
Display 3 1/2 digit, 2000 count LCD
Polarity Automatic, positive implied, negative polarity indication
Overrange OL or -OL is displayed
Low Battery Indication Battery symbol will display when battery voltage drps below
operating levels
Measurement Rate 2.5 times per second
Operating Environment 0ºC to 50ºC at <70 % relative humidity
Storage Environment -20ºC to 60ºC at 0 to 80 % relative humidity
Accuracies Stated accuracy at 23ºC +5ºC at <75 % relative humidity
Temperature Coefficient 0.1 x (spec. accuracy) per ºC. (ºC to 18ºC, 28ºC to 50ºC)
Power Single 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life 200 hours typical
Dimensions 165 mm (H) x 78 mm (W) x 42.5 mm (D)
Weight Approximately 10 oz. (285 g) with battery and hanger
Manual Ranging Tool Kit
®
DMM
Model 2703C
Data Sheet
Technical data subject to change
© B&K Precision Corp. 2013
Page 1 of 2
Supplied Accessories: User manual, one set test of leads, one spare fuse, and 9V battery (installed)
Specifications
2
703C
Three-Year Warranty
model

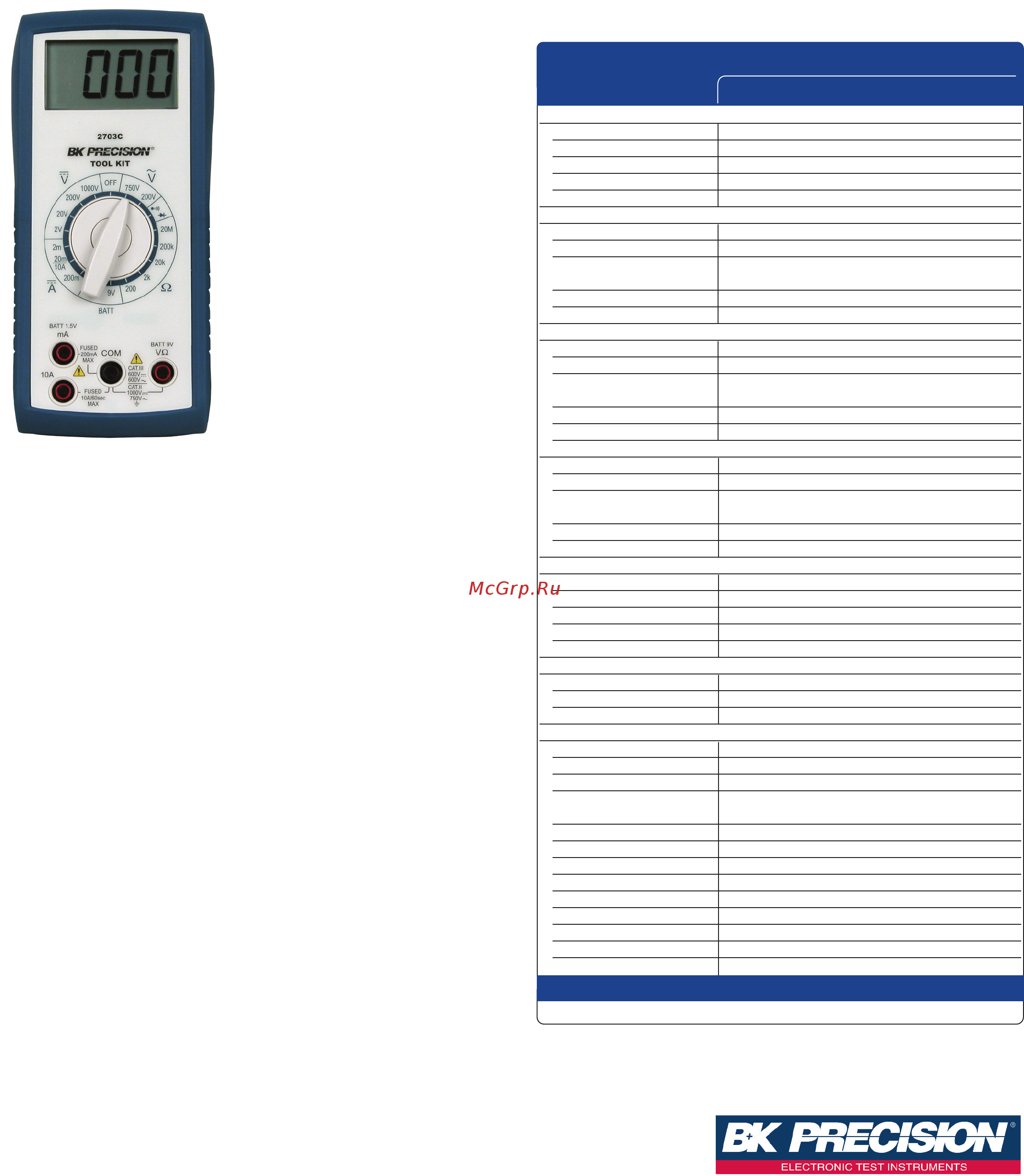

The 2703C is a versatile low cost manual ranging DMM that
combines performance, value and functionality. Value-packed features
make this meter a must in every "Tool Kit
®
".
Features
■ Magnetic hanger
■ One-handed operation
■ Measures up to 10 A (DC only)
■ DC voltage to 1000 V
■ AC voltage to 750 V
■ Resistance to 20 MΩ
■ Continuity test
■ Diode test
