3. OPERATING INSTRUCTION

3.1 MEASURING VOLTAGE

3.1.1 Connect the black test lead to the COM jack and the red test lead to the V/Ω jack.

3.1.2 Set the rotary switch at the desired “V” range position and connect test leads across the

source or load under measurement.

3.1.3 Put down the "AC/DC" when measuring the voltage. Meter will be transformed between DC

and AC range.

3.1.4 If you need data hold when measuring, you can put on “HOLD”, it will hold the reading; if you

put the button again, data hold will not continue.

3.1.5 When only the figure “1” is displayed, it indicates overrange situation and the higher range

has to be selected.

3.2 MEASURING CURRENT

3.2.1 Connect the black test lead to the COM jack and the red test lead to the A jack for

a maximum of 200mA. For a maximum of 10A, move the red lead to the 10A jack.

3.2.2 Set the rotary switch at desired “A” range position and connect test leads in series with the

load under measurement.

3.2.3 Put down the "AC/DC" when measuring the current. Meter will be transformed between DC

and AC range.

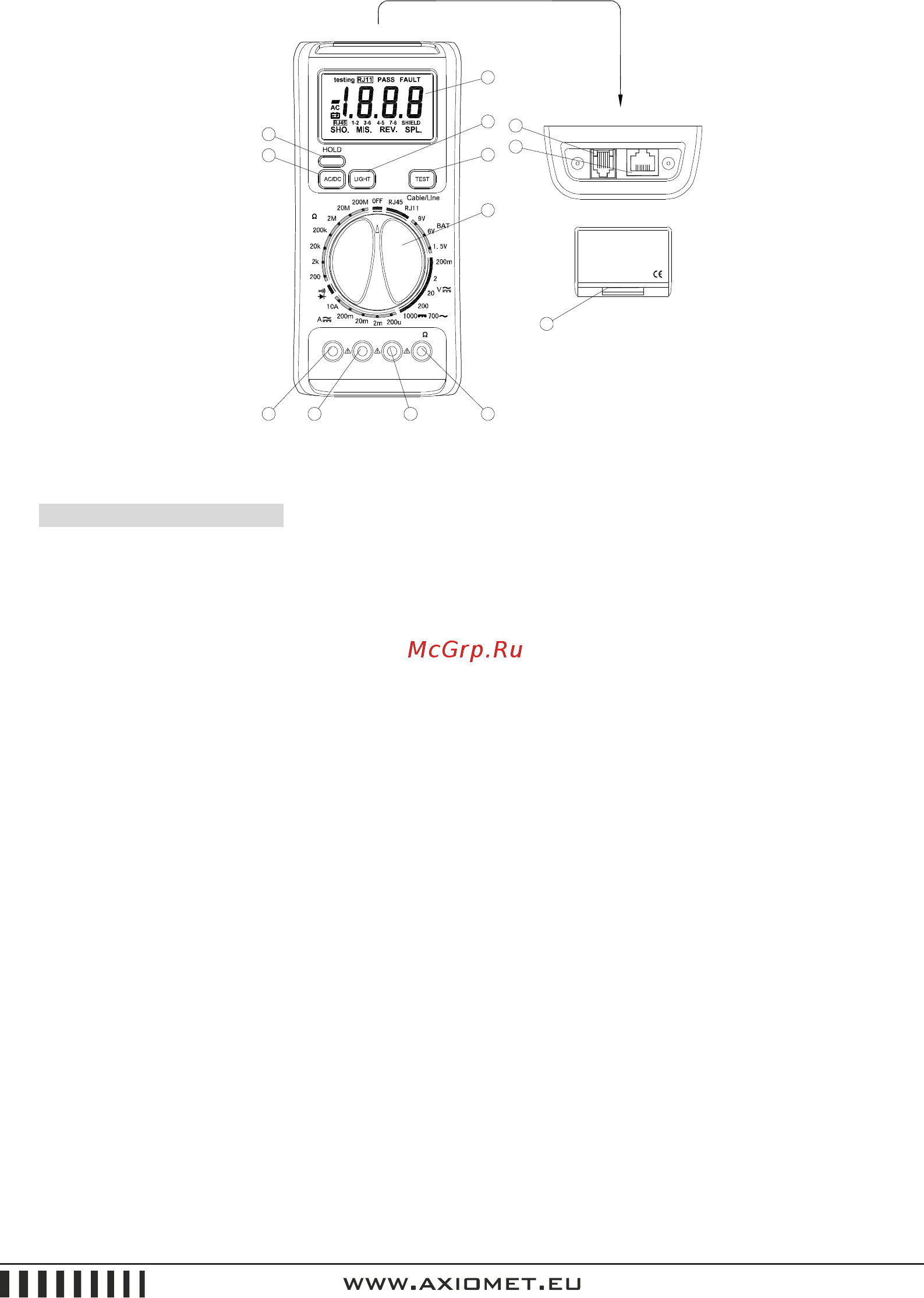

COM

10A

8765
