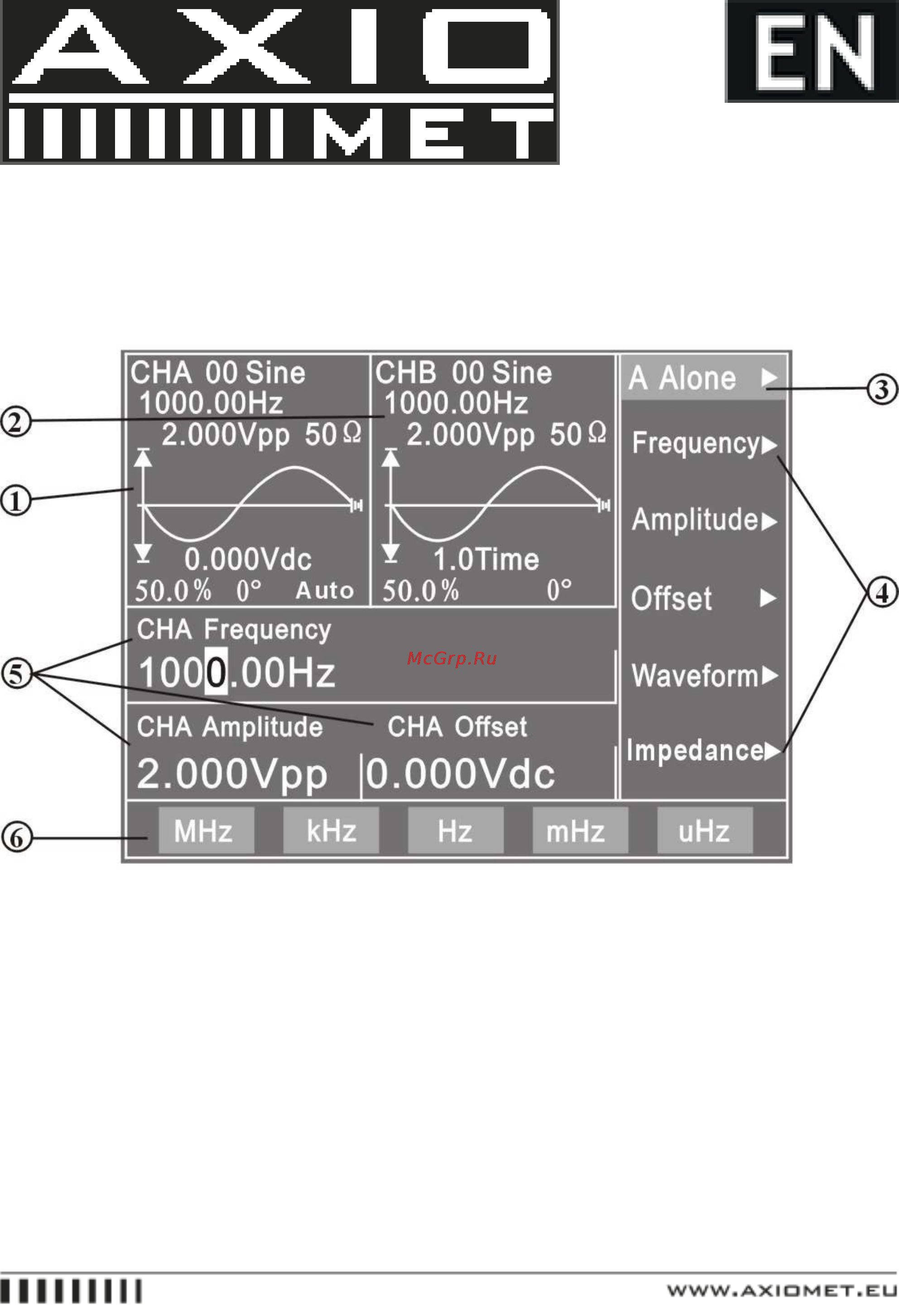

4.4. Description of TFT Display

1. Channel A waveform display: the waveform of channel A and preset parameters are displayed at the upper-left portion.

2. Channel B waveform display: the waveform of channel B and preset parameters are displayed at the upper-middle

portion.

3. Function menu: The first line on the right of the TFT displays the function menu.

4. Option menu: The second to the sixth lines display the option menu.

5. Parameter menu: Three of the waveform parameters of channel A are displayed at the middle of the lower-left portion.

6. Unit menu: The bottom line displays the unit menu.

4.5. Key Description

4.5.1.

On the front panel, there are 38 keys which are divided into five categories.
