AXIOMET AX-EL300W [23/72] Battery discharge operation

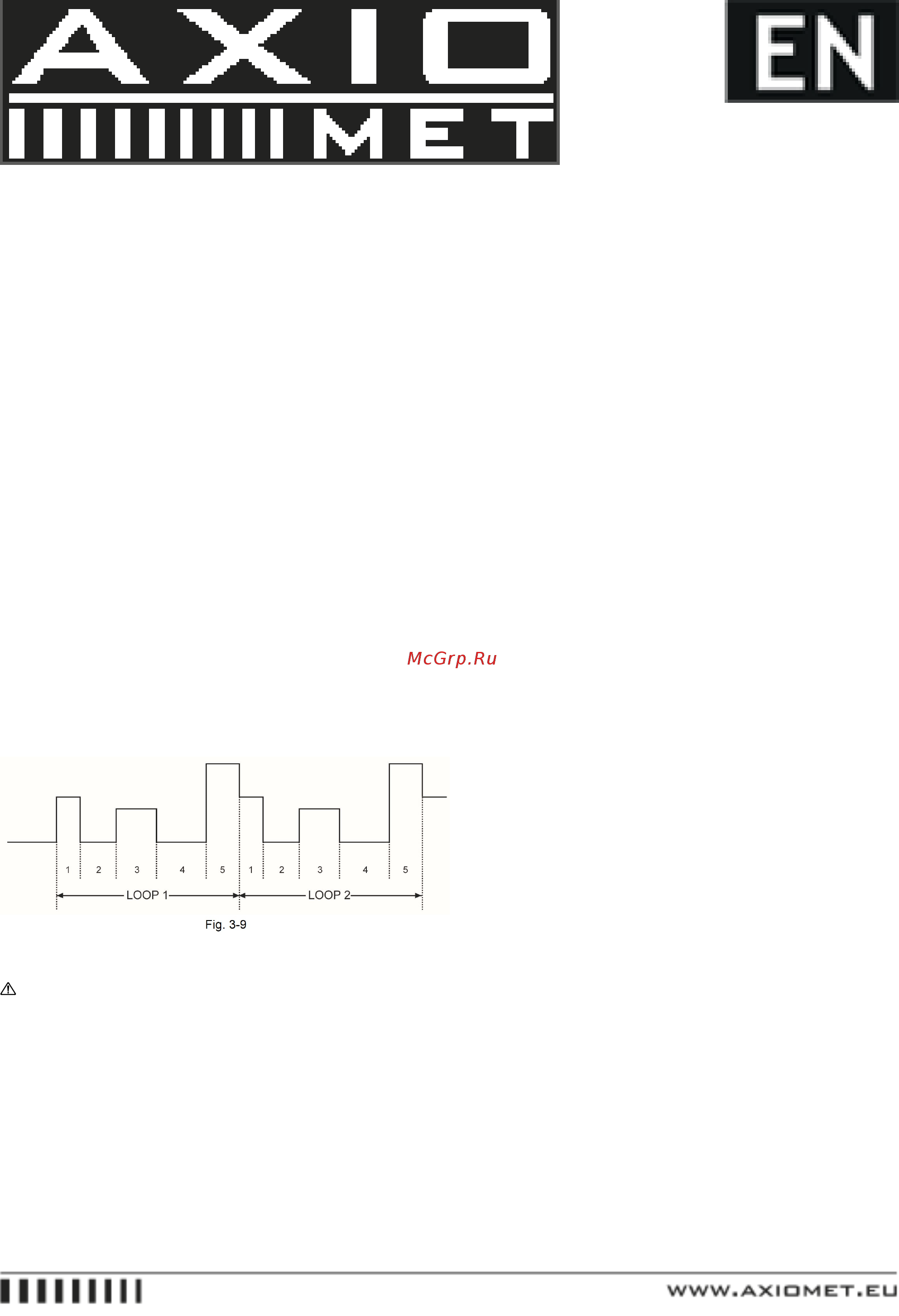

another chained list will be enabled, which further perfects the capability of the list test to implement

more complicated test task. Each list can contain 50 steps at most, and the load can store 8 lists.

The associated parameters of list operation can be edited and set through list operation menu or via remote

command. The load provides convenient list editing function. When the user is operating input/edit

sequence step, it is easy to check the previous and subsequent steps, and it is allowed to be edited, inserted,

and deleted immediately, which simplifies the list input operation effectively.

The set value of each step will be automatically saved when exiting from step edit menu, and the

other list parameters will be saved immediately after been edited.

The list operation also can be implemented via the remote command.

Note:

In list operation, the Von point and current limit level should be taken into consideration, which may cause

the shut down of the input, so that the list operation is interrupted.

3.6. Battery Discharge Operation

The electronic load adopts constant current discharge to test battery capacity. The discharge current,

termination voltage, and termination current can be self-defined. After the input is in ON status, constant

current discharge is excuted and switched to constant voltage discharge automatically when the battery

voltage decreases to the termination voltage. And the battery discharge test will be stopped automatically

when the discharge current is less than the termination current.
