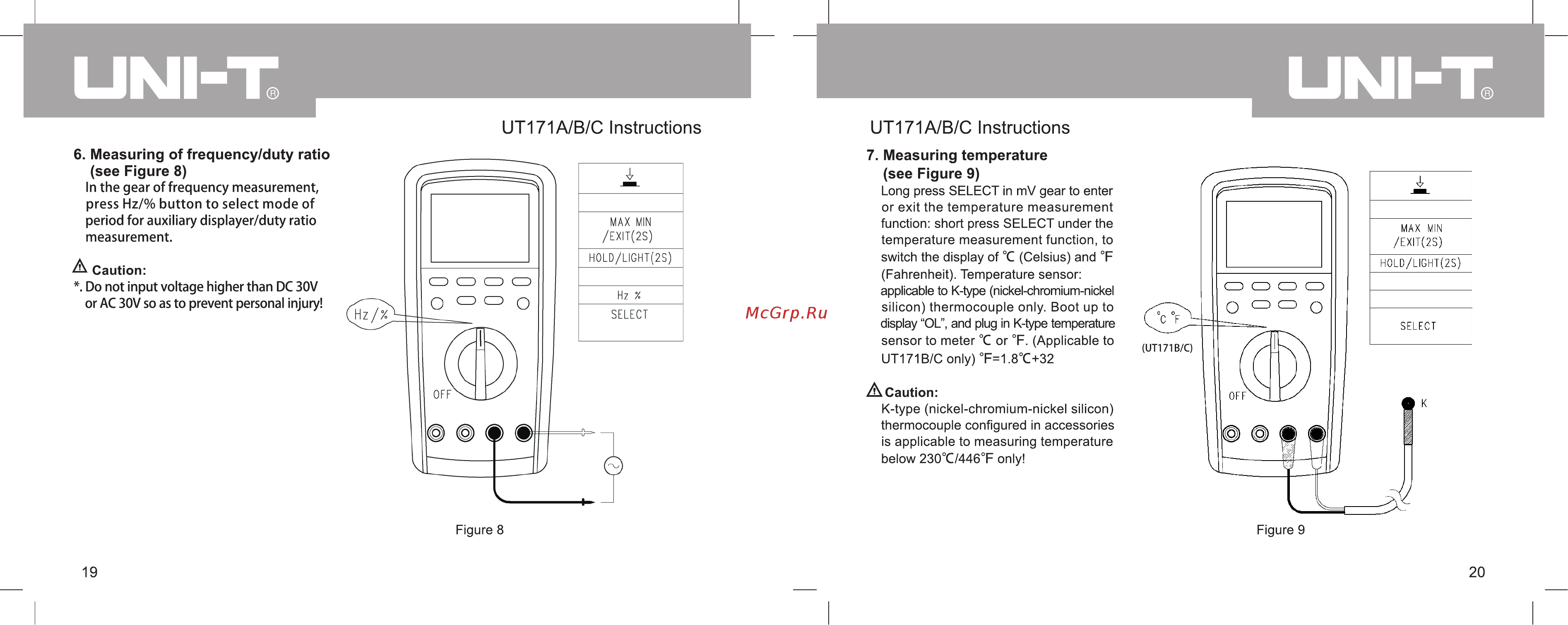

UT171A B C Instructions 6 Measuring of frequency duty ratio see Figure 8 In the gear of frequency measurement press Hz button to select mode of period for auxiliary displayer duty ratio measurement Caution Do not input voltage higher than DC 30V or AC 30V so as to prevent personal injury UT171A B C Instructions 7 Measuring temperature see Figure 9 Long press SELECT in mV gear to enter or exit the temperature measurement function short press SELECT under the temperature measurement function to switch the display of C Celsius and F Fahrenheit Temperature sensor applicable to K type nickel chromium nickel silicon thermocouple only Boot up to display OL and plug in K type temperature sensor to meter C or F Applicable to UT171B C only F 1 8 C 32 caution K type nickel chromium nickel silicon thermocouple configured in accessories is applicable to measuring temperature below 230 C 446 F only Figure 9 19 20
