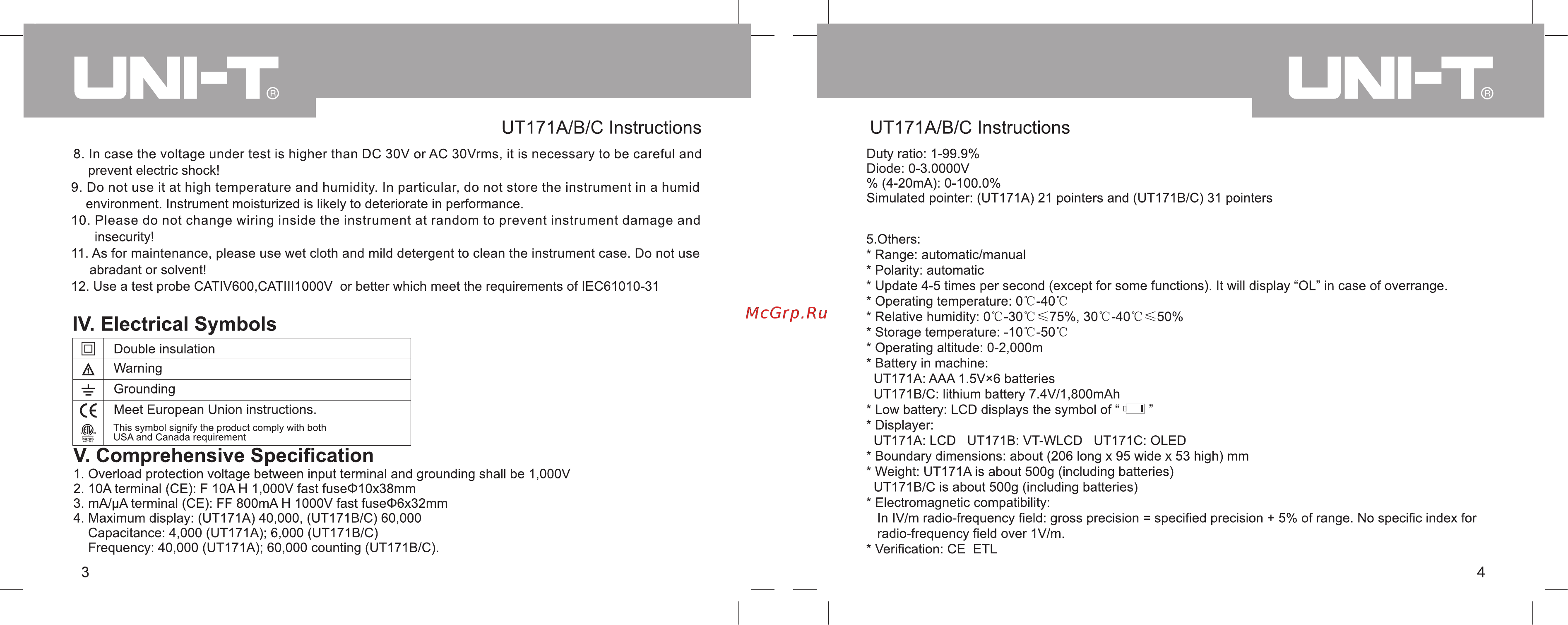

UT171A B C Instructions 8 In case the voltage under test Is higher than DC 30V or AC 30Vrms It Is necessary to be careful and prevent electric shock 9 Do not use it at high temperature and humidity In particular do not store the instrument in a humid environment Instrument moisturized is likely to deteriorate in performance 10 Please do not change wiring inside the instrument at random to prevent instrument damage and insecurity 11 As for maintenance please use wet cloth and mild detergent to clean the instrument case Do not use abradant or solvent 12 Use a test probe CATIV600 CATIII1000V or better which meet the requirements of IEC61010 31 IV Electrical Symbols О A Double insulation Warning _L_ Grounding S This symbol signify the product comply with both USA and Canada requirement Meet European Union instructions V Comprehensive Specification 1 Overload protection voltage between input terminal and grounding shall be 1 000V 2 10A terminal CE F 10AH 1 000V fast fuse t 10x38mm 3 mA pA terminal CE FF 800mA H 1000V fast fuse i 6x32mm 4 Maximum display UT171A 40 000 UT171B C 60 000 Capacitance 4 000 UT171A 6 000 UT171B C Frequency 40 000 UT171A 60 000 counting UT171B C 3 UT171A B C Instructions Duty ratio 1 99 9 Diode 0 3 0000V 4 20mA 0 100 0 Simulated pointer UT171A 21 pointersand UT171B C 31 pointers 5 Others Range automatic manual Polarity automatic Update 4 5 times per second except for some functions It will display OL in case of overrange Operating temperature 0 C 40 C Relative humidity 0C 30 C 75 30 C 40 C 50 Storage temperature 10 C 50 C Operating altitude 0 2 000m Battery in machine UT171A AAA 1 5Vx6 batteries UT171B C lithium battery 7 4V 1 800mAh Low battery LCD displays the symbol of EU Displayer UT171A LCD UT171B VT WLCD UT171C OLED Boundary dimensions about 206 long x 95 wide x 53 high mm Weight UT171Ais about 500g including batteries UT171 B С is about 500g including batteries Electromagnetic compatibility In IV m radio frequency field gross precision specified precision 5 of range No specific index for radio frequency field over 1 V m Verification CE ETL 4
