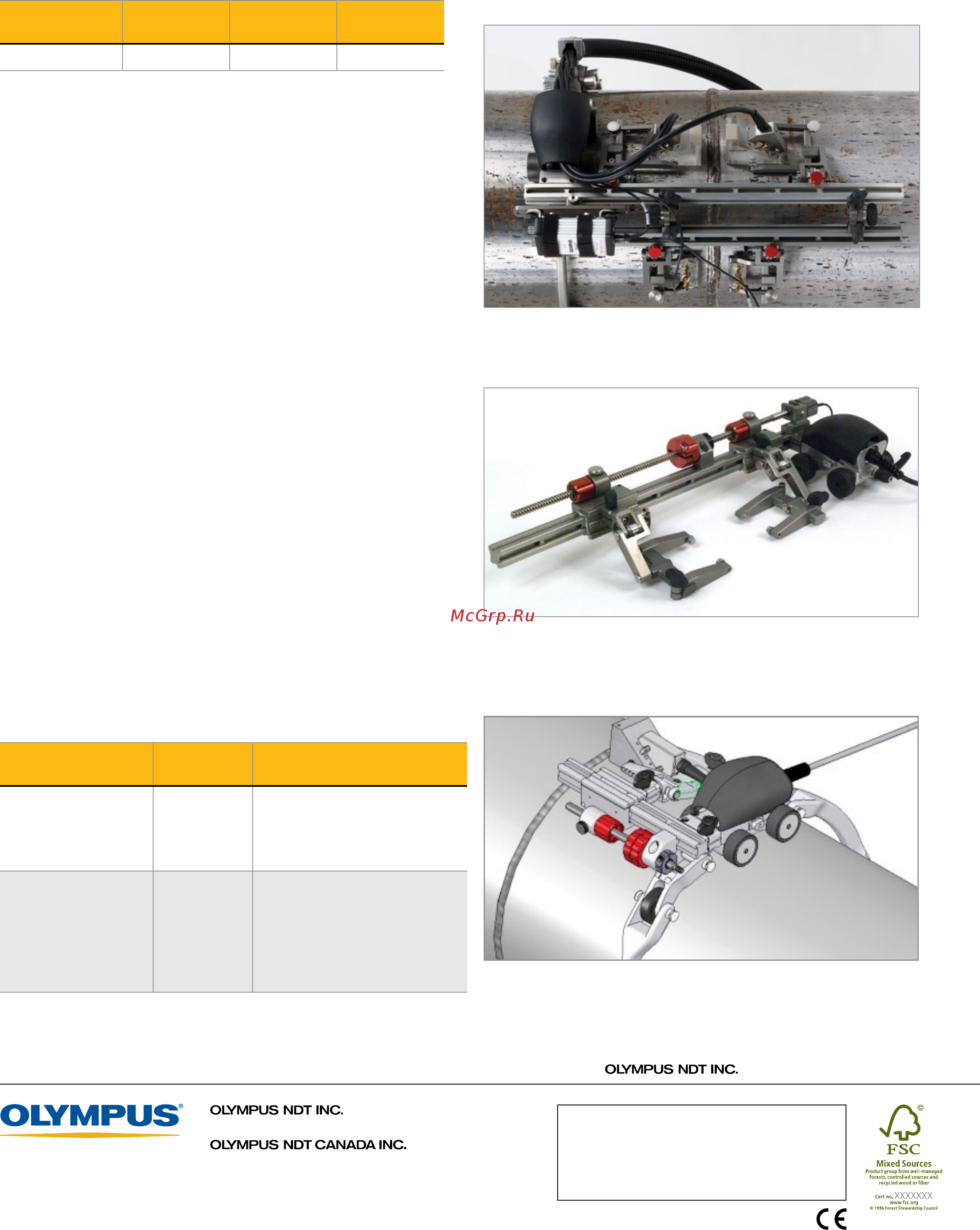

Olympus ChainSCANNER [2/2] Additional packages

48 Woerd Avenue, Waltham, MA 02453, USA, Tel.: (1) 781-419-3900

12569 Gulf Freeway, Houston, TX 77034, USA, Tel.: (1) 281-922-9300

505, boul. du Parc-Technologique, Québec (Québec) G1P 4S9, Tel.: (1) 418-872-1155

1109 78 Ave, Edmonton (Alberta) T6P 1L8

www.olympus-ims.com

info@olympusNDT.com

*All specications are subject to change without notice.

All brands are trademarks or registered trademarks of their respective owners and third party entities.

is ISO 9001 and 14001 certiﬁed.

Speciﬁcations

Length in scan

axis (mm)

Width (mm) Height (mm) Weight (kg)

114 75 84 1

Note: speciﬁcations above apply to the main module

Encoder resolution:

Circumferential (X) axis: 19.2steps/mm

Longitudinal (Y) axis: 226.8steps/mm

Options:

Probes and Wedges*

See Olympus’ “Phased Array Ultrasonic Probe” and “Ultrasonic Trans-

ducers” catalogs

TomoScan FOCUS LT Encoder Cable Adaptor

Part number: C1-DE15F-BXM-0.30M [U8767107]

Couplant-Feed Units

Manual Water Pump

Part number: WTR-SPRAYER-8L [U8775001]

Electric Water Pump

Part number: CFU03 [U8780008]

1-Channel TOFD Preampliﬁer

Part number: 5682 [U8120006]

Chain Links

CHAIN scanner short link. For pipe OD less than 9.6in.

Part number: ChainScan-A-Slink [U8775127]

CHAIN scanner long link. For pipe OD greater than 9.6in.

Part number: ChainScan-A-LgLink [U8750042]

Arm Stabilizer

CHAIN Scanner arm stabilizer kit. Includes a magnetic wheel block and

the holder.

P/N: ChainScan-A-Stabilizer [U8775210]

* Wedge must be of the IHC type (hole, irrigation, and carbides) in order to be used with the scanner.

Ordering information

Part Number

Item

Number

Description

ChainScan-XY38 U8750041

CHAIN Scanner for 45mm

to 965mm (1.75in. to 38in.)

OD pipes with two encoded

axes.

ChainScan-SP-Basic U8779370

Basic spare part kit for the

CHAIN Scanner which

includes: lead screw and

lever for buckle, wedge pivot

buttons, dovetail nuts, tool,

plastic wheel, and screws.

Additional Packages

Two Additional Probe Package

Needed to perform inspections with four probes on the CHAIN Scanner.

P/N: ChainScan-A-4Probe [U8775128]

Mouse Package

Needed to use the CHAIN Scanner as a mouse scanner with magnetic

wheels holding the system instead of chain links.

P/N: ChainScan-A-Mouse [U8750037]

Short Bar Package

A 20cm probe-holder bar and lead screw kit for restricted space

applications.

P/N: ChainScan-A-SBar [U8775129]

Olympus ChainSCANNER [2/2] Additional packages
