Features

Folding frame to optimize probe contact on ■

pipes

Compact and versatile. The provided frame bars ■

allow size customization.

Full range of pulse-echo and TOFD probes and ■

wedges, including the composite CentraScan

™

series

Can support up to 4 conventional or phased ■

array probes on pipes

Can support up to 8 conventional or phased ■

array probes on ﬂat surfaces.

Light aluminum frame ■

Fully adjustable probes positions ■

Metric/English rulers on the scanner frame for ■

easy probe separation measurement

Probe holders are independently spring-loaded ■

Splashproof spring-loaded wheel encoder ■

Removable handles ■

Eyelet for umbilical attachment ■

The water manifold is integrated to the scanner ■

frame

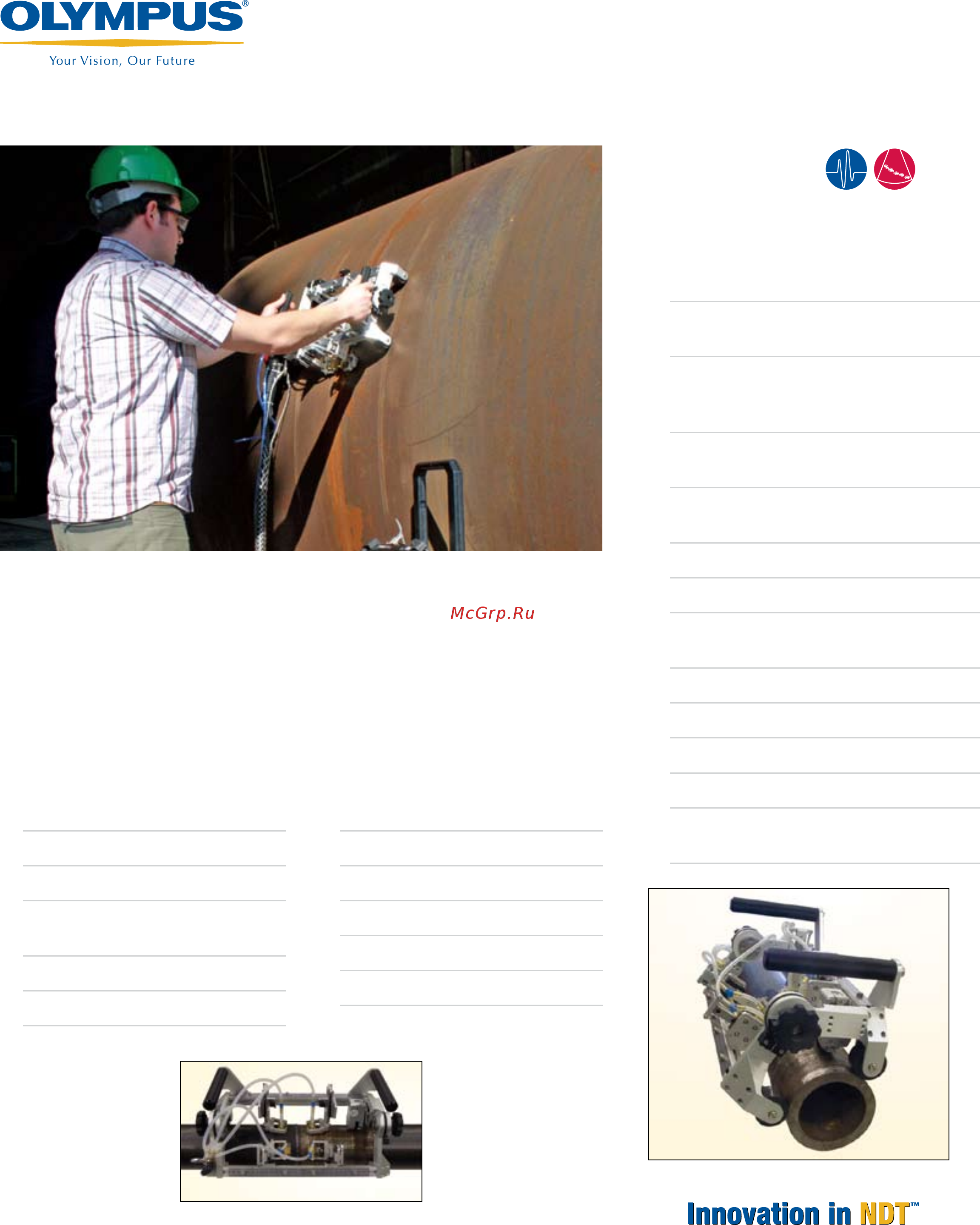

Pre-Service Weld Inspection Manual Scanner

The R/D Tech

HSMT-Flex is intended for the inspection of circumferential welds on pipes

4 in. OD and up using four probes. It can also be used on plates with up to eight probes.

The scanner offers an efﬁcient way to make a complete manual weld inspection. It can

perform TOFD, pulse-echo, and phased array inspection separately or all at once.

The basic conﬁguation is intended for cons truction welding inspection. In order to be

used in more restricted areas, the scanner can also be reconﬁgured with the provided short

frame bars.

HSMT-Flex Kit Includes:

Scanner frame ■

Two additional 200-mm (8 in.) frame bars ■

Four magnetic wheels ■

Splashproof spring-loaded wheel ■

encoder

5-m encoder cable for OmniScan ■

Four metric/English rulers ■

Four 90º-probe holder brackets ■

Four spring-loaded arms (SLA) ■

Four TOFD/PE 40-mm yokes ■

Two PA 40-mm yokes ■

Irrigation tubing and accessories ■

Hard carrying case ■

Note: Umbilical cable, probes, and wedges are not included in

the basic kit.

HSMT-Flex

Manual Scanner
