12
2 Nomenclature

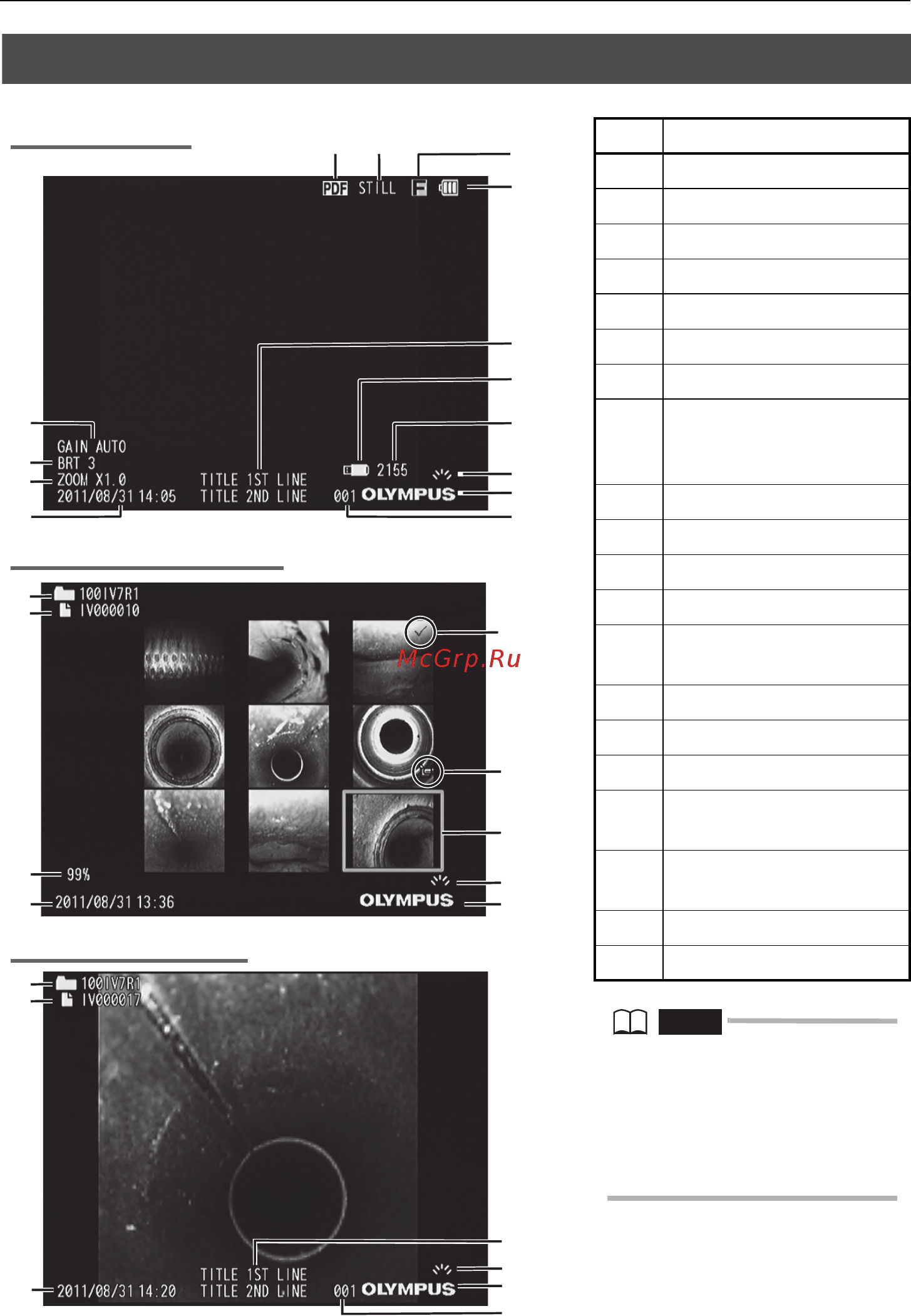

2.3 LCD monitor nomenclature
No. Name
1 Gain mode
2 Brightness level
3 Zoom level
4 Date/Time
5 Serial number
6 Logo
7 Light indicator
8 Number of images or
length of time that
movies can be recorded
9 USB flash drive indicator
10 Title
11 Battery indicator
12 Freeze indicator
13 Recording/playback
indicator
14 PDF indicator
15 Folder name
16 File name
17 Remaining media
capacity
18 Thumbnail selection
frame
19 MOVIE image indicator
20 Mark
NOTE
• The displayed title is the title that
was entered on the Live screen the
last time the system was used.
• Should you notice any dirt, stains,
or other abnormalities on the LCD
monitor, see "7 Storage and
maintenance" (P. 44).
1
3
2
4
5
6
7
8
9
10
11
12
15
Live screen
Thumbnail screen
16
17
4
6
7
18
Retrieve screen
19
13
6
7
5
10
4
15
16
20
14
