Olympus IPLEX TX [51/58] Storage precautions
![Olympus IPLEX TX [51/58] Storage precautions](/views2/1665797/page51/bg33.png)
46
7 Storage and maintenance
1 Be sure to turn off power and remove the battery or unplug the AC adapter.

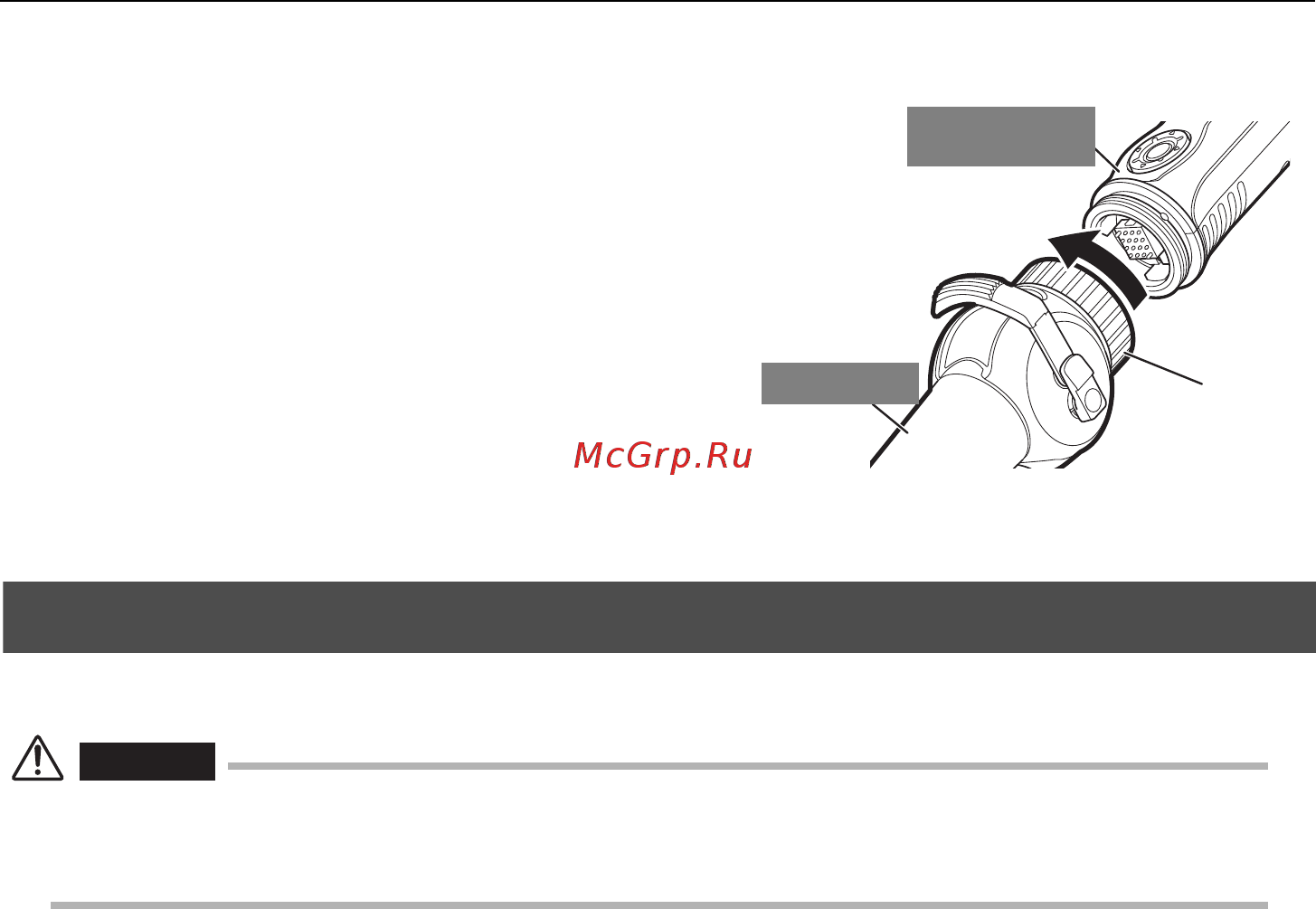

2 Turn the fastening ring on the angulation
control unit in the direction of the arrow
to loosen it.
3 Remove the scope unit from the button
control unit.
4 Connect and initialize the new scope
unit.
See "3 Mounting the scope unit" (P. 13) for how
to attach and initialize a new scope unit.
7.4 Storage precautions
Store this product under normal room temperature and humidity.
CAUTION
• Never subject cables to severe bending, pulling, binding, twisting, or crushing forces. Do not allow a cable
to be exposed to heat, which can melt its covering. Otherwise, the cable might be damaged, which can
lead to fire and electric shock.
1 Turn off power and remove the battery or unplug the AC adapter.
2 Unlock the angulation lock, and pack the instrument in the carrying case with
the angulation section straight.
3 Store the equipment on a level surface in a clean, dry and stable place.
Scope unit
Button control
unit
Fastening ring
