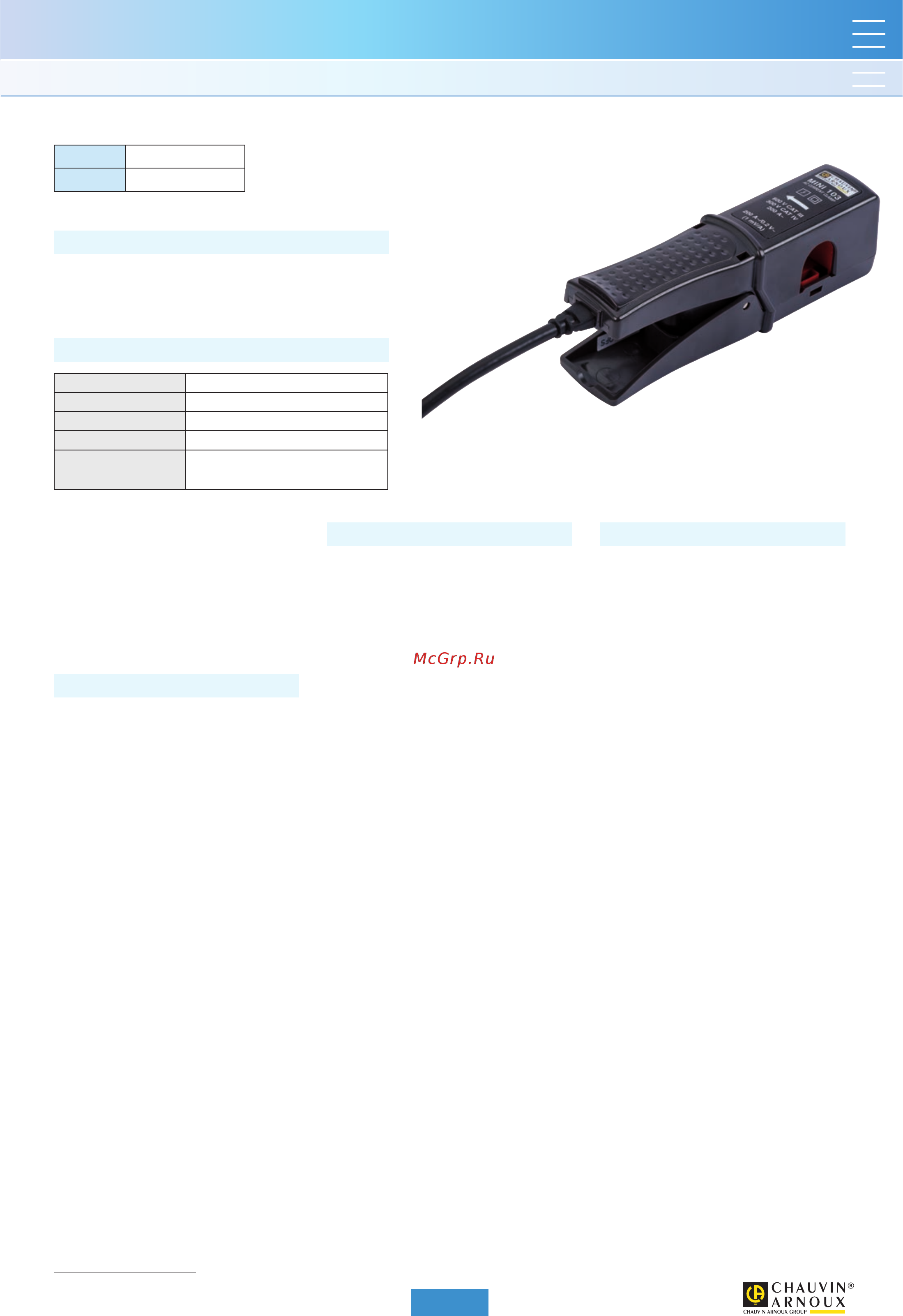

CHAUVIN ARNOUX CA-MINI-01 [11/12] Description

Serie MN

Pinces ampèremetriques pour courant AC

Non-contractual document

906131102A - Ed 1

1.06 (3/4)

Current clamp for AC current

MINI 100 series

•

Output:

Double-insulated cable 1.5 m long, terminated

by 2 insulated elbowed male banana connectors

Ø4mm

•

Bandwidth:

48 Hz .. 10 000 Hz

•

Clamping capacity:

Cable Ømax 16mm

ELECTRICAL SPECIFICATIONS

•

Load impedance:

≥ 10 kΩ

•

Inﬂ uence of load impedance:

See curves

•

Maximum currents:

350 A permanent at a frequency ≤ 1 kHz.

200 A permanent at a frequency ≤ 8 kHz

(limitation proportional to the reciprocal of the

frequency beyond that)

•

Inﬂ uence of temperature:

≤ 0.2 % per 10 °K

•

Inﬂ uence of adjacent conductor:

≤ 2 mA / A at 50 Hz

•

Inﬂ uence of conductor position in jaws:

≤ 0.08 % at 50/60 Hz

•

Inﬂ uence of frequency:

≤ 1 % typique

MECHANICAL SPECIFICATIONS

•

Operating temperature:

-10 °C to +50 °C

•

Storage temperature:

-40 °C to +80°C

•

Relative humidity for operation:

From 0 to 85% RH with a linear decrease above

35°C

•

Operating altitude:

0 to 2,000 m

•

Casing protection rating (leakprooﬁ ng):

IP20

(2)

(EN60529 Ed. 2001)

•

Drop test:

1 m (IEC 68-2-32)

•

Dimensions:

130.4 x 46 x 34mm

•

Weight:

approx. 250 g

•

Colour:

Black casing

SAFETY SPECIFICATIONS

•

Electrical safety:

Instrument with double insulation or

reinforced insulation between the primary,

the secondary and the grippable part located

under the guard as per EN 61010-1 Ed.2:2001,

EN 61010-2-031 Ed. 2002 & EN 61010-2-032

Ed.2003

- 600 V categoryIII, pollution degree 2

- 300 V category IV, pollution degree 2

•

Electromagnetic compatibility:

CE-certiﬁ ed equipment compliant with standard

EN61326-1: 2006

- Emission: stipulations for class B equipment

(domestic use).

- Immunity: stipulations for equipment used

intermittently on industrial sites.

Calibre

200 A AC

Sensitivity

1 mV / A

DESCRIPTION

The MINI 103 current clamp is the ideal companion for any multimeter to

measure AC currents in tertiary or industrial applications.

When used with an AC voltmeter, it enables you to read the current

measured directly on the voltmeter.

MAIN SPECIFICATIONS

(1)

Calibre 200 A

Measurement range 0.1 A .. 200 AAC

Accuracy in% ≤ 1.5 % + 0.02 A

Phase shift ≤ 3°

Output signal

1 mVAC / AAC

(200 mV for 200 A)

Model MINI 103
