Serie MN

Pinces ampèremetriques pour courant AC

Non-contractual document

906131102A - Ed 1

1.01 (1/1)

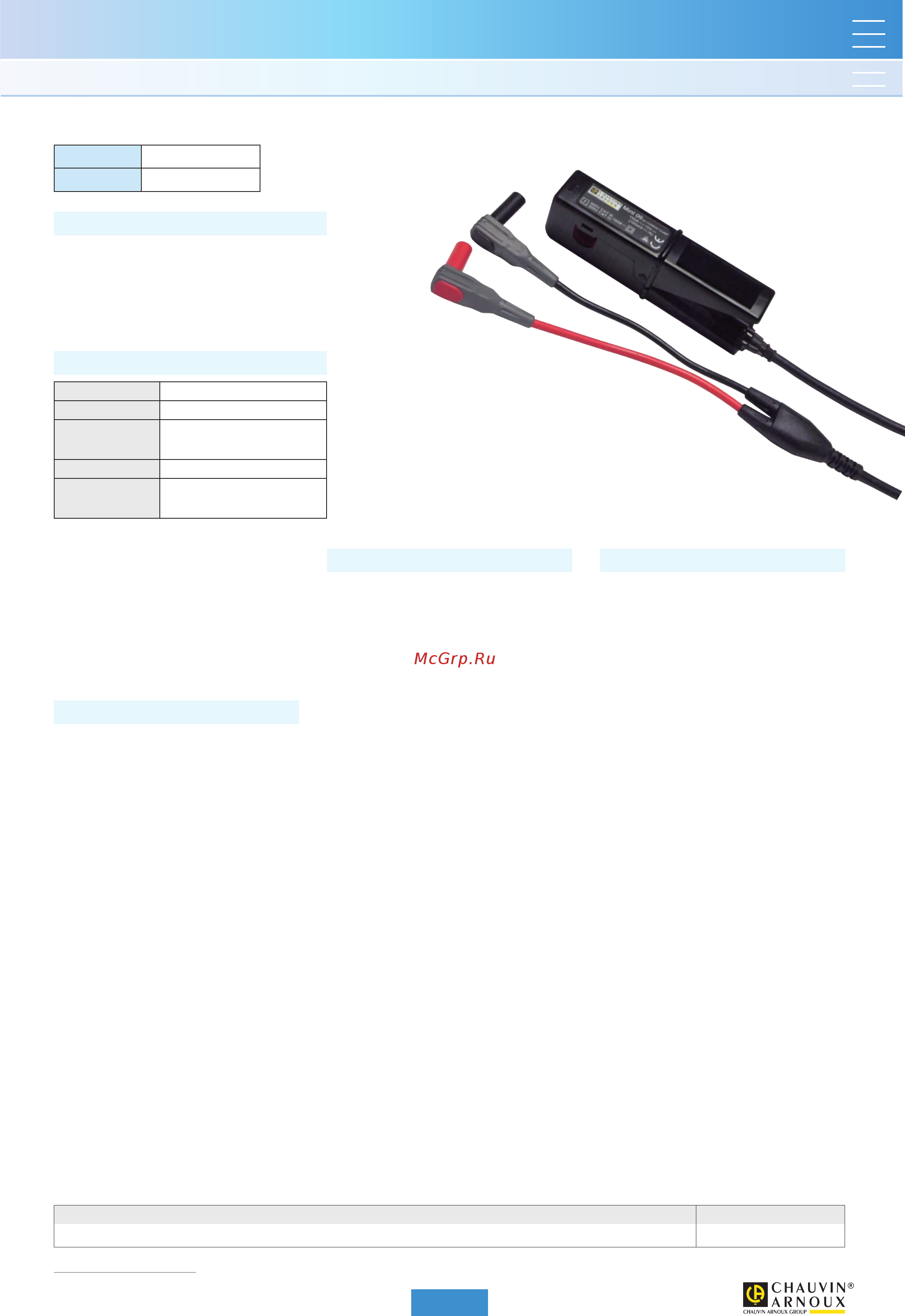

MINI series

Current clamp for AC current

Model MINI 01

To order Reference

AC current clamp model MINI 01 with operating manual P01105101Z

•

Output:

Double-insulated cable 1.5 m long, terminated

by 2 insulated elbowed male banana connectors

Ø4mm

•

Bandwidth:

48 Hz .. 500 Hz

•

Clamping capacity:

Cable Ømax 10mm

ELECTRICAL SPECIFICATIONS

•

Load impedance:

≤10 Ω

•

Maximum currents:

I <150 A permanent from 48 Hz .. 500 Hz

•

Inﬂ uence of temperature:

≤0.2% per 10 °K

•

Inﬂ uence of adjacent conductor:

≤2 mA / A at 50 Hz

•

Inﬂ uence of conductor position in jaws:

≤0.1% at 50/60 Hz

•

Inﬂ uence of frequency:

≤2% from 65 Hz to 500Hz

•

Maximum output voltage (secondary open):

30 V

(1) Conditions of reference: 23 °C ± 3 °K, 20 °C to 75% RH, sinusoidal signal with frequency of 48 Hz to 65 Hz, distortion factor <1% with no DC component, external DC magnetic ﬁ eld <40A/m,

no external AC magnetic ﬁ eld, no external conductor with circulating current, conductor centred for measurement, measurement instrument load impedance ≤10 Ω.

(2) With clamp closed.

(3) Vibrations expressed inmm peak, scanning of 1 octave/minute for 10 minutes on 3 axes.

MECHANICAL SPECIFICATIONS

•

Operating temperature:

-10 °C to +50 °C

•

Storage temperature:

-40 °C to +80°C

•

Relative humidity for operation:

From 0 to 85% RH with a linear decrease above

35°C

•

Operating altitude:

0 to 2,000 m

•

Casing protection rating (leakprooﬁ ng):

IP40

(2)

(EN60529 Ed. 1992)

•

Drop test:

1.5 m (IEC68-2-32)

•

Shock resistance:

100 g / 6 ms / half-period (IEC68-2-27)

•

Vibration resistance

(3)

5-15 Hz (1.5 mm), 15-25 Hz (1 mm), 25-55 Hz

(0.25mm) (IEC68-2-6)

•

Self-extinguishing capability:

casing UL94 V2

•

Dimensions:

130 x 37 x 25mm

•

Weight:

approx. 180 g

•

Colour:

Black casing

SAFETY SPECIFICATIONS

•

Electrical safety:

Instrument with double insulation or

reinforced insulation between the primary,

the secondary and the grippable part located

under the guard as per EN 61010-1 Ed.2:2001,

EN 61010-2-031 Ed. 2002 & EN 61010-2-032

Ed.2003

- 600 V categoryIII, pollution degree 2

- 300 V category IV, pollution degree 2

•

Electromagnetic compatibility:

CE-certiﬁ ed equipment compliant with standard

EN61326-1 (Ed. 97) + A1 (Ed. 98) + A2 (Ed. 01)

- Emission: stipulations for class B equipment

(domestic use).

- Immunity: stipulations for equipment used

intermittently on industrial sites.

Calibre

150 A AC

Sensitivity

1 mA / A (1000 / 1)

DESCRIPTION

Small and compact, the MINI 01 current clamp is the ideal

complement for any multimeter to measure AC currents in

low-power tertiary or industrial applications.

If there is a current in the conductor clamped, the

MINI 01 clamp is protected against overvoltages during

disconnection from the measurement instrument.

MAIN SPECIFICATIONS

(1)

Calibre 150 A

Measurement range 2 A .. 150 A

Accuracy of primary

current in%

≤2.5% + 0.15 A (load 1 Ω)

≤3% + 0.15 A (load 10 Ω)

Phase shift not specified

Output signal

1 mAAC / AAC (1000 / 1)

(150 mA for 150 A)
