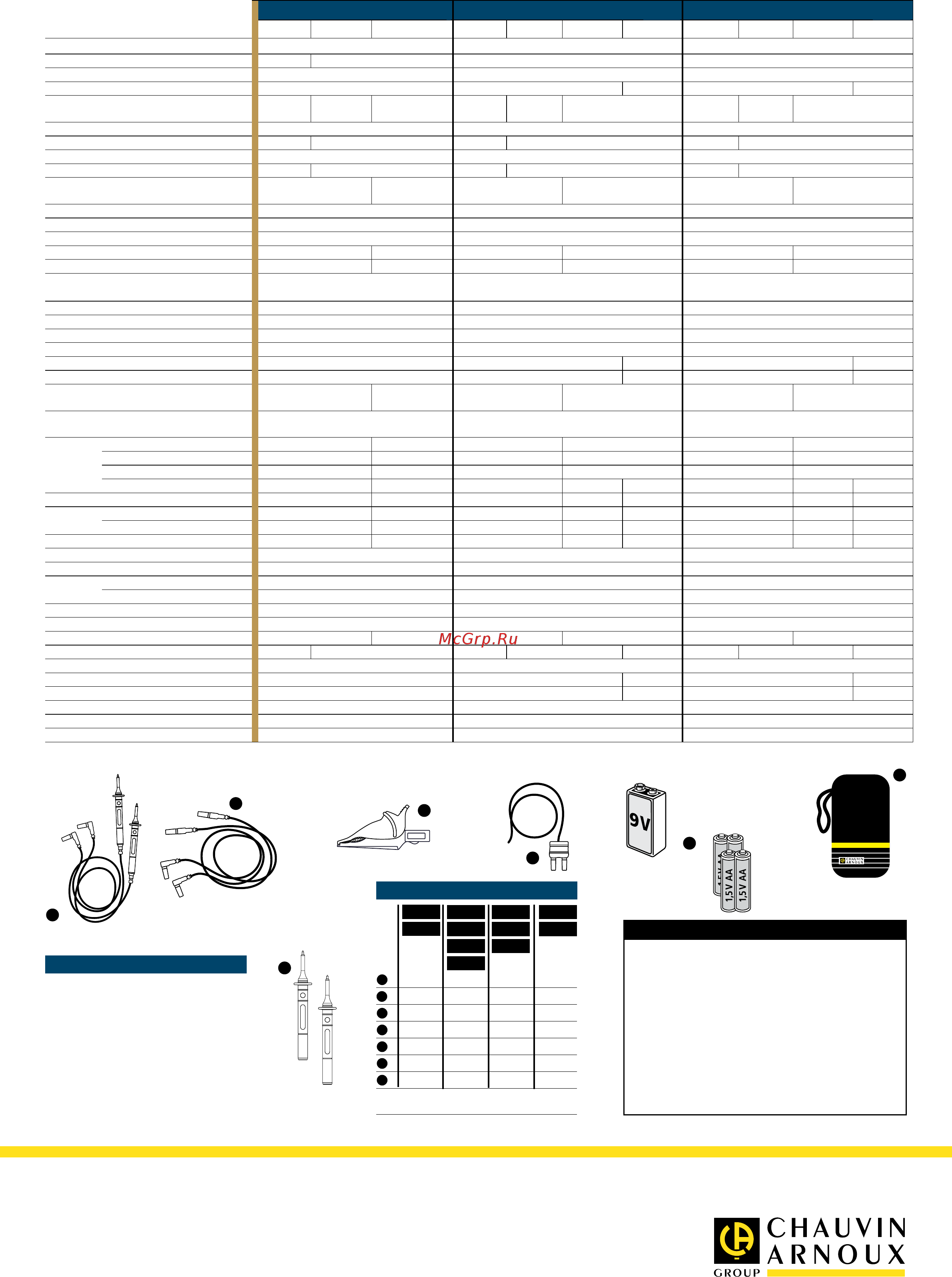

![CHAUVIN ARNOUX CA-F607 [8/8] F407 f607](/views2/1665966/page8/bg8.png)
MIDDLE EAST
Chauvin Arnoux Middle East
P.O. BOX 60-154
1241 2020 JAL EL DIB - LEBANON
Tel: +961 1 890 425
Fax: +961 1 890 424
camie@chauvin-arnoux.com
www.chauvin-arnoux.com
UNITED KINGDOM
Chauvin Arnoux LTD
Unit 1 Nelson Ct, Flagship Sq, Shaw Cross Business Pk
Dewsbury, West Yorkshire - WF12 7TH
Tel: +44 1924 460 494
Fax: +44 1924 455 328
info@chauvin-arnoux.co.uk
www.chauvin-arnoux.com
FRANCE
Chauvin Arnoux
190, rue Championnet
75876 PARIS Cedex 18
Tel: +33 1 44 85 44 38
Fax: +33 1 46 27 95 59
export@chauvin-arnoux.fr
www.chauvin-arnoux.com
TO ORDER
F201 ................. P01120921
F203 ................. P01120923
F205 ................. P01120925
F401 ................. P01120941
F403 ................. P01120943
F405 ................. P01120945
F407 ................. P01120947
F601 ................. P01120961
F603 ................. P01120963
F605 ................. P01120965
F607 ................. P01120967
For assistance and ordering
906211256 – Ed. 4 – 07/2017 – Non contractual document. Conrm specications before ordering.
1.5 V for
F400 / F600 Series
1
5
2
6
3
7
4
x 1
x 1 x 1 x 1
x 1 x 1 x 1
x 1 x 2
x 1 x 1
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
+ Start-up Guide and Operating Manual
(5 languages) on CD-Rom
STATE AT DELIVERY
F201
F203
F401
F601
F403
F603
F205
F605
F405
F407
F607
1
5
2
6
3
7
4
9 V for F200 Series
F200 SERIES F400 SERIES F600 SERIES
Model F201 F203 F205 F401 F403 F405 F407 F601 F603 F605 F607
Clamping diameter
34 mm 48 mm 60 mm
Display
LCD
Backlit
LCD
Backlit
LCD
Backlit
LCD
Resolution
6,000 counts 10,000 counts 10,000 counts
Number of values displayed
1 1 3 1 3
Type of acquisition
TRMS
[AC]
TRMS
[AC]/DC
TRMS
[AC, AC+DC]/DC
TRMS
[AC]
TRMS
[AC]/DC
TRMS
[AC, AC+DC]/DC
TRMS
[AC]
TRMS
[AC]/DC
TRMS
[AC, AC+DC]/DC
Autorange
Yes Yes Yes
Automatic AC / DC detection
- Yes - Yes - Yes
A AC
0.25 to 600 A (900 A peak) 0.25 to 1,000 A (1,500 A peak) 0.25 to 2,000 A (3,000 A peak)
A DC
- 0.25 to 900 A - 0.25 to 1500 A - 0.25 to 3,000 A
A AC+DC
-
0.25 to 600 A
(900 A peak)
-
0.25 to 1,000 A
(1,500 A peak)
-
0.25 to 2,000 A
(3,000 A peak)
Best accuracy
1 % L. + 3
cts
1 % L. + 3
cts
1 % L. + 3
cts
V AC
0.15 to 1,000 V 0.15 to 1,000 V 0.15 to 1,000 V
V DC
0.15 to 1,000 V 0.15 to 1,000 V 0.15 to 1,000 V
V AC+DC
- 0.15 to 1,000 V - 0.15 to 1,000 V - 0.15 to 1,000 V
Best accuracy
- 1 % reading + 3
cts
- 1 % reading + 3
cts
- 1 % reading + 3
cts
Hz
Current
: 5,0 Hz to 3,000 Hz
Voltage
: 5,0 Hz to 20.00 kHz
Current
: 5,0 Hz to 2,000 Hz
Voltage
: 5,0 Hz to 20.00 kHz
Current
: 5,0 Hz to 1,000 Hz
Voltage
: 5,0 Hz to 20.00 kHz
Ohm
0.1 Ω to 59.99 kΩ 0.1 Ω to 99.99 kΩ 0.1 Ω to 99.99 kΩ
Open-circuit voltage
≤ 8 V ≤ 8 V ≤ 8 V
Measurement current
≤ 680 µA ≤ 680 µA ≤ 680 µA
Audible continuity
Yes Yes Yes
Continuity threshold
adjustable from
1 to 599 Ω
adjustable from
1 to 999 Ω 40 Ω
adjustable from
1 to 999 Ω 40 Ω
Diode test (semiconductor junction)
Yes Yes No Yes No
Temperature (K type)
°C: -60.0 to +1,000.0 °C
°F: -76,0 to +1,832 °F
-
°C: -60.0 to +1,000.0 °C
°F: -76,0 to +1,832 °F
-
°C: -60.0 to +1,000.0 °C
°F: -76,0 to +1,832 °F
-
Single-phase and
total three-phase power values
Yes Yes Yes
Active power
- 1 W to 600 kW - 1 W to 1,000 kW - 1 W to 2,000 kW
Reactive power
- 1 var to 600 kvar - 1 var to 1,000 kvar - 1 var to 2,000 kvar
Apparent power
- 1 VA to 600 kVA - 1 VA to 1,000 kVA - 1 VA to 2,000 kVA
FP / DPF
- Yes / No - Yes / No Yes / Yes - Yes / No Yes / Yes
Harmonic analysis
- Yes - Yes Yes - Yes Ye s
THD
f
/ THD
r
- Yes / Yes - Yes / Yes Yes / Yes - Yes / Yes Yes / Yes
Frequency analysis
- No - No
25th order
- No
25th order
Phase rotation
(2-wire method)
- Yes - Yes - - Yes -
Functions
True InRush (Overcurrent measurement)
Yes Yes Yes
Motor inrush
Yes Yes Yes
Load change
Yes Yes Yes
Hold
Yes Yes Yes
Min. / Max.
Yes Yes Yes
Peak+ / Peak-
- Yes - Yes Yes
RELative ∆X / Differential ∆X/X (%)
- Yes / Yes - Yes / Yes - - Yes / Yes -
Auto Power Off
Yes Yes Yes
Data recording
- - Yes - Yes
Communication interface
- - Bluetooth - Bluetooth
Electrical safety as per IEC 61010
600 V CAT IV 1000 V CAT IV & CAT III 1,000 V CAT IV & CAT III
Power supply
1 x 9 V LF22 4 x 1.5 V AA 4 x 1.5 V AA
Dimensions & weight
78 x 222 x 42 mm / 340 g 92 x 272 x 41 mm / 600 g 111 x 296 x 41 mm / 640 g
