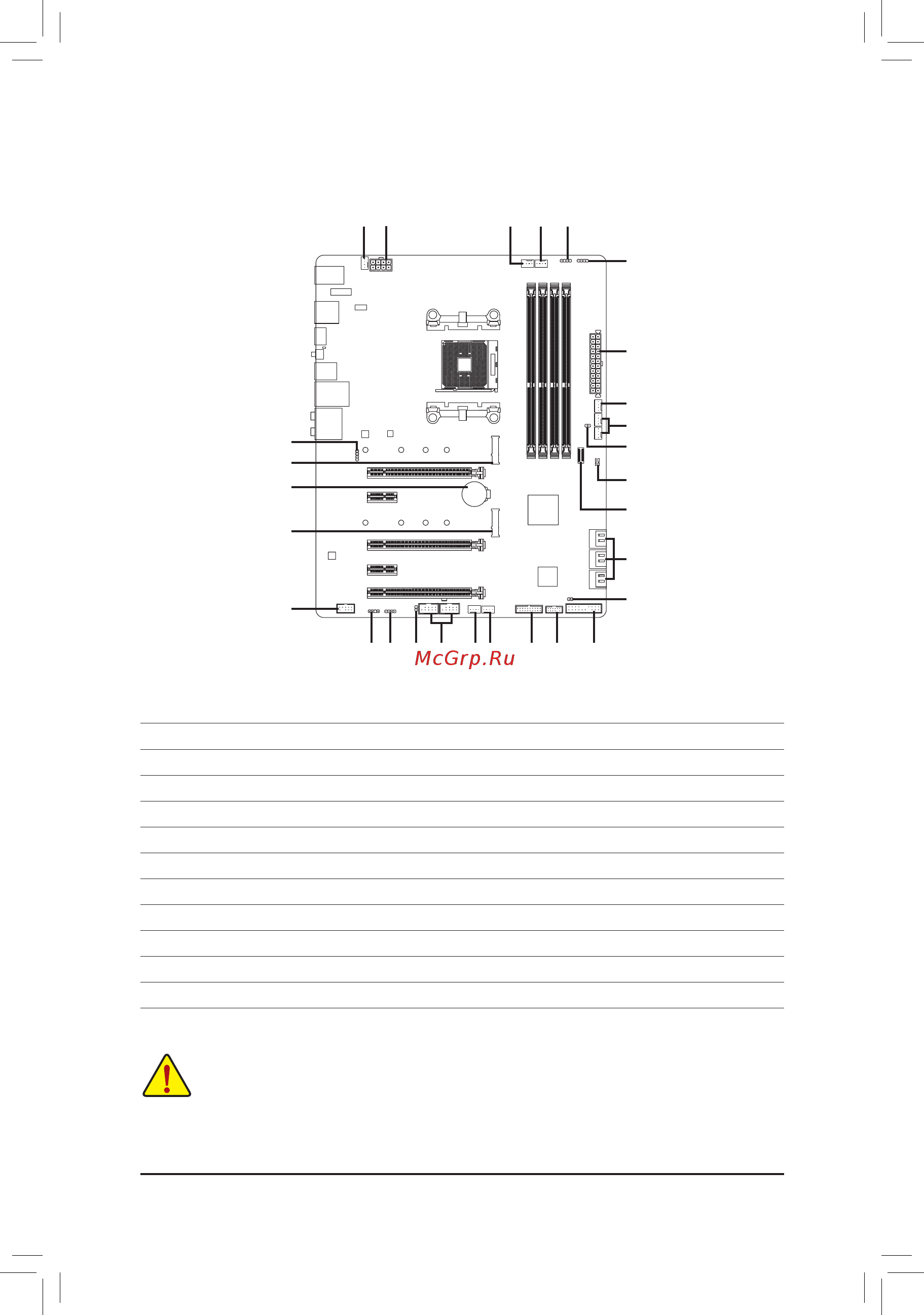

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3/4
5) SYS_FAN5_PUMP/SYS_FAN6_PUMP
6) CPU_OPT
7) LED_CPU
8) EC_TEMP1/EC_TEMP2
9) D_LED1/D_LED2
10) LED_C1/LED_C2
11) SATA3 0/1/2/3/4/5
12) M2A_CPU/M2B_SB
13) F_PANEL
14) F_ AUDIO
15) F_U32C
16) F_U32
17) F_USB1/F_USB2
18) TPM
19) CLR_CMOS
20) BAT
21) CPU/DRAM/VGA/BOOT
1
4
18
7
20
4
4
2
3
11
1617
12
13
12
6
10
9
9 810
14
5
5
8
19
21
15
- 14 -
