Gigabyte X399 AORUS XTREME (rev. 1.0) [2/116] Motherboard

Motherboard

X399 AORUS XTREME

Jul. 30, 2018

Motherboard

X399 AORUS XTREME

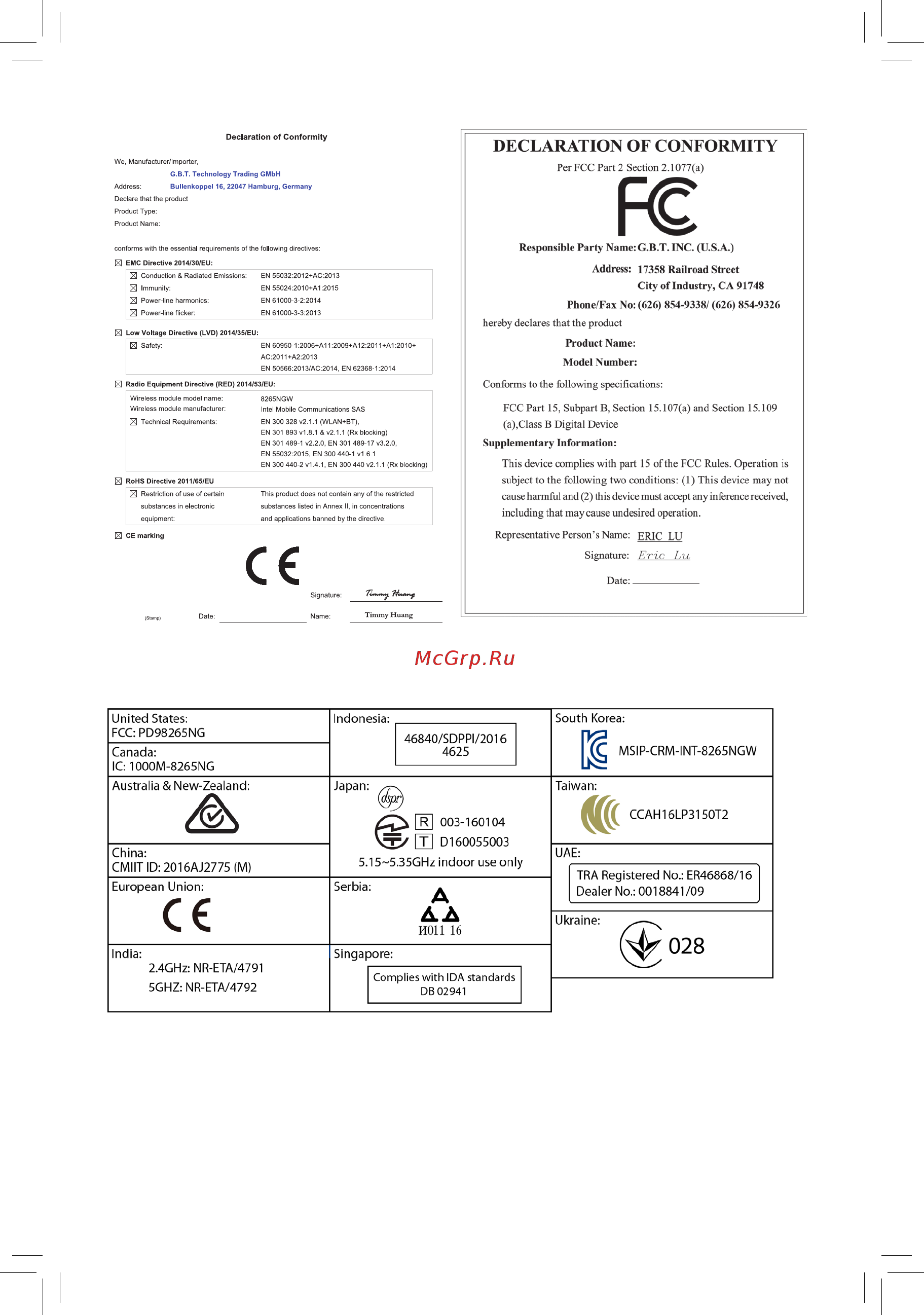

Wireless Module Country Approvals:

Содержание

Rev 1001 12me x39axtm 1001r 1
User s manual 1
X399 aorus xtreme 1
Jul 30 2018 2
Motherboard 2
Wireless module country approvals 2
X399 aorus xtreme 2
Copyright 3
Disclaimer 3
Documentation classifications 3
Identifying your motherboard revision 3
Box contents optional items x399 aorus xtreme motherboard layout chapter 1 hardware installation 4
Chapter 2 bios setup 7 4
Chapter 4 drivers installation 9 4
Chapter3configuringaraidset 1 4
Table of contents 4
1 bios update utilities 71 5
1 configuringaudioinputandoutput 97 5
2 app center 75 5
2 troubleshooting 103 5
3 debug led codes 106 5
Chapter 5 unique features 1 5
Chapter 6 appendix 7 5
Regulatory statements 110 contact us 115 5
Box contents 6
Optional items 6
Note for debug code information please refer to chapter 6 7
X399 aorus xtreme 7
X399 aorus xtreme motherboard layout 7
1 installation precautions 9
Chapter 1 hardware installation 9
2 product specifications 10
2 productspecifications 10
3 1 installing the cpu 13
3 installing the cpu and cpu cooler 13
3 2 installing the cpu cooler 16
17 hardware installation 17
4 1 4 channel memory configuration 17
4 1 4channelmemoryconfiguration 17
4 installing the memory 17
Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage 17
Channel a ddr4_1_1a ddr4_2_2a 17
Channel b ddr4_3_1b ddr4_4_2b 17
Channel c ddr4_5_1c ddr4_6_2c 17
Channel d ddr4_7_1d ddr4_8_2d 17
Ddr4_2_2a ddr4_4_2b ddr4_6_2c or ddr4_8_2d 17
Memory modules have a foolproof design a memory module can be installed in only one direction if you are unable to insert the memory switch the direction 17
Note when installing the memory make sure to begin with the second socket of each channel such as 17
Read the following guidelines before you begin to install the memory make sure that the motherboard supports the memory it is recommended that memory of the same capacity brand speed and chips be used go to gigabyte s website for the latest supported memory speeds and memory modules 17
Refer to the table below for memory installation according to the number of the memory modules you want to install 17
This motherboard supports 4 channel technology after the memory is installed the bios will automatically detectthespecificationsandcapacityofthememory theeightddr4memorysocketsaredividedintofour channels and each channel has two memory sockets as following 17
4 2 installing a memory 18
5 installing an expansion card 19
6 setting up amd crossfir 20
6 setting up amd crossfire nvidia sli configuration 20
A system requirements 20
B connecting the graphics cards 20
C configuringthegraphicscarddriver 20
Configuration 20
21 hardware installation 21
7 back panel connectors 21
After system restart go to bios setup to load factory defaults select load optimized defaults or 21
Always turn off your computer and unplug the power cord from the power outlet before using the clear cmos button 21
Clear cmos button 21
Do not use the clear cmos button when the system is on or the system may shutdown and data loss or damage may occur 21
Manuallyconfigurethebiossettings refertochapter2 biossetup forbiosconfigurations 21
Power reset button 21
Rj 45 lan port 21
Sma antenna connectors 2t2r 21
The gigabit ethernet lan port provides internet connection at up to 1 gbps data rate the following describes the states of the lan port leds 21
The gigabit ethernet lan port provides internet connection at up to 10 gbps data rate the following describes the states of the lan port leds 21
The power reset button allows users to quickly turn on off or reset the computer in an open case environment when they want to change hardware components or conduct hardware testing this button is a power button by default to change the button s default to reset function refer to chapter 2 bios setup power for more information 21
Theusb3 gen1portsupportstheusb3 gen1specificationandiscompatibletotheusb2 specification usethisportforusbdevices 21
Tighten the antenna cables to the antenna connectors and then move the antenna to a place where the signal is good 21
Usb 3 gen 1 port 21
Use this connector to connect an antenna 21
Usethisbuttontoclearthecmosvalues e g biosconfiguration andresetthecmosvaluestofactory defaults when needed 21
Center subwoofer speaker out 22
Line in side speaker out 22
Line out front speaker out 22
Mic in side speaker out 22
Optical s pdif out connector 22
Rear speaker out 22
Usb 3 gen 2 type a port red 22
Usb type 22
23 hardware installation 23
8 onboard leds and buttons 23
Backup bios boot from the backup bios 23
Bbios_led the backup bios is active 23
Bios led indicators 23
Bios switches and bios led indicators 23
Bios_sw 23
Cpu cpu status led dram memory status led vga graphics card status led boot operating system status led 23
Dual bios 23
Function the led indicator mbios_led bbios_led shows which bios is active 23
Main bios boot from the main bios 23
Mbios_led the main bios is active 23
Single bios 23
Status leds cpu dram vga boot 23
The bios switch bios_sw allows users to easily select a different bios for boot up or overclocking helping to reduce bios failure during overclocking the sb switch allows enabling or disabling of the dualbio 23
The status leds show whether the cpu memory graphics card and operating system are working properly after system power on if the cpu dram vga led is on that means the corresponding device is not working normally if the boot led is on that means you haven t entered the operating system yet 23
9 internal connectors 24
2 atx_12v_1 atx_12v_2 atx 2x4 12v power connectors and 2x12 main power connector 25
25 hardware installation 25
The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start to meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 25
With the use of the power connector the power supply can supply enough stable power to all the components onthemotherboard beforeconnectingthepowerconnector firstmakesurethepowersupplyisturned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation 25
4 cpu_fan sys_fan1 sys_fan3 sys_fan4 fan headers 26
Sys_fan5_pump sys_fan6_pump system fan water cooling pump headers 26
Cpu_opt water cooling cpu fan header 27
Ec_temp1 ec_temp2 temperature sensor headers 27
2 5v default 28
28 hardware installation 28
Connect one end of the digital led strip adapter cable to this header and the other end to your digital led strip there are 12v and 5v digital led strips be sure to verify the voltage requirements of your digital led strip and set the dled_v_sw1 and dled_v_sw2 jumpers accordingly the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 of the digital led strip header incorrect connection may lead to the damage of the led strip 28
D_led1 d_led2 digital led strip headers 28
Dled_v_sw1 dled_v_sw2 digital led strip power select jumpers 28
Pin no definition 1 v 2 d 3 no pin 4 g 28
The headers can be used to connect a standard 5050 digital led strip with maximum power rating of 2a 12v or 5v and maximum length of 5m or maximum number of 300 leds 28
The jumpers allow you to select the supply voltage of the d_led1 and d_led2 headers be sure to verify the voltage requirements of your digital led strip and set the correct voltage with this jumper before connection incorrect connection may lead to the damage of the led strip 28
29 hardware installation 29
Before installing the devices be sure to turn off the devices and your computer unplug the power cord from the power outlet to prevent damage to the devices 29
Connect one end of the rgb rgbw led strip extension cable to the header and the other end to your rgb rgbw led strip the black wire marked with a triangle on the plug of the extension cable must be connected to pin 1 12v of this header the 12v pin marked with an arrow on the other end of the extension cable must be lined up with the 12v of the led strip be careful with the connection orientation of the led strip incorrect connection may lead to the damage of the led strip if you are connecting a rgbw led strip 5 pin combine the twoplugsoftheextensioncabletogetherfirst ifyouareconnectinga rgb led strip 4 pin use only the 4 pin plug of the extension cable 29
For how to turn on off the lights of the led strip refer to the instructions chapter 5 unique features app center rgb fusion 29
Led_c1 led_c2 rgb rgbw led strip headers 29
Pin no definition 1 12v 2 g 3 r 4 b 5 w 29
Pin no definition 1 gnd 2 txp 3 txn 4 gnd 5 rxn 6 rxp 7 gnd 29
Sata3 0 1 2 3 4 5 sata 6gb s connectors 29
The headers can be used to connect a standard 5050 rgb rgbw led strip 12v g r b w with maximum power rating of 2a 12v and maximum length of 2m 29
The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device the amd chipset supports raid 0 raid 1 andraid10 refertochapter3 configuringaraidset forinstructionsonconfiguringaraidarray 29
30 hardware installation 30
Followthestepsbelowtocorrectlyinstallanm ssdinthem connector 30
M2m m2p m2q m socket 3 connectors 30
Note ifyouwanttoinstallthem ssdinthem2q connector usetheincluded2 mmhexwrenchto loosenthethreescrewsonthechipsetheatsink andthenremovetheheatsink afterinstallingthe m ssd replacetheheatsinkandsecureittothe originalholes 30
Step 1 locatethem connectorwhereyouwillinstallthe m ssdandusetheincluded2 mmhexwrench toloosenthescrewonthem heatsink besure tousethelongarmofthewrenchtoturnthescrew counterclockwise thenremovetheheatsink 30
Step 2 getascrewandastandofffromtheincluded m screwkit locatethepropermountinghole forthem ssdtobeinstalledandthentighten thestandofffirst insertthem ssdintothem connectoratanangle 30
Step 3 pressthem ssddownandthensecureitwiththe screw replacethem heatsinkandsecureittothe originalhole remembertoremovetheplasticfilm fromthebottomoftheheatsink 30
Them connectorssupportm satassdsorm pciessdsandsupportraidconfiguration please notethatanm pciessdcannotbeusedtocreatearaidseteitherwithanm satassdorasata harddrive tocreatearaidarraywithanm pciessd youmustsetuptheconfigurationinuefibios mode refertochapter3 configuringaraidset forinstructionsonconfiguringaraidarray 30
F_panel front panel header 31
32 hardware installation 32
F_audio front panel audio header 32
For information about connecting the s pdif digital audio cable carefully read the manual for your expansion for information about connecting the s pdif digital audio cable carefully read the manual for your expansion card 32
Pin no definition 1 5vdual 2 no pin 3 spdifo 4 gnd 32
Pin no definition 1 mic2_l 2 gnd 3 mic2_r 4 nc 5 line2_r 6 sense 7 gnd 8 no pin 9 line2_l 10 sense 32
Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer 32
Spdif_o s pdif out header 32
Thefrontpanelaudioheadersupportshighdefinitionaudio hd youmayconnectyourchassisfront panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 32
This header supports digital s pdif out and connects a s pdif digital audio cable provided by expansion cards for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards for example some graphics cards may require you to use a s pdif digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an hdmi display to the graphics card and have digital audio output from the hdmi display at the same time 32
33 hardware installation 33
F_usb30_1 f_usb30_2 usb 3 gen 1 headers 33
F_usb31c usb type 33
Header with usb 3 gen 2 support 33
Pin no definition pin no definition 1 vbus 11 d2 2 ssrx1 12 d2 3 ssrx1 13 gnd 4 gnd 14 sstx2 5 sstx1 15 sstx2 6 sstx1 16 gnd 7 gnd 17 ssrx2 8 d1 18 ssrx2 9 d1 19 vbus 10 nc 20 no pin 33
Pin no definition pin no definition 1 vbus 11 vbus 2 tx1 12 tx2 3 tx1 13 tx2 4 gnd 14 gnd 5 rx1 15 rx2 6 rx1 16 rx2 7 vbus 17 gnd 8 cc1 18 d 9 nc 19 d 10 nc 20 cc2 33
Prior to installing the usb front panel be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the usb front panel 33
Theheaderconformstousb3 gen2specificationandcanprovideoneusbport 33
Theheadersconformtousb3 gen1andusb2 specificationandeachheadercanprovidetwousb ports for purchasing the optional 3 front panel that provides two usb 3 gen 1 ports please contact the local dealer 33
34 hardware installation 34
Do not plug the ieee 1394 bracket 2x5 pin cable into the usb 2 1 header prior to installing the usb bracket be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the usb bracket 34
F_usb1 f_usb2 usb 2 1 headers 34
Lad0 2 vcc3 3 lad1 4 no pin 5 lad2 6 lclk 7 lad3 8 gnd 9 lframe 10 nc 11 serirq 12 lreset 34
Pin no definition 34
Pin no definition 1 power 5v 2 power 5v 3 usb dx 4 usb dy 5 usb dx 6 usb dy 7 gnd 8 gnd 9 no pin 10 nc 34
Theheadersconformtousb2 1 specification eachusbheadercanprovidetwousbportsviaan optional usb bracket for purchasing the optional usb bracket please contact the local dealer 34
Tpm trusted platform module header 34
You may connect a tpm trusted platform module to this header 34
35 hardware installation 35
After system restart go to bios setup to load factory defaults select load optimized defaults or 35
Always turn off your computer and unplug the power cord before replacing the battery replace the battery with an equivalent one damage to your devices may occur if the battery is replaced with an incorrect model 35
Always turn off your computer and unplug the power cord from the power outlet before clearing the cmos values 35
Bat battery 35
Clr_cmos clear cmos jumper 35
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain about the battery model 35
Manuallyconfigurethebiossettings refertochapter2 biossetup forbiosconfigurations 35
Open normal 35
Replace the battery 4 plug in the power cord and restart your computer 35
Short clear cmos values 35
Thebatteryprovidespowertokeepthevalues suchasbiosconfigurations date andtimeinformation in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost 35
Used batteries must be handled in accordance with local environmental regulations 35
Usethisjumpertoclearthebiosconfigurationandresetthecmosvaluestofactorydefaults toclear the cmos values use a metal object like a screwdriver to touch the two pins for a few seconds 35
When installing the battery note the orientation of the positive side and the negative side of the battery the positive side should face up 35
You may clear the cmos values by removing the battery 1 turn off your computer and unplug the power cord 2 gently remove the battery from the battery holder and wait for one minute or use a metal object like a screwdriver to touch the positive and negative terminals of the battery holder making them short for 5 seconds 35
Chapter 2 bios setup 37
1 startup screen 38
2 the main menu 39
Classic setup 39
Classic setup function keys 39
Sample bios version d3 39
B easy mode 40
3 m i t 41
Advanced frequency settings 41
Host clock value 41
Advanced cpu core settings 42
Amd cool quiet function 42
Core performance boost 42
Cpu clock ratio 42
Cpu clock ratio cpu frequency 42
Cpu frequency 42
Global c state control 42
Power supply idle control 42
Svm mode 42
Downcore control 43
Extremememoryprofile x m p 43
Memory frequency mhz 43
Opcache control 43
Smt mode 43
System memory multiplier 43
Advanced memory settings 44
Extremememoryprofile x m p 44
Memory timing mode 44
Profileddrvoltage 44
Standard timing control advanced timing control cad bus setup timing cad bus drivestrength databusconfiguration 44
System memory multiplier memory frequency mhz 44
Advanced voltage settings 45
Case open 46
Cpu vcore vcore soc cpu vdd18 dram channel a b voltage dram channel c d voltage ddrvpp a b ddrvpp c d 3 v 5v 5vsb 1 5v chipset voltage 12v vcore sio 46
Pc health status 46
Reset case open status 46
Fan control use temperature input 48
Fan pump control mode 48
Fan pump fail warning 48
Fan pump stop 48
Fan speed 48
Fan speed control 48
Flow rate 48
Monitor 48
Temperature 48
Temperature interval 48
Temperature warning 48
4 system 49
Access level 49
System date 49
System language 49
System time 49
5 bios 50
Boot option priorities 50
Bootup numlock state 50
Fast boot 50
Full screen logo show 50
Hard drive cd dvd rom drive floppy drive network device bbs priorities 50
Security option 50
Csm support 51
Lan pxe boot option rom 51
Network stack driver support 51
Ps2 devices support 51
Sata support 51
Storage boot option control 51
Usb support 51
Vga support 51
Administrator password 52
Ipseccertificate 52
Ipv4 http support 52
Ipv4 pxe support 52
Ipv6 http support 52
Ipv6 pxe support 52
Network stack 52
Other pci device rom priority 52
User password 52
6 peripherals 53
Amd cpu ftpm 53
Ehci hand off 53
Initial display output 53
Legacy usb support 53
Mass storage devices 53
Usb mass storage driver support 53
Xhci hand off 53
Above 4g decoding 54
Amd cbs 54
Hd audio controller 54
Intel r i210 gigabit network connection 54
Leds in sleep hibernation and soft off states 54
Trusted computing 54
7 chipset 55
Nvme raid mode 55
Pciex16_1 bandwidth 55
Pciex16_2 bandwidth 55
Pciex8_1 bandwidth 55
Pciex8_2 bandwidth 55
Sata mode 55
Sb clock spread spectrum 55
Chipset sata port 0 1 2 3 4 5 56
Chipset sata port enable 56
8 power 57
Ac back 57
Resume by alarm 57
Soft off by pwr bttn 57
Wake on lan 57
Cec 2019 ready 58
High precision event timer 58
Rear power button mode 58
9 save exit 59
Boot override 59
Exit without saving 59
Load optimized defaults 59
Loadprofiles 59
Save exit setup 59
Saveprofiles 59
1 configuring sata controllers 61
1 configuringsatacontrollers 61
A installing sata hard drive s in your computer 61
Before you begin 61
Chapter 3 configuring a raid set 61
Chapter3 configuringaraidset 61
Raid levels 61
Toconfiguresataharddrive s followthestepsbelow 61
B configuringsatacontrollermodeinbiossetup 62
C uefiraidconfiguration 63
2 installing the raid ahci driver and operating system 67
A installing windows 67
B rebuilding an array 68
1 drivers software 69
Chapter 4 drivers installation 69
2 application software 70
3 information 70
1 1 updating the bios with the q flash utility 71
1 bios update utilities 71
A before you begin 71
Chapter 5 unique features 71
B updating the bios 72
1 2 updating the bios with the bios utility 74
A before you begin 74
B using bios 74
C after updating the bios 74
2 app center 75
Running the app center 75
2 1 3d osd 76
The 3d osd interface 76
Using 3d osd 76
2 2 autogreen 77
The autogreen interface 77
2 3 cloud station 78
Before you begin 78
Homecloud 78
The homecloud interface 78
Using homecloud 79
Gigabyte remote 80
The gigabyte remote interface 80
Using gigabyte remote 80
Remote oc 81
The remote oc interface 81
Using remote oc 81
Hotspot 82
The hotspot interface 82
Using hotspot 82
2 4 easytune 83
Tabs information 83
The easytune interface 83
2 5 fast boot 84
The fast boot interface 84
Using fast boot 84
2 6 game boost 85
The game boost interface 85
Using game boost 85
2 7 rgb fusion 86
The rgb fusion interface 86
Using rgb fusion 86
2 8 smart timelock 88
The smart timelock interface 88
Using smart timelock 88
2 9 smart keyboard 89
The smart keyboard interface 89
Using smart keyboard 89
2 10 smart backup 90
Creating a backup 90
Recoveringafile 90
Saving the backup to a network location 90
Recovering your system with smart backup 91
2 11 smart hud 92
The smart hud interface 92
Using smart hud 92
2 12 system information viewer 93
Tabs information 93
The system information viewer interface 93
2 13 smart survey 94
The smart survey interface 94
Using smart survey 94
2 14 usb blocker 95
The usb blocker interface 95
Using usb blocker 95
2 15 v tuner 96
The v tuner interface 96
Using v tuner 96
1 1 configuring 2 4 5 7 channel audio 97
1 1 configuring2 4 5 7 channelaudio 97
1 configuring audio input and output 97
1 configuringaudioinputandoutput 97
A configuring speakers 97
Chapter 6 appendix 97
B configuring sound effect 98
C enabling smart headphone amp 98
1 2 configuring s pdif out 99
1 2 configurings pdifout 99
Configuring the headphone 99
1 3 configuring microphone recording 100
1 3 configuringmicrophonerecording 100
Enabling stereo mix 101
1 4 using the voice recorder 102
A recording audio 102
B playing the recorded sound 102
103 appendix 103
2 1 frequently asked questions 103
2 troubleshooting 103
To read more faqs for your motherboard please go to the support faq page on gigabyte s website 103
2 2 troubleshooting procedure 104
Appendix 104 104
If you encounter any troubles during system startup follow the troubleshooting procedure below to solve the problem 104
105 appendix 105
If the procedure above is unable to solve your problem contact the place of purchase or local dealer for help or go to the support technical support page to submit your question our customer service staff will reply you as soon as possible 105
3 debug led codes 106
Regular boot 106
Recovery 108
S3 resume 108
Our commitment to preserving the environment 110
Regulatory notices 110
Regulatory statements 110
Restriction of hazardous substances rohs directive statement 110
Waste electrical electronic equipment weee directive statement 110
Weee symbol statement 110
Caution 111
Fcc notice u s a only 111
Canada industry canada ic 112
European community radio equipment directive red compliance statement 113
Japan wireless statement 113
Korea kcc ncc wireless statement 113
Taiwan ncc wireless statements 無線設備警告聲明 113
115 appendix 115
Contact us 115
Appendix 116 116
Gigabyte esupport 116
To submit a technical or non technical sales marketing question please link to https esupport gigabyte com 116

Gigabyte X399 AORUS XTREME (rev. 1.0) [2/116] Motherboard

Содержание

Похожие устройства
