Расширенная инструкция Страница: 8

EXTECH EX650 [8/35] 3 4 5 6

EX65x‐en‐GB_V1.67/16

DisplayIconDescriptionsforEX655



1234 5 6

12 13 14 15 16 17



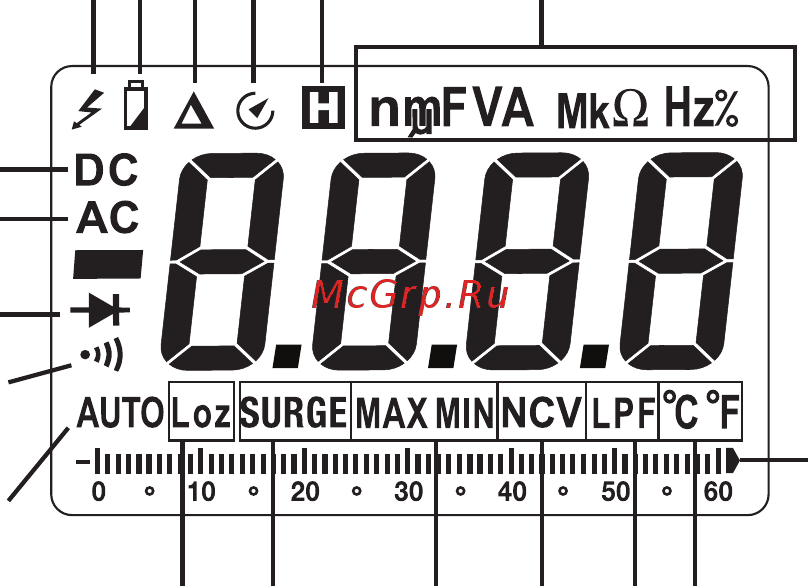

Fig3‐3EX655METERDISPLAY



1. Highvoltage

2. Batterystatus

3. Relativemode

4. Autopoweroff

5. Datahold

6. Unitsofmeasure

7. DirectCurrent

8. AlternatingCurrent

9. Diode

10. Continuity

11. Automaticrange

12. LowImpedancemode(LoZ)

13. InrushCurrent(Surge)

14. MaximumandMinimummemory

15. Non‐Contact

VoltageDetector

16. LowPassFilter(LPF)

17. Temperatureunits

18. Bargraph
