Model UT233: OPERATING MANUAL

F. Frequency Hz (main display) + AC Voltage (left

secondary display) + AC Current (right secondary

display) Measurement

Warning

To avoid damages to the Meter or harms to you, do

you measure higher than AC voltage 600V rms and

AC current 1000A rms.

Frequency Measurement only measures the

frequency of voltage signal not he frequency of

current signal.

To test for Frequency Hz (main display) + AC Voltage

(left secondary display) + AC Current (right secondary

display), connect the Meter as follows:

Press the MENU to select Frequency Hz (main

display) + AC Voltage (left secondary display) + AC

Current (right secondary display) range.

Press the lever to open the transformer jaw, and

clamp them to the corrresponding phase of tested

conductor. If user needs to mesaure any phase of

the 3 phase, then clamp them to that phase’s

conductor.

The connecting method of 3 phases 4 wires, 3

phases 3 wires or single phase 2 wires, see figure

4, 5 and 6

When measuring 3 phase 4 wires: (see figure 26,

27, 28)

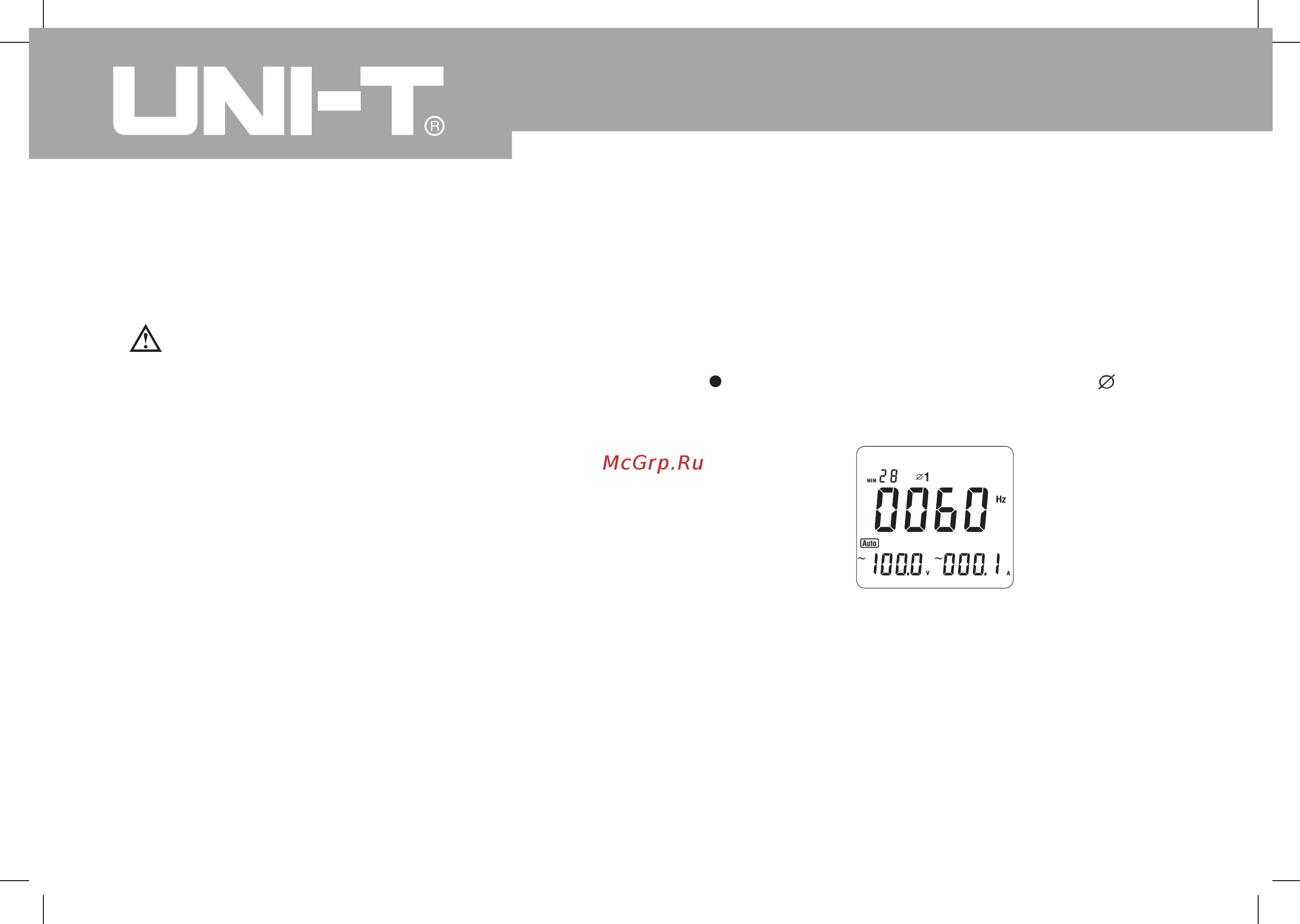

Press SELECT to choose the first phase 1, see

figure 26.

Figure 26
