METER DESCRIPTION

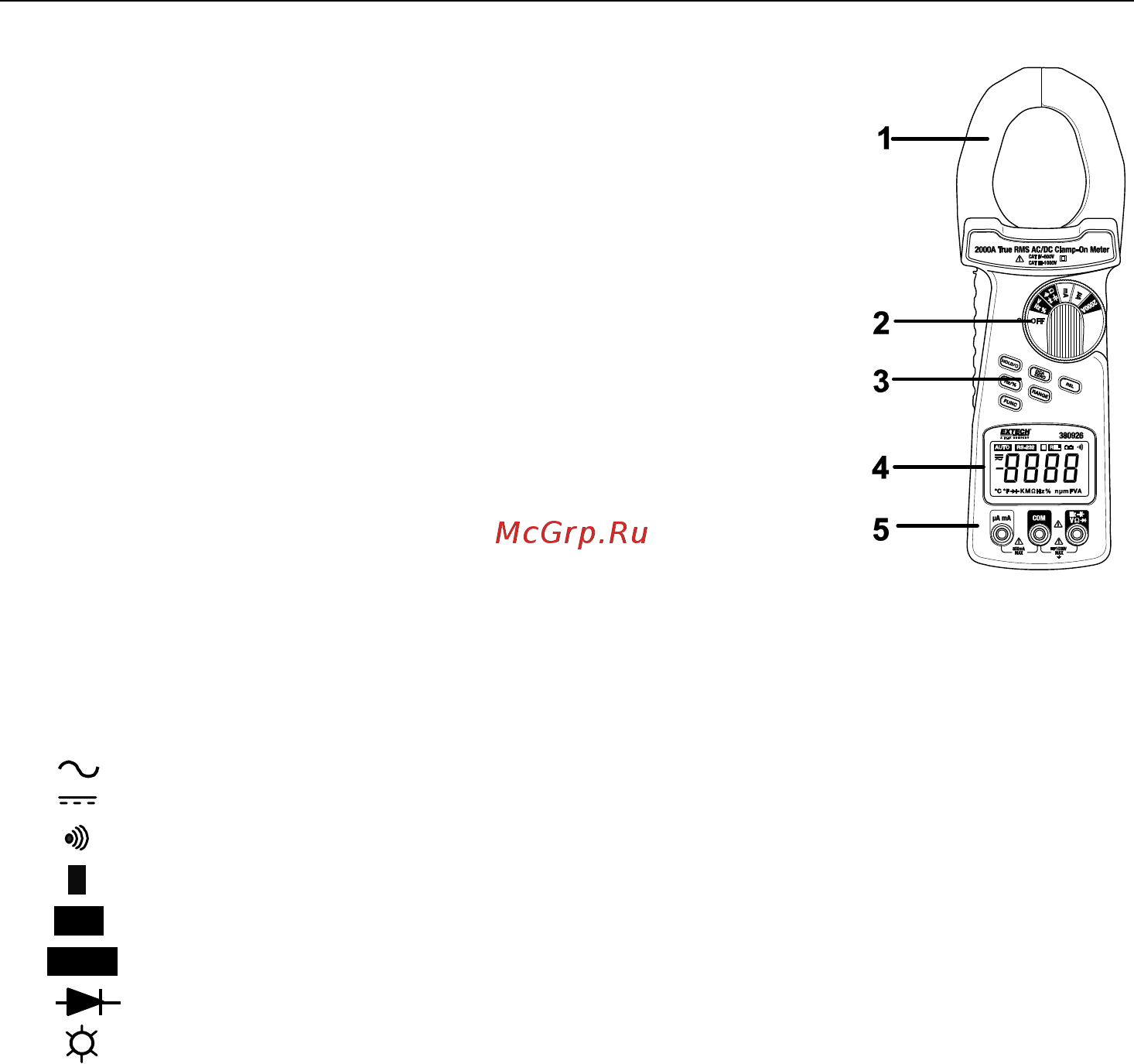

Front panel

1. Current Sense Jaws

2. Function switch

3. Keypad

4. LCD display

5. Input jacks

Note: The tilt stand and battery compartment door are

located on the rear of the meter.

Symbols

AC current or Voltage

DC current or Voltage

Continuity

H Display hold

REL Relative

AUTO Auto range

Diode

Display Backlight

Units

mV, V millivolt, volt (voltage)

Ω, kΩ, MΩ ohm, kilohm, megohm (resistance)

% percent (duty cycle)

μA, mA, A microamps, milliamps, amps (current)

Hz, kHz hertz, kilohertz (frequency)

nF, μF nanofarad, microfarad (capacitance)
