Technical Data

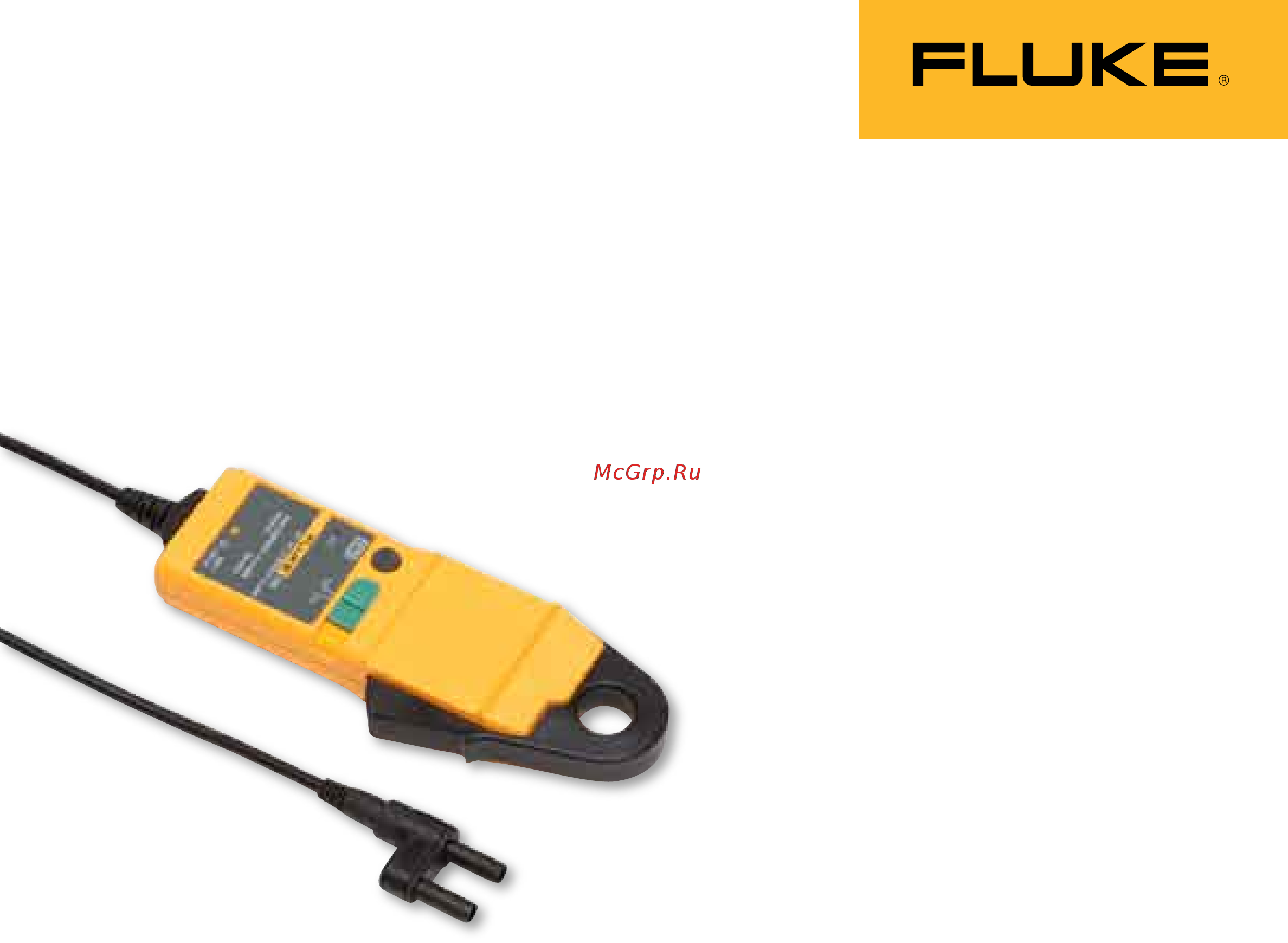

Fluke i30

AC/DC Current Clamp

Electrical specifications

Specified current range: 30 mA to 30 A DC,

30 mA to 20 A AC rms

Usable current range: 5 mA to 30 A DC,

30 mA to 20 A AC rms

Crest factor: 1.4

Output sensitivity: 100 mV/A

Accuracy (at +25 °C): ± 1 % of reading ± 2 mA

Resolution: ± 1 mA

Load impedance: > 10 k Ohms and ≤ 100 pF

Conductor position sensitivity: ± 1 % relative to

center reading

Frequency range: DC to 20 kHz (- 0.5 dB)

Temperature coefficient: ± 0.01 % of reading/°C

Power supply: 9 V Alkaline, MN1604/PP3,

30 hours, low battery indicator

Working voltage (see Safety Standards section):

300 V ac rms or dc

The i30 current clamp is based

on Hall effect technology for use

in measurement of both dc and

ac current. The i30 may be used

in conjunction with multimeters,

recorders and other suitable

recording instruments for accurate

non-intrusive current measurement.

General specifications

Maximum conductor size: 19 mm (.748 in)

diameter

Output connection: 4 mm (.157 in) safety

connector

Output zero: Manual adjust via thumbwheel

Cable length: 1.5 m (4.91 ft)

Operating temperature range: 0 °C to +50 °C

(-32 °F to 122 °F)

Storage temperature range (with battery

removed): -20 °C to +85 °C (-4 °F to 185 °F)

Operating humidity: 15 % to 85 %

(non-condensing)

Weight: 250 g (.55 lb)
