Gigabyte Z370M D3H (rev. 1.0) [31/48] 5 peripherals

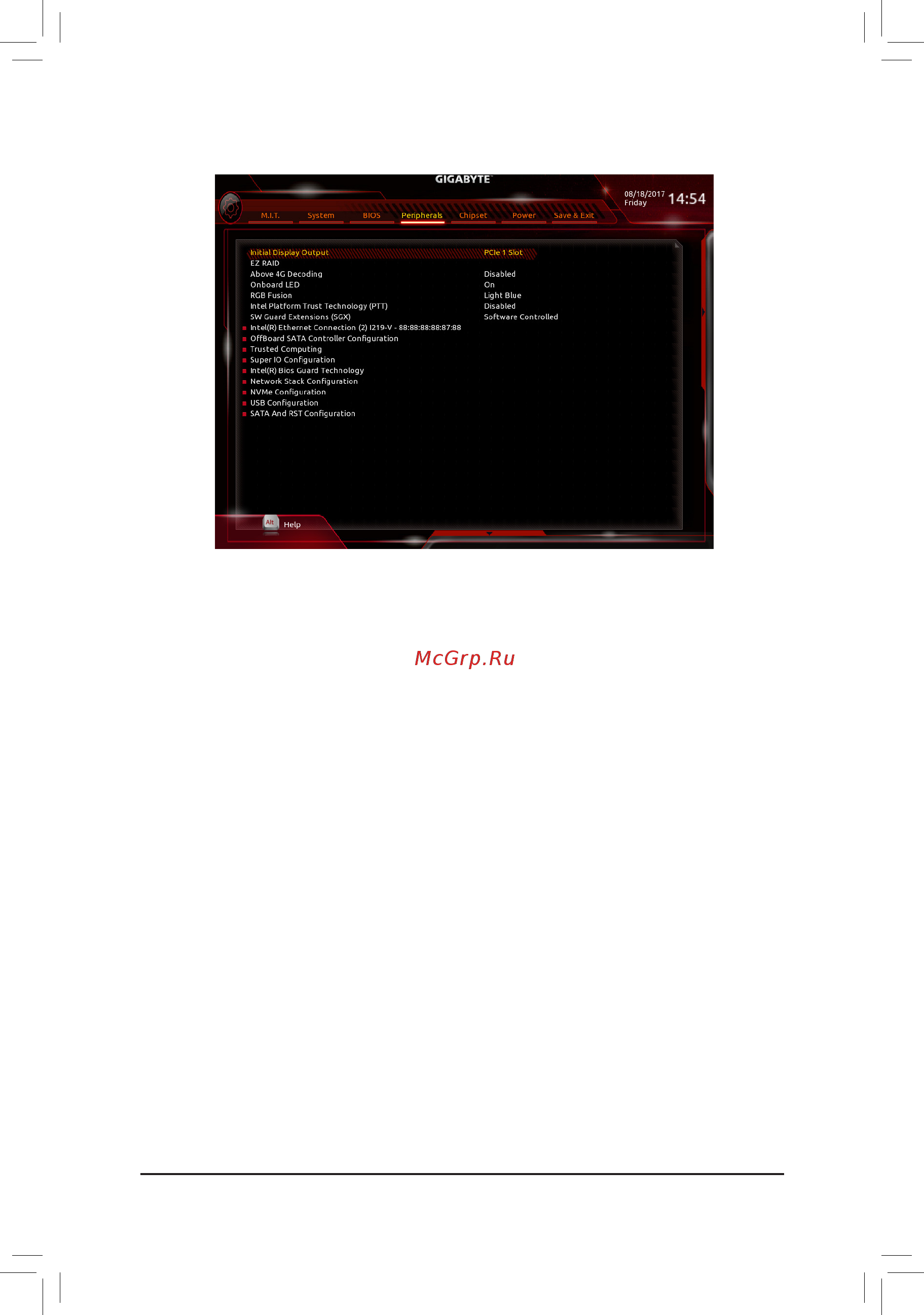

2-5 Peripherals

& Initial Display Output

 SpeciestherstinitiationofthemonitordisplayfromtheinstalledPCIExpressgraphicscardortheonboard

graphics.

IGFX   Setstheonboardgraphicsastherstdisplay.

PCIe1Slot SetsthegraphicscardonthePCIEX16slotastherstdisplay.(Default)

PCIe2Slot SetsthegraphicscardonthePCIEX4slotastherstdisplay.

& EZRAID

 AllowsyoutoquicklysetupaRAIDarray.RefertoChapter3,"ConguringaRAIDSet,"forinstructions

onconguringaRAIDarray.

& Above4GDecoding

Enables or disables 64-bit capable devices to be decoded in above 4 GB address space (only if your system

supports 64-bit PCI decoding). Set to Enabled if more than one advanced graphics card are installed and

their drivers are not able to be launched when entering the operating system (because of the limited 4 GB

memory address space). (Default: Disabled)

& OnboardLED

Allows you to set the lighting mode for the onboard LEDs.

On Enables this function. (Default)

Off Disables this function.

Pulse Mode All LEDs simultaneously fade in and fade out.

& RGBFusion(LEDstrip)

Allows you to set the display color of the external LED strip.

& IntelPlatformTrustTechnology(PTT)

Enables or disables Intel

PTT Technology. (Default: Disabled)

& SWGuardExtensions(SGX)

Enables or disables the Intel

Software Guard Extensions technology. This feature allows legal software

to operate in a safe environment and protects the software against attacks from malicious software. The

Software Controlled option allows you to enable or disable this feature with an Intel-provided application.

(Default: Software Controlled)

- 31 -
