Introduction

Congratulations on your purchase of Extech’s Insulation Tester/Megohmmeter. The Model 380260

provides three test ranges plus continuity and AC/DC voltage measurement. A handy test lock feature

and a data hold function are also included. This professional meter, with proper care, will provide years

of reliable service.

Safety

1. Circuits under test must be de-energized and isolated before connections are made (except for

voltage measurements).

2. Circuit connections must not be touched during a test. Use extreme caution when working near

bare conductors and bus bars. Accidental contact with conductors could result in electrical

shock.

3. Use caution when working near voltages above 60VDC or 30VACrms.

4. After insulation tests, capacitors must be discharged.

5. Test leads (including alligator clips) must be in good working order, clean and without broken

or cracked insulation.

6. When servicing, use only specified replacement parts.

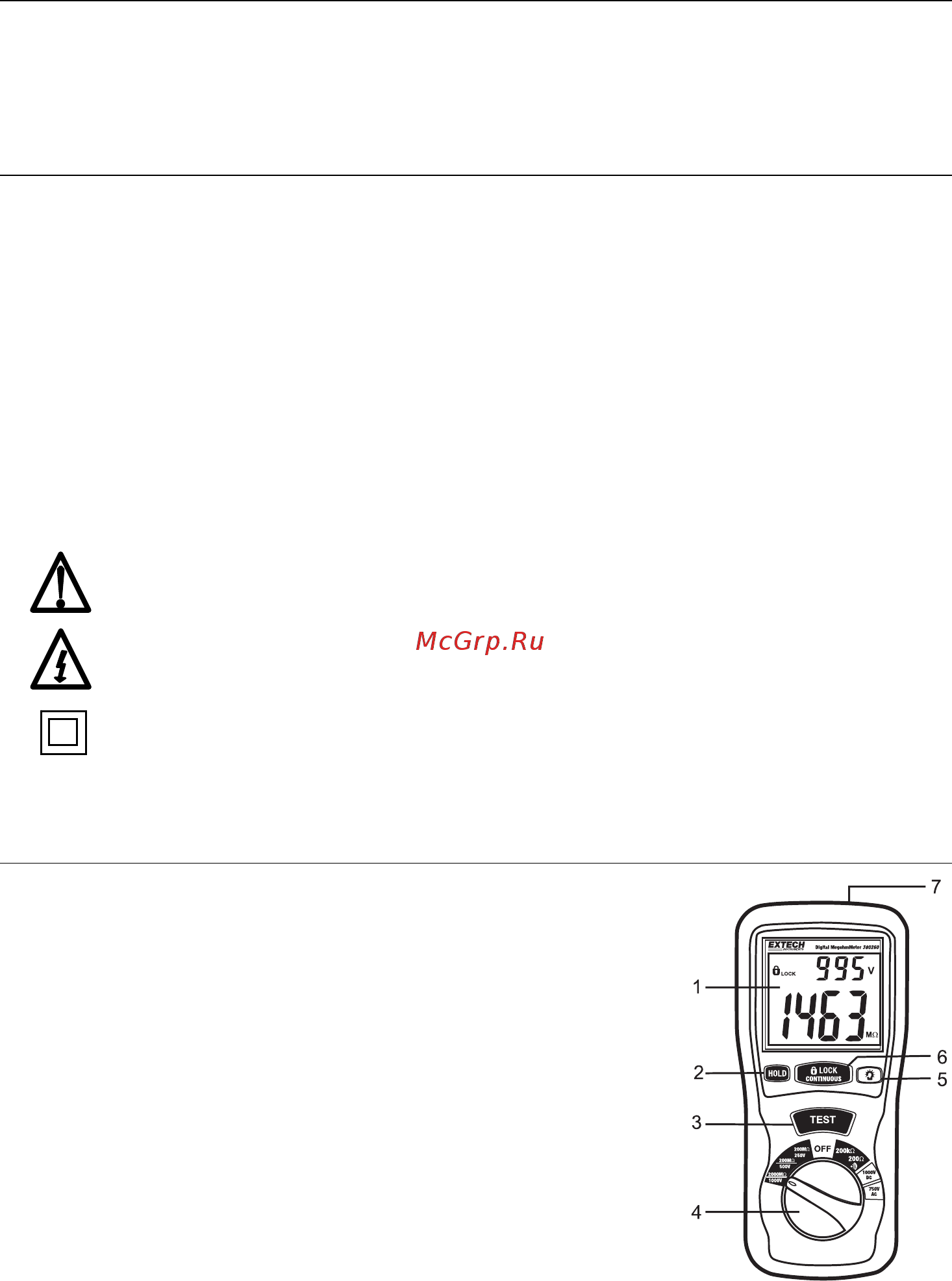

International Safety Symbols

Caution, refer to this manual before using this meter

Dangerous Voltages

Meter is protected throughout by double or reinforced insulation

Meter Description

1. LCD Display

2. Hold Button

3. Test Button

4. Rotary Switch

5. Backlight Button

6. Lock Button

7. Input Terminals
