Hardware Installation

Use extreme care when removing the CPU cooler because the thermal grease/tape between the CPU

cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.

1-3-2 Installing the CPU Cooler

RefertothestepsbelowtocorrectlyinstalltheCPUcooleronthemotherboard.(Actualinstallationprocessmay

differdependingtheCPUcoolertobeused.Refertotheuser'smanualforyourCPUcooler.)

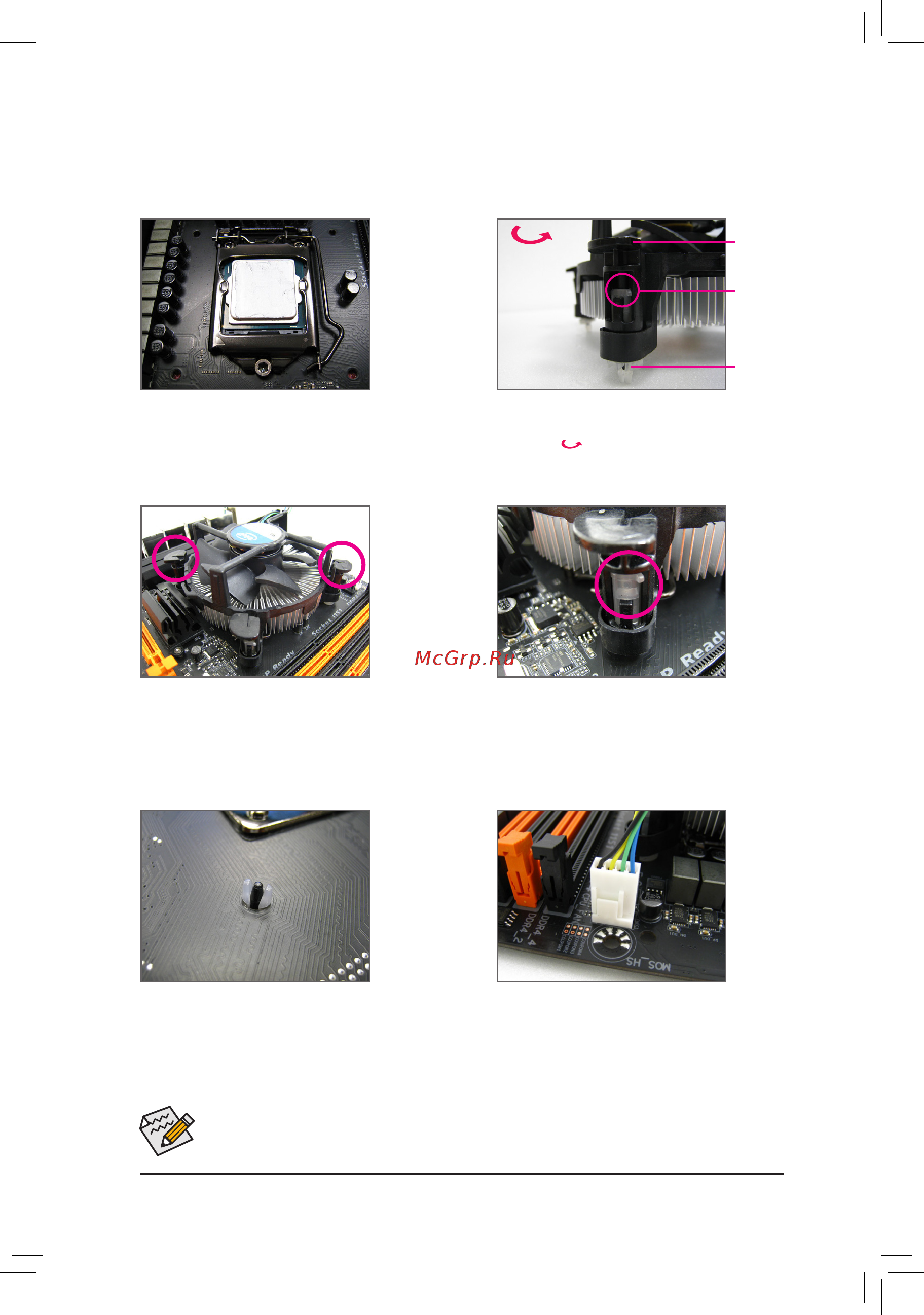

Step 5:

After the installation, check the back of the moth-

erboard. If the push pin is inserted as the picture

above shows, the installation is complete.

Step 6:

Finally, attach the power connector of the CPU

coolertotheCPUfanheader(CPU_FAN)onthe

motherboard.

Step 1:

Apply an even and thin layer of thermal grease on

the surface of the installed CPU.

Step 2:

Before installing the cooler, note the direction of the

arrow sign on the male push pin. (Turning the

push pin along the direction of arrow is to remove

thecooler,onthecontrary,istoinstall.)

Step 3:

Place the cooler atop the CPU, aligning the four

push pins through the pin holes on the mother-

board. Push down on the push pins diagonally.

Step 4:

You should hear a "click" when pushing down each

push pin. Check that the Male and Female push

pins are joined closely.

(RefertoyourCPUcoolerinstallationmanualfor

instructionsoninstallingthecooler.)
