Gigabyte GA-Z170X-Gaming GT (rev. 1.0) [43/132] 3 m i t

BIOS Setup

- 43 -

2-3 M.I.T.

Whether the system will work stably with the overclock/overvoltage settings you made is dependent

onyouroverallsystemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamage

to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced

users only and we recommend you not to alter the default settings to prevent system instability or

other unexpected results. (Inadequately altering the settings may result in system's failure to boot. If

thisoccurs,cleartheCMOSvaluesandresettheboardtodefaultvalues.)

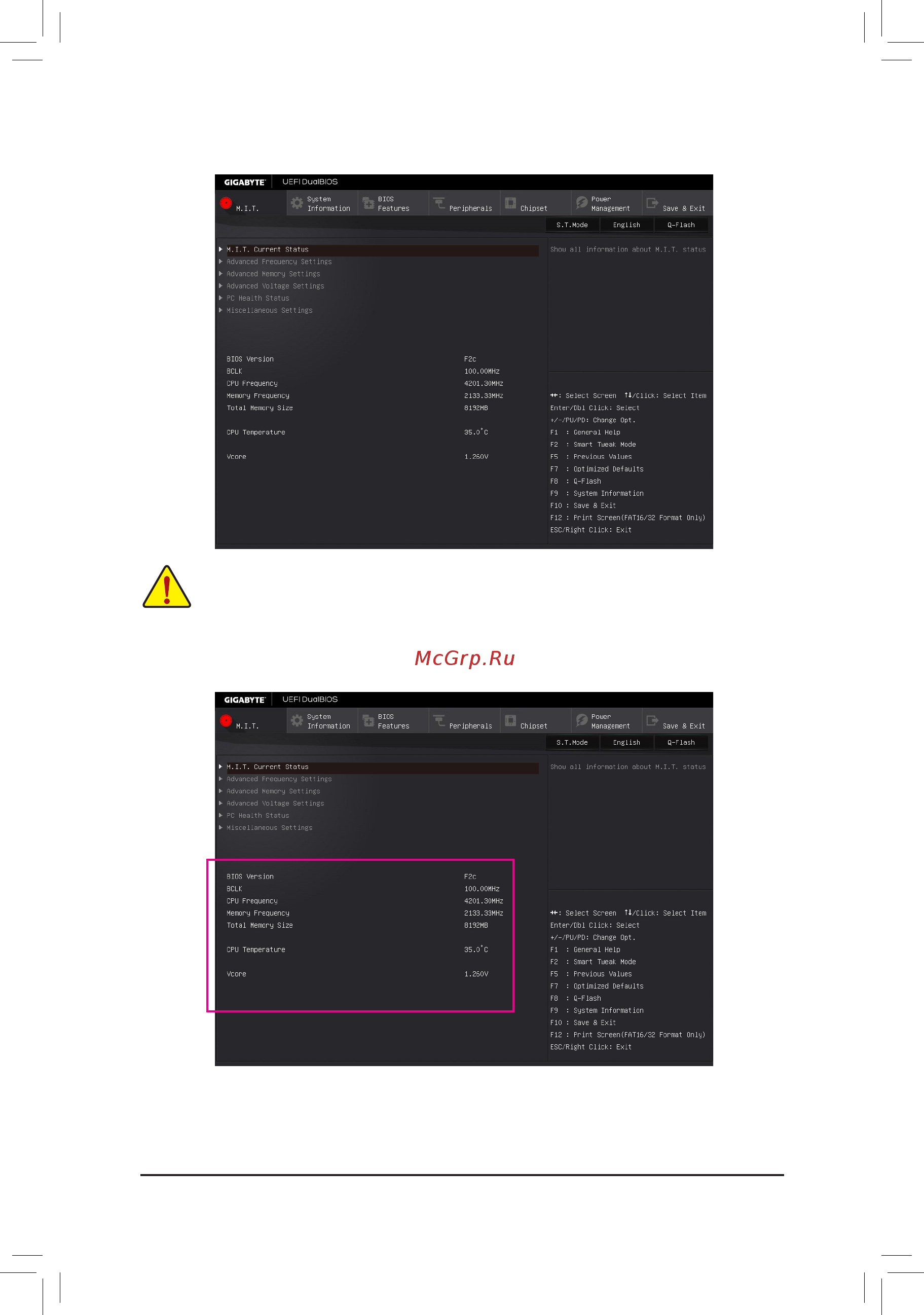

This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,

total memory size, CPU temperature and CPU voltage, etc.
