Unique Features
5-2-5 Cloud Station
GIGABYTE Cloud Station (Server) is composed of HomeCloud, GIGABYTE Remote, Remote OC, and HotSpot,
which allow your smart phone, tablet device, and remote computer to communicate, share resources, and control
thehostcomputerviawirelessconnection.CloudStationallowsyourcomputertoshareleswithanother
computer that has Cloud Station (Server) installed.
Before You Begin:
• To use HomeCloud, GIGABYTE Remote, and Remote OC, you must install GIGABYTE Cloud Station on
your smart phone/tablet device. (For Android systems, please download the app from Google Play; for iOS
systems, please download it from App Store.)
(Note 1)
• ToshareHomeCloudlesbetweencomputers,youneedtoinstallCloudStation(Server)onthehostcomputer
and Cloud Station on the remote computer.
• Your smart phone/tablet device must have Android 4.0/iOS 6.0 or above version.
• ThersttimeyouuseHomeCloud,GIGABYTERemote,andRemoteOC,youmustsigninwithyourGoogle/
Facebook/Windows Live account. Be sure to use the same account to sign in on your smart phone/tablet
device and computers.
HomeCloud
HomeCloudallowsyoutoupload/download/backuples
(Note 2)
from your smart phone/tablet device/computer
to the host computer.

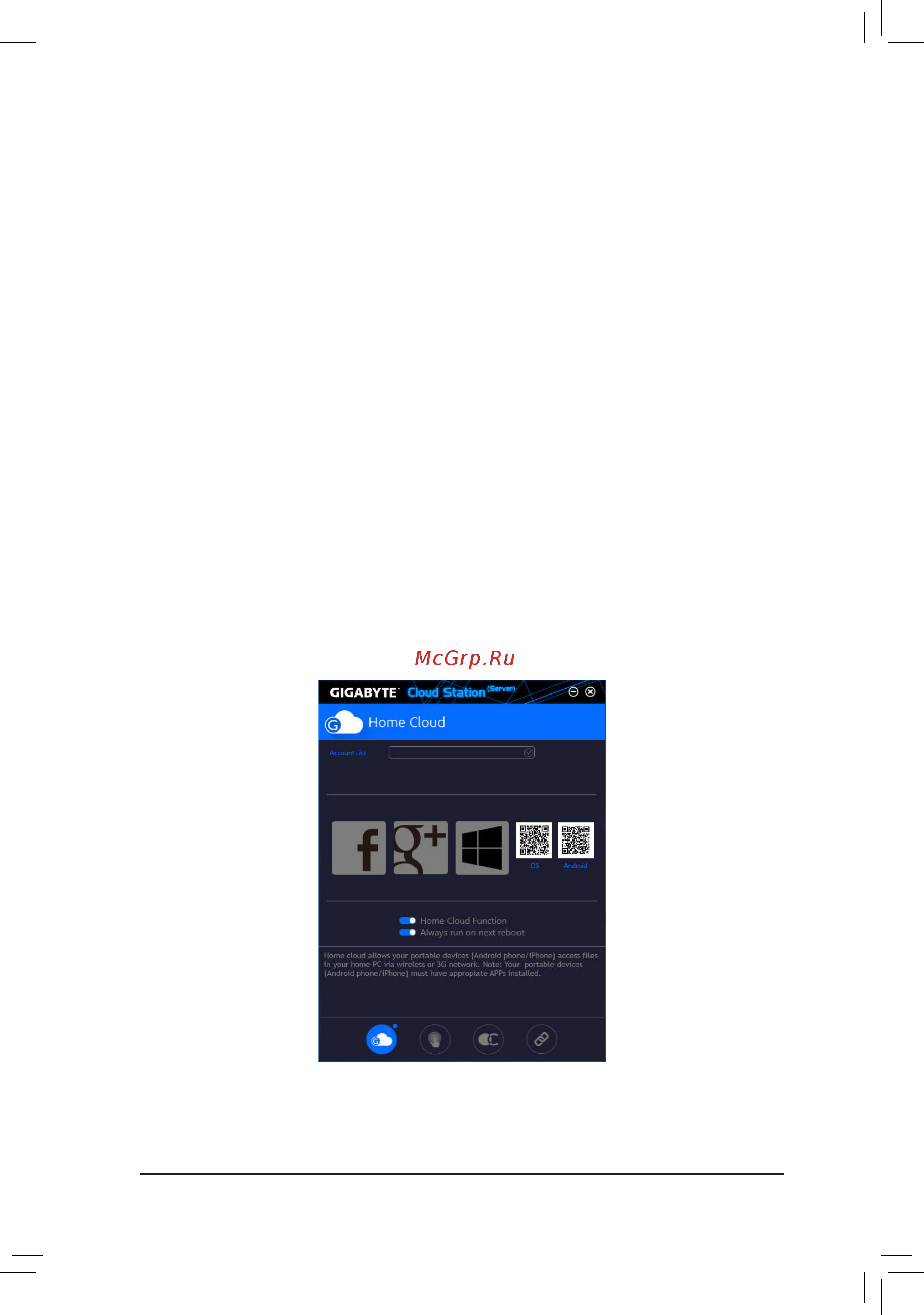

The HomeCloud Interface
Cloud Station (Server):
(Note 1) You can use your smart phone/tablet device to scan the QR code on the HomeCloud UI to link to the
download page of the GIGABYTE Cloud Station on App Store or Google Play.
(Note2) ForiOSsystems,theletypesarelimitedtoimage/videoles.
