Gigabyte GA-A320M-S2H (rev. 2.0) — обзор подключения ATX 12V и основных разъемов питания [13/40]
Превью страниц
Страница 13 /
40
![Gigabyte GA-A320M-S2H (rev. 2.0) [13/40] To meet expansion requirements it is recommended that a power supply that can withstand high powerconsumptionbeused 500worgreater ifapowersupplyisusedthatdoesnotprovidethe required power the result can lead to an unstable or unbootable system](/views2/1669292/page13/bgd.png)
DEBUG
PORT
G.QBOFM
131
2412
ATX

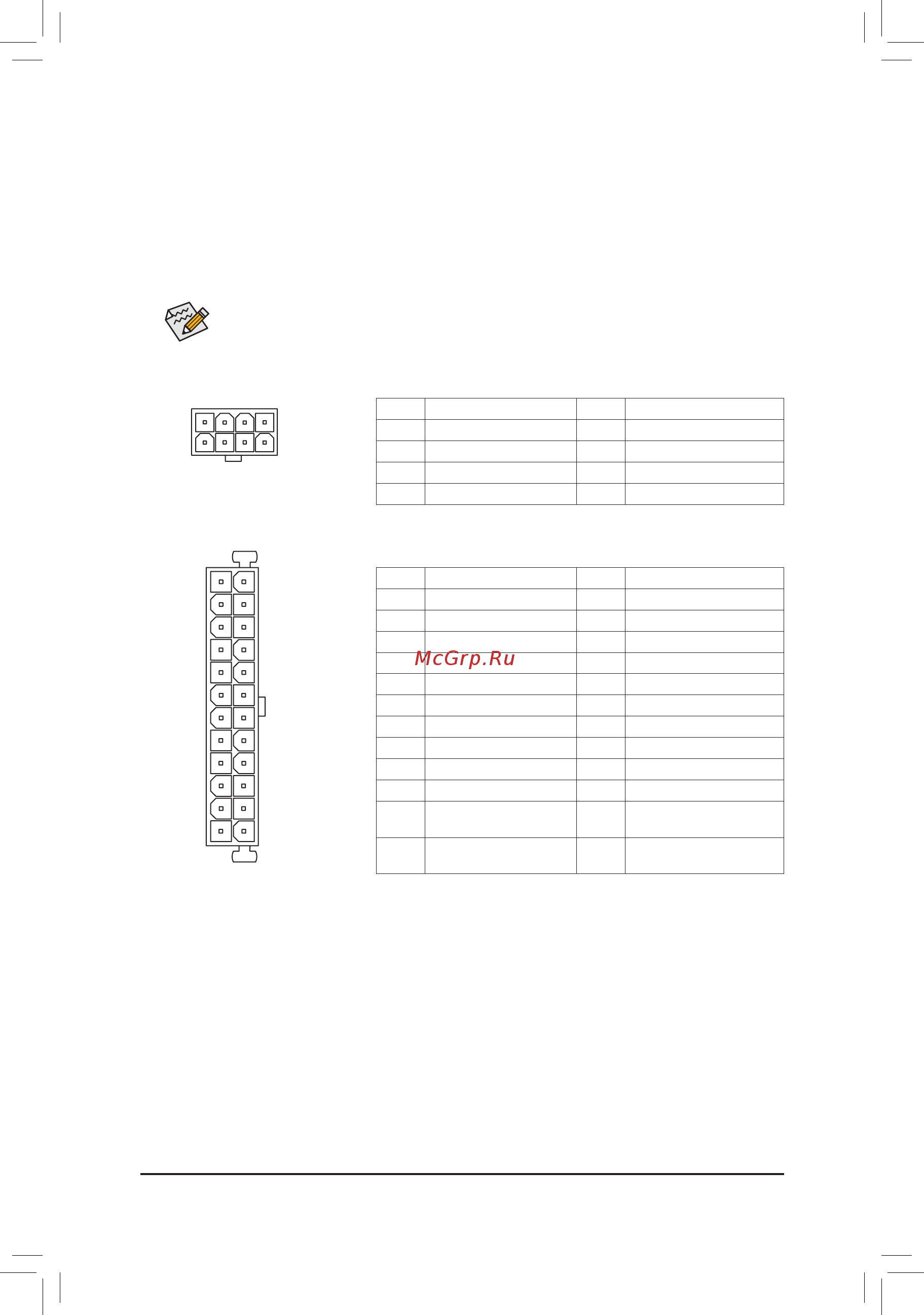

1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the components
onthemotherboard.Beforeconnectingthepowerconnector,rstmakesurethepowersupplyisturned
off and all devices are properly installed. The power connector possesses a foolproof design. Connect the
power supply cable to the power connector in the correct orientation.
The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected,
the computer will not start.
To meet expansion requirements, it is recommended that a power supply that can withstand high
powerconsumptionbeused(500Worgreater).Ifapowersupplyisusedthatdoesnotprovidethe
required power, the result can lead to an unstable or unbootable system.
ATX:
Pin No. Denition Pin No. Denition
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 +5V 16
PS_ON(softOn/Off)
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power Good 20 NC
9
5VSB(standby+5V) 21 +5V
10 +12V 22 +5V
11 +12V (Only for 2x12-pin
ATX)
23
+5V(Onlyfor2x12-pinATX)
12 3.3V (Only for 2x12-pin
ATX)
24 GND(Onlyfor2x12-pinATX)
ATX_12V:
Pin No. Denition Pin No. Denition
1
GND(Onlyfor2x4-pin12V) 5 +12V(Onlyfor2x4-pin12V)
2 GND(Onlyfor2x4-pin12V) 6 +12V(Onlyfor2x4-pin12V)
3 GND 7 +12V
4 GND 8 +12V
ATX_12V
DEBUG
PORT
G.QBOFM
58
14
- 13 -
